4.11.4 前轮前束的调整
Adjustment of the toe-in of the front wheel
4.11.3.2 后轮距的调整(13.6—38 轮胎)
Adjustment of rear wheel track ( tyre13.6-38)
常用轮距为 1620mm，通过辐板、轮毂和轮辋的不同连接位置可获得如图所示的 7 种轮距位置，在
每种位置通过调整轮毂和轮毂安装座可以得到 7 种轮距调节范围。
The normal wheel track is 1620mm, 7 kinds of wheel track as shown in Figure 2-36 are available by
changing the positions of radials, wheel hub and rim. At each position, 7 kinds of adjusting ranges of the
wheel track are available by adjusting the wheel hub and its mounting seat.

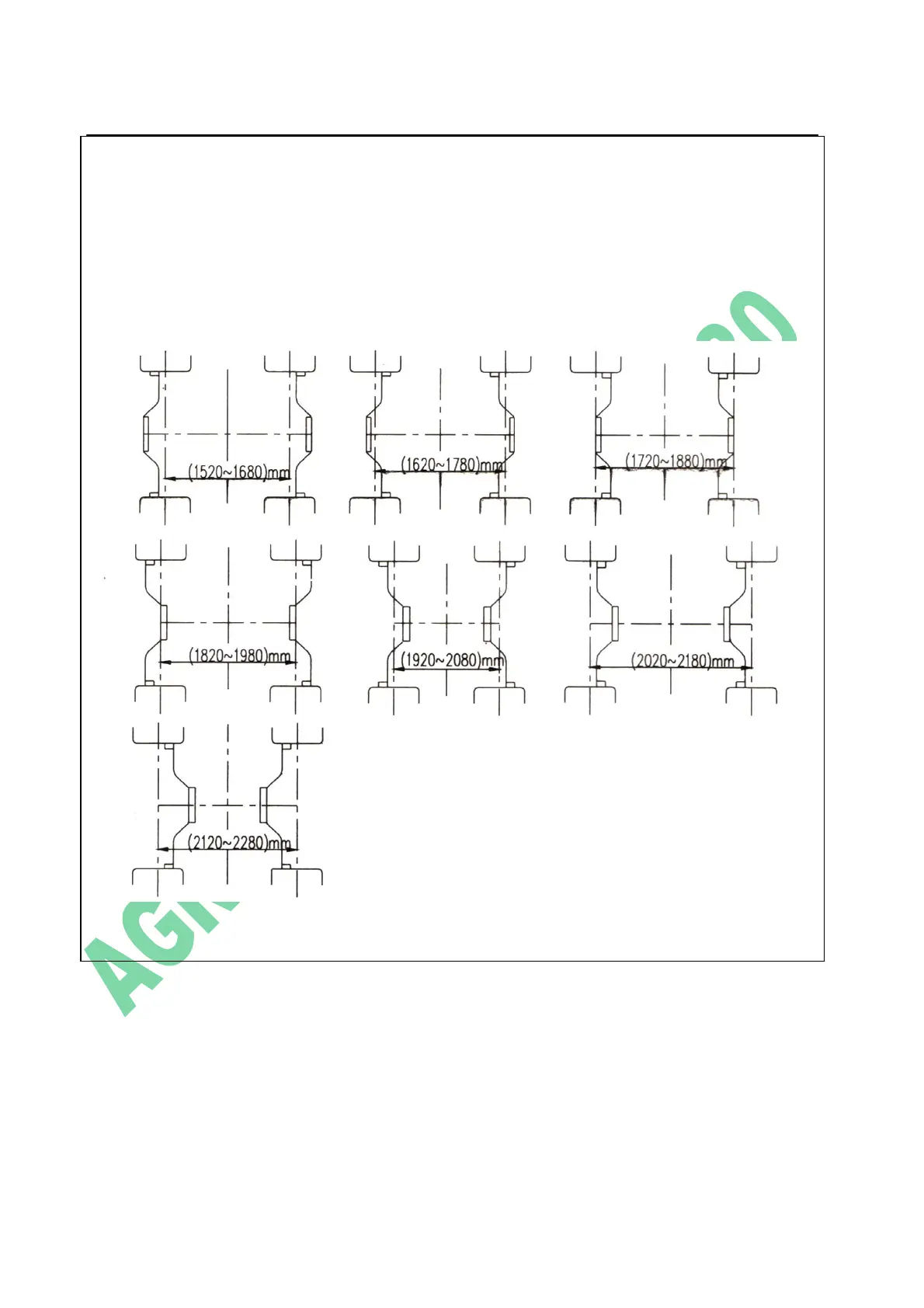

图 4-21 拖拉机后轮距的调整（单位:毫米)
Fig. 4-21Adjustment of the front wheel track of the tractor( tyre13.6-38 ) ( unit: mm )
