操作说明
Operator Instruction
四轮驱动型：通过改变辐板和轮辋的连接位置，可得到 6 种轮距，即下图所示的 1610mm、1710mm、
1750mm、1810mm、1850mm、1970mm 在每种轮距的辐板和轮辋的状态下在辐板和前桥之间加装
驱动桥连接套，可使每种轮距增加 270mm 从而获得 1880mm、1980mm、2020mm、2080mm、2120mm、
2240mm 六种前轮轮距。
Four-wheel drive model: 6 kinds of wheel track are available by changing the connecting positions of the
radials and rim, as shown in Figure 2-35:1610mm, 1710mm, 1750mm, 1810mm, 1850mm and 1970mm.
Under the circumstance of each kind of wheel track, adding the joint sleeve of the drive axle between the
radials and the front axle, that will make each kind of wheel track increase by 270mm to 1880mm,
1980mm, 2020mm, 2080mm, 2120mm and 2240mm.

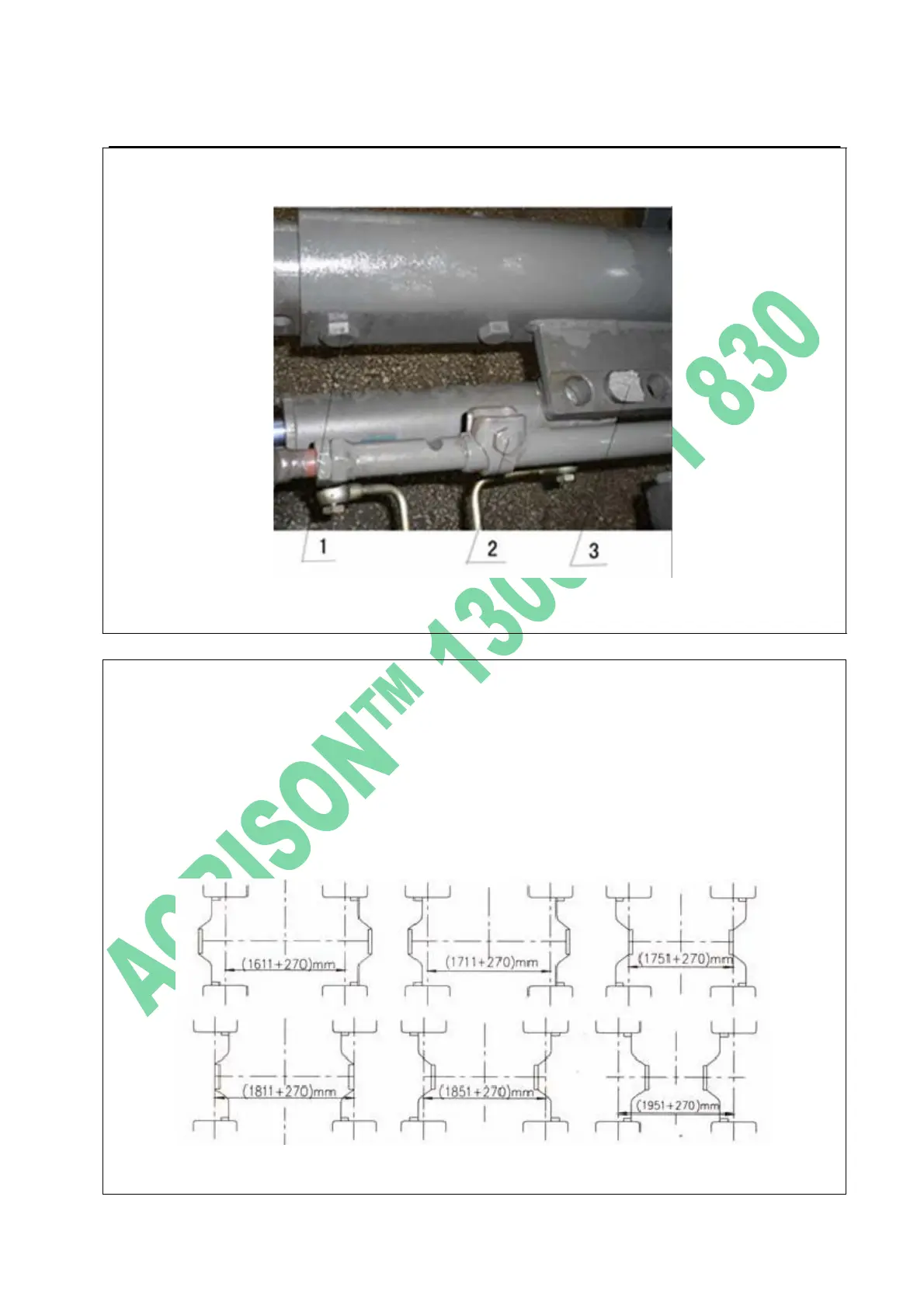

图 4-20 拖拉机前轮距的调整（单位:毫米)
Fig. 4-20Adjustment of the front wheel track of the tractor ( unit: mm )
and 2095mm; 6 kinds of wheel track are available after inverting the radials and changing the fixing
positions of the bolts 1651mm, 1751mm, 1851mm, 1951mm, 2051mm, 2151mm.
图 4-19 拖拉机前轮距的调整（单位:毫米)
Fig. 4-19Adjustment of the front wheel track of the tractor ( unit: mm )
