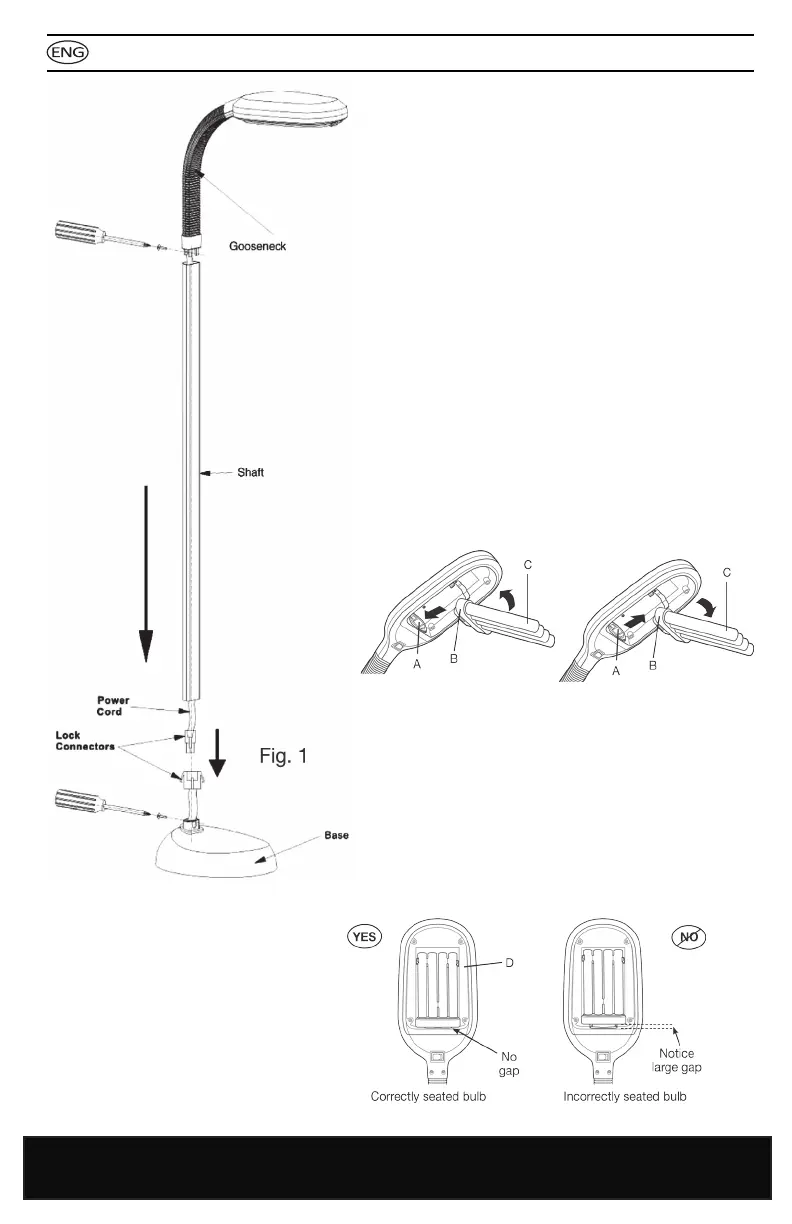

ASSEMBLY INSTRUCTIONS
1. Connect the two ends of the Power Cord (between
the Base and Sha) using the lock connectors.
2. Carefully tuck excess Power Cord into the Sha.
WARNING: Do not cut or shorten the power cord.
3. Insert the Gooseneck and the Sha into the Base.
4. Check direcon of the lamp and the hole on the
Base, then use a Phillips Head Screwdriver (not
included) to ghten the screw into the hole.
CAUTION: BE CAREFUL NOT TO PINCH ANY PART
OF THE CORD BETWEEN METAL PIECES.
BULB INSTALLATION
1. Unplug lamp from power source
2. Firmly hold base (B) and push bulb (C) into the
socket (A).
3. Be sure bulb is rmly seated in the socket (see
below) and snapped into the metal bulb clip (D).
BULB REMOVAL
1. Unplug lamp from power source.
2. Firmly hold base (B) and pull bulb (C) from the
socket (A) in an outward moon.
CAUTION: ALWAYS UNPLUG LAMP BEFORE
PERFORMING BULB REPLACEMENT OR INSTALLATION
