AgSense Crop Link Pro - Power Wiring Instructions; Wiring DC Power or Solar Panel

Wiring the DC Power or Solar Panel to the
Crop Link Unit

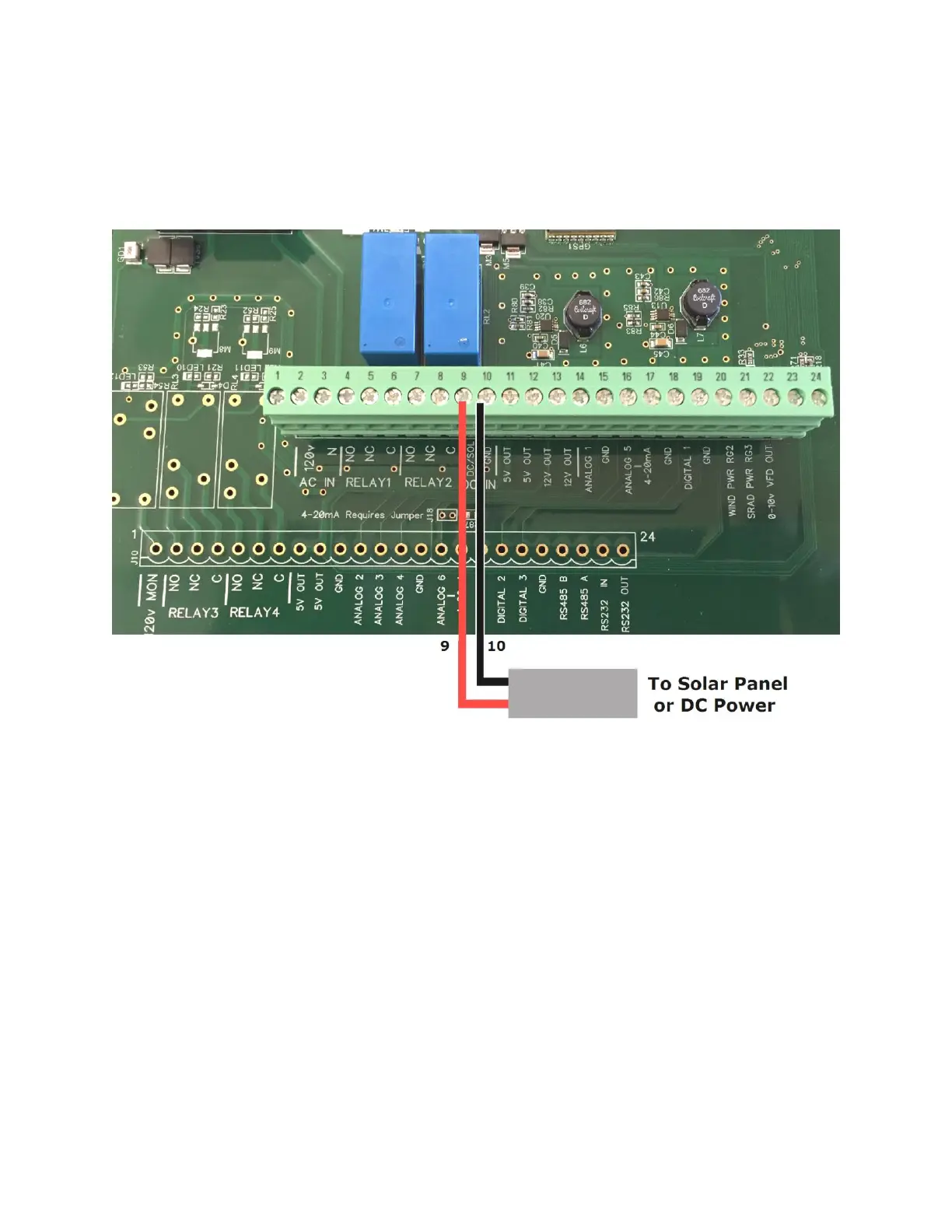

Wiring the solar panel or 7-30v DC power Source: Find the last two terminals on the large
terminal strip labeled DC/SOL and GND
1. Connect the Black or Negative Wire (-) from the solar panel to the terminal marked GND
as shown above.
2. Connect the Red or Positive Wire (+) from the solar panel to the terminal marked
DC/SOL as shown above.
Page 2
