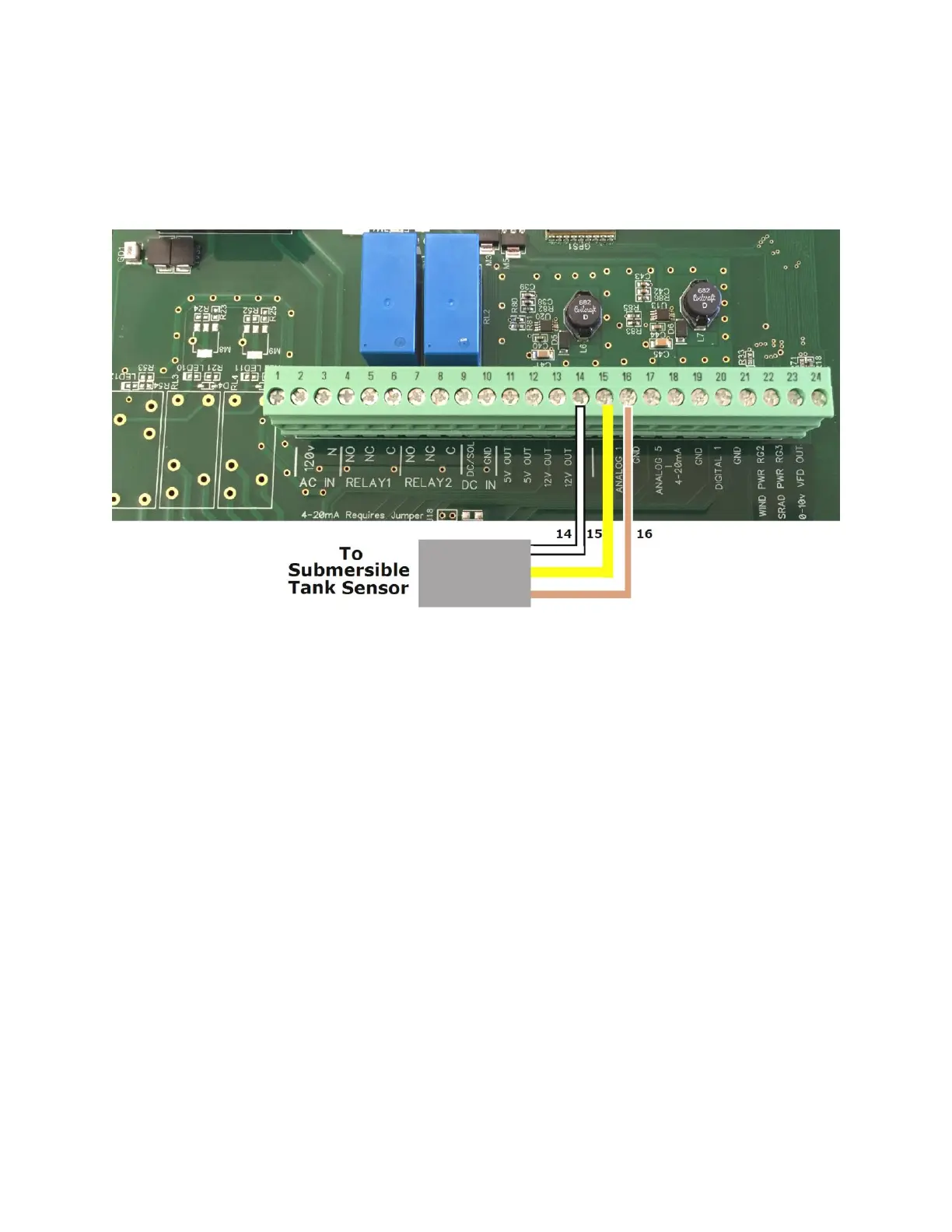

Submersible Tank Level Sensor Wiring:
Ashcroft KM45 series
1. Install the White wire into the 12v Out terminal as shown above.
2. Install the Brown wire into the GND terminal as shown above
3. Install the Yellow wire into any input (AN1 to AN4) terminal as shown above.
4. Green wire is not used and can be capped off.
Note: DO NOT shorten or lengthen the cable on this transducer. This cable contains an air vent
tube and filter that is critical to this transducer functioning correctly – do not modify!!
Page 6
