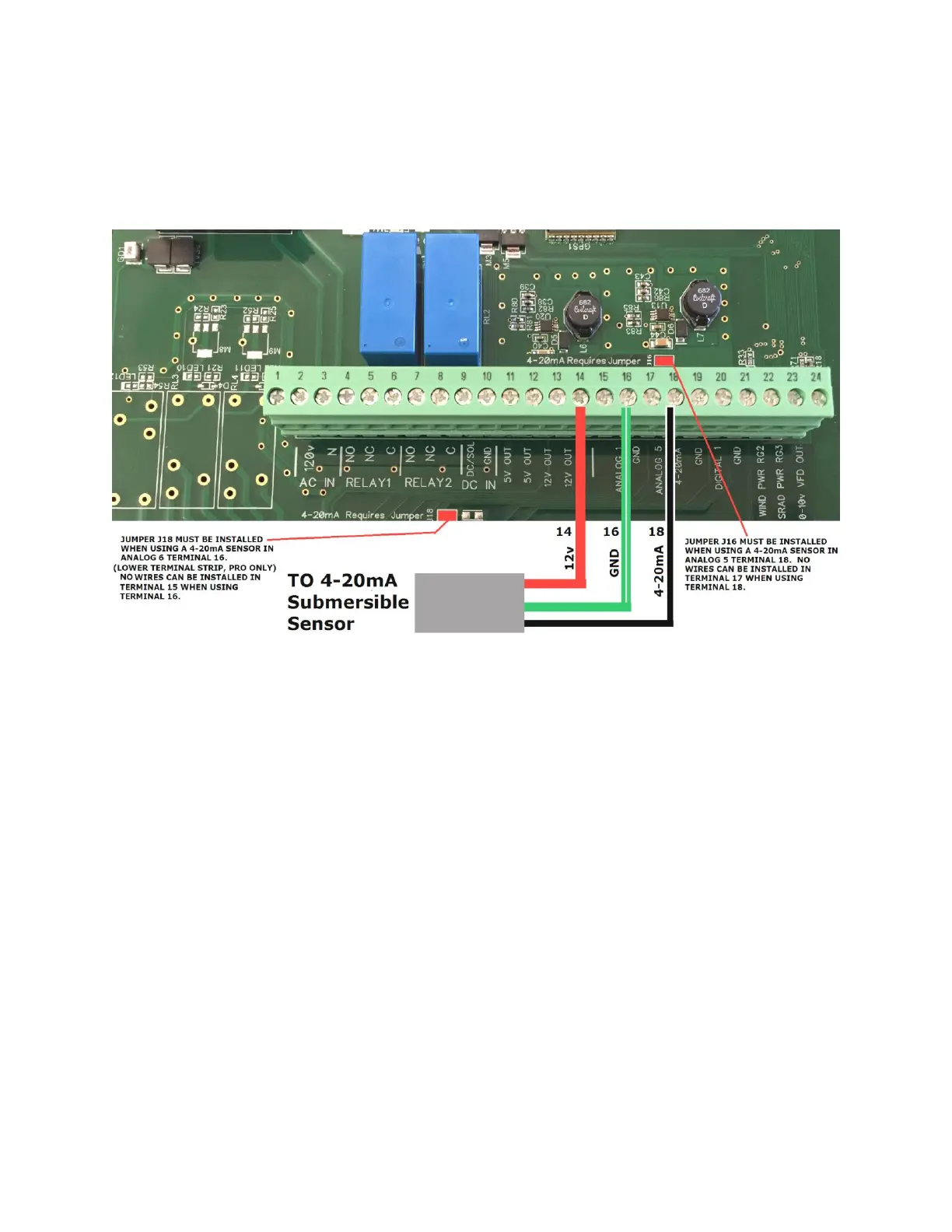

Submersible Tank Level Sensor Wiring:
Ashcroft SL17 series 4-20mA sensor
1. Install the Red wire into the 12v Out terminal as shown above.
2. Install the Green and Bare wires into the GND terminal as shown above
3. Install the Black wire into input AN5 4-20mA or AN6 4-20mA terminal as shown above.
4. White wire is not used and can be capped off.
5. Make sure a jumper is installed as shown above or the 4-20mA input will not work.
Note: DO NOT shorten or lengthen the cable on this transducer. This cable contains an air vent
tube and filter that is critical to this transducer functioning correctly – do not modify!!
Page 7
