Position the perimeter cable between the two cutaways on the lower edge of the helmet and pass
them outside the chin strap. On some helmet models (e.g.: Stealth SV, S4 SV, Horizon e Skyline)
this cable can be passed under a fabric tab at the rear of the internal crown pad. On other models,
the cable can be concealed under the neck roll (e.g. the Strada model).

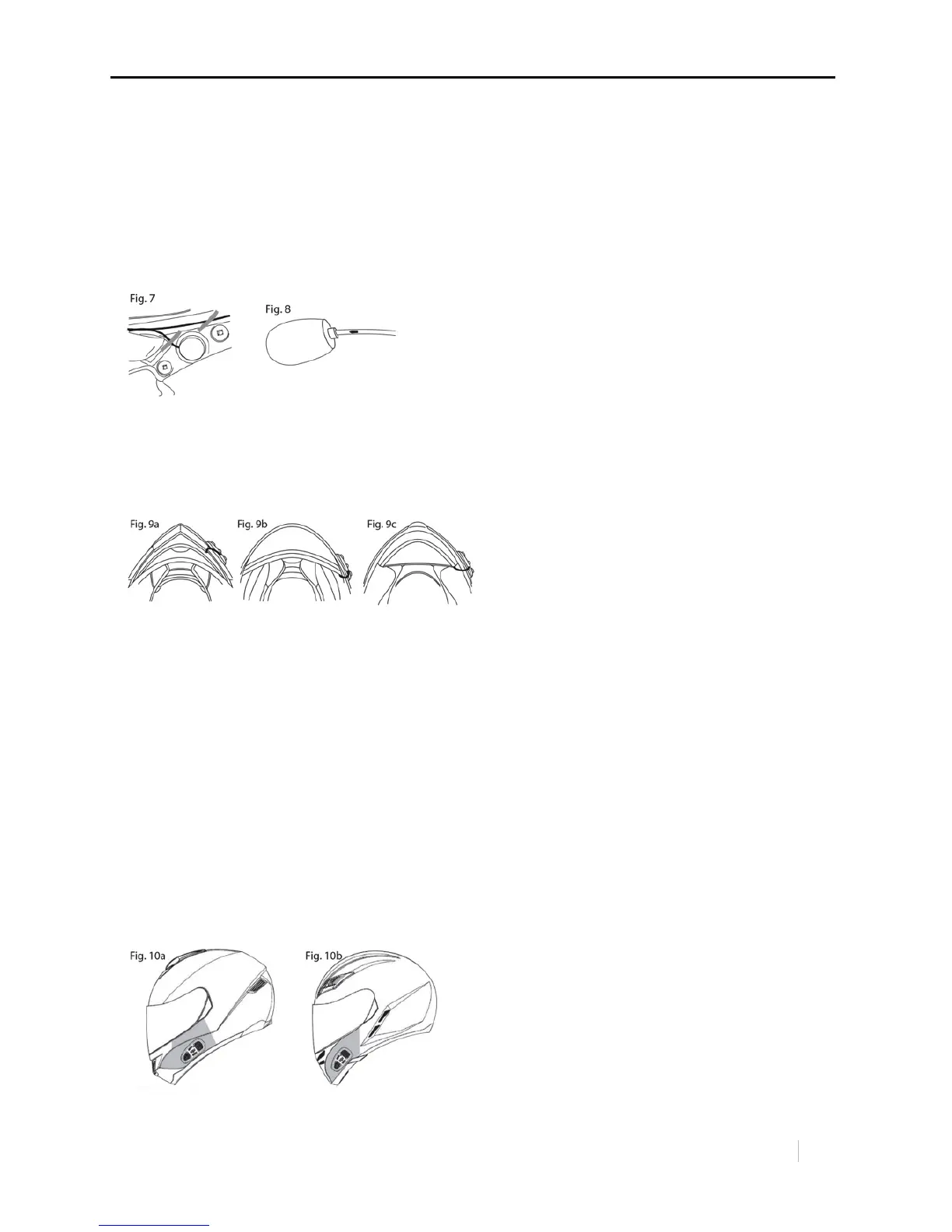

If necessary, use the adhesive strips supplied to fasten the cables in position (Figure 7).
Gently twist the microphone boom so that the arrow faces the mouth (Figure 8).
Reassemble the cheek pads.
When reassembling the chin guard, make sure that the keypad cable exits (Figures 9a, 9b, 9c).
Take the adaptor you need for your model of helmet. The marking on the flat surface will guide you
as to which adaptor you need. Do NOT stick the adaptor to the helmet yet.
! 001 DA530/Strada
! 002 Stealth SV, S4 SV, Horizon, Skyline, K-3 SV
Remove the protective film from the two-sided tape on the back of the keypad and and stick the
keypad to the flat side of the adaptor. Keep pressed together for about 10 seconds.
Use a damp cloth to clean the surface of the shell where the keypad is to be glued.
Identify the area of the shell where the adaptor unit + keypad will be fitted and position the
template as shown in figures 10a and 10b.
