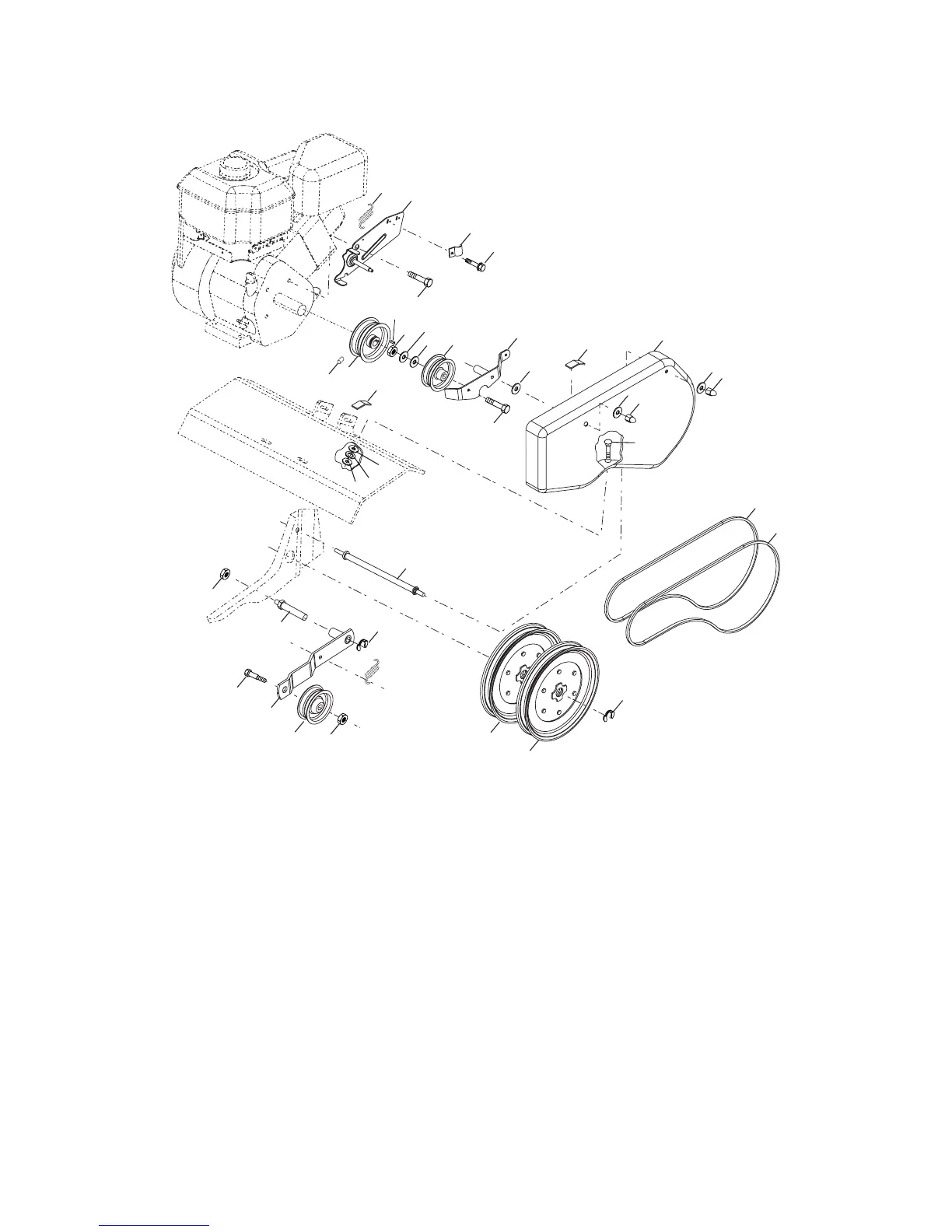

Agway AGF550A - Belt Guard and Pulley Assembly

19
KEY PART
NO. NO. DESCRIPTION
19 188502 Bolt, Belt Guard
20 12000036 Ring, Klip
21 73350600 Nut, Hex, Jam 3/8-16
22 161806 Pulley, Idler
23 175377 Arm, Idler
24 74760620 Bolt, Hex 3/8-16 x 1-1/4
25 106968X Shaft, Idler Arm
26 73350500 Nut, Hex, Jam 5/16-18
27 73220400 Nut, Fin Hex 1/4-20
28 10040400 Washer LK Hvy Helical 1/4
29 109227X Pad, Idler
30 23200404 Screw, Set , Socket, Headless
C.P. 1/4-20 x 1 /4
31 101189L Sheave, Engine
32 151223 Pulley, V-Groove, Trans.
41 180307 Spring
42 138909 Spacer
KEY PART
NO. NO. DESCRIPTION
1 180377 Assembly, Bracket, Belt Guard
2 9484R Clip, Cable
3 86777 Screw, Hex, Washer Hd., Slotted,
Thd. Cutting #10-24 x 1/2 Type D
4 74610812 Bolt, Hex 1/2-20 x 3/4
5 73680600 Nut, Hex Lock 3/8-16
6 19131316 Washer 13/32 x 13/16 x 16 Ga.
7 2009J Pulley, Idler, Reverse
8 180323 Assembly, Arm, Reverse Idler
9 74760628 Bolt, Hex 3/8-16 x 1-3/4
10 156705X505 Guard, Belt
11 19091016 Washer 9/32 x 5/8 x 16 Ga.
12 104213X Nut, Cap 1/4- 20
13 72140406 Bolt, Carriage 1/4-20 x 3/4
14 133035 V-Belt (Forward Motion)
15 2614J V-Belt (Reverse)
16 12000028 Ring, Retainer
17 2649M Key, Square
18 151236 Pulley, Flat, Trans.
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
41
1
2
3
4
5
42
6
7
8
29
11
9
17
31
30
29
11
11
11
10
14
15
12
12
13
16
19
32
18
20
25
21
22
23
24
26
28
27
belt_guard_14
REPAIR PARTS
TILLER - - MODEL NUMBER AGF550A
BELT GUARD AND PULLEY ASSEMBLY
