REPAIR PARTS
TILLER - - MODEL NUMBER AGF550A

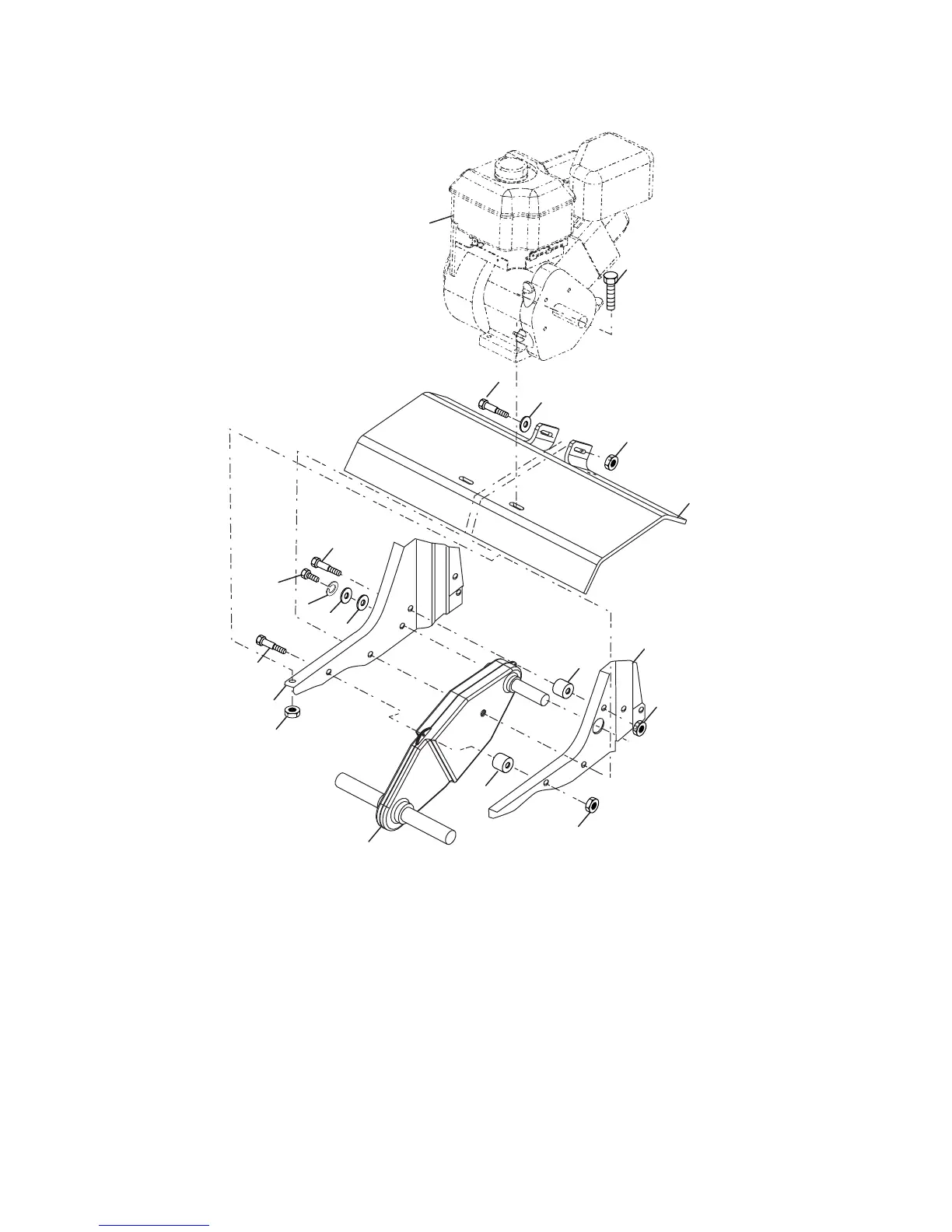

TRANSMISSION
KEY PART
NO. NO. DESCRIPTION
14 9173R Spacer, Split
16 19091412 Washer 9/32 x 7/8 x 12 Ga.
17 19092016 Washer 9/32 x 1-1/4 x 16 Ga.
18 10040400 Washer, Lock 1/4
19 74610412 Bolt, Hex 1/4-28 x 3/4 Gr. 5
20 - - - - - - - Engine, Briggs Model 126302
Order parts from engine manufac-
turer
2
3
5
6
8
11
16
17
11
10
7
19
14
10
12
18
10
14
1
20
transmission_12
KEY PART
NO. NO. DESCRIPTION
1 74760524 Bolt, Hex 5/16-18 x 1-1/2 Gr. 2
2 74780652 Bolt, Hex, Fin 3/8-16 x 3-1/4
3 19131311 Washer 13/32 x 13/16 x 11
5 73900600 Nut Lock Flg 3/8-16 unc
6 9057R505 Shield, Tine
7 188195 Bracket, Engine, R.H.
8 165834 Bracket, Engine, L.H.
10 73970500 Nut Lock Hex Flg
11 187912 Bolt, Shoulder
12 176112 Transmission
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
To Next Page
