Ahuja AMX-912 - The Output Section; LINE OUTPUT HI; LINE OUTPUT LO; LEFT;RIGHT MASTER FADERS

7
AMX-912

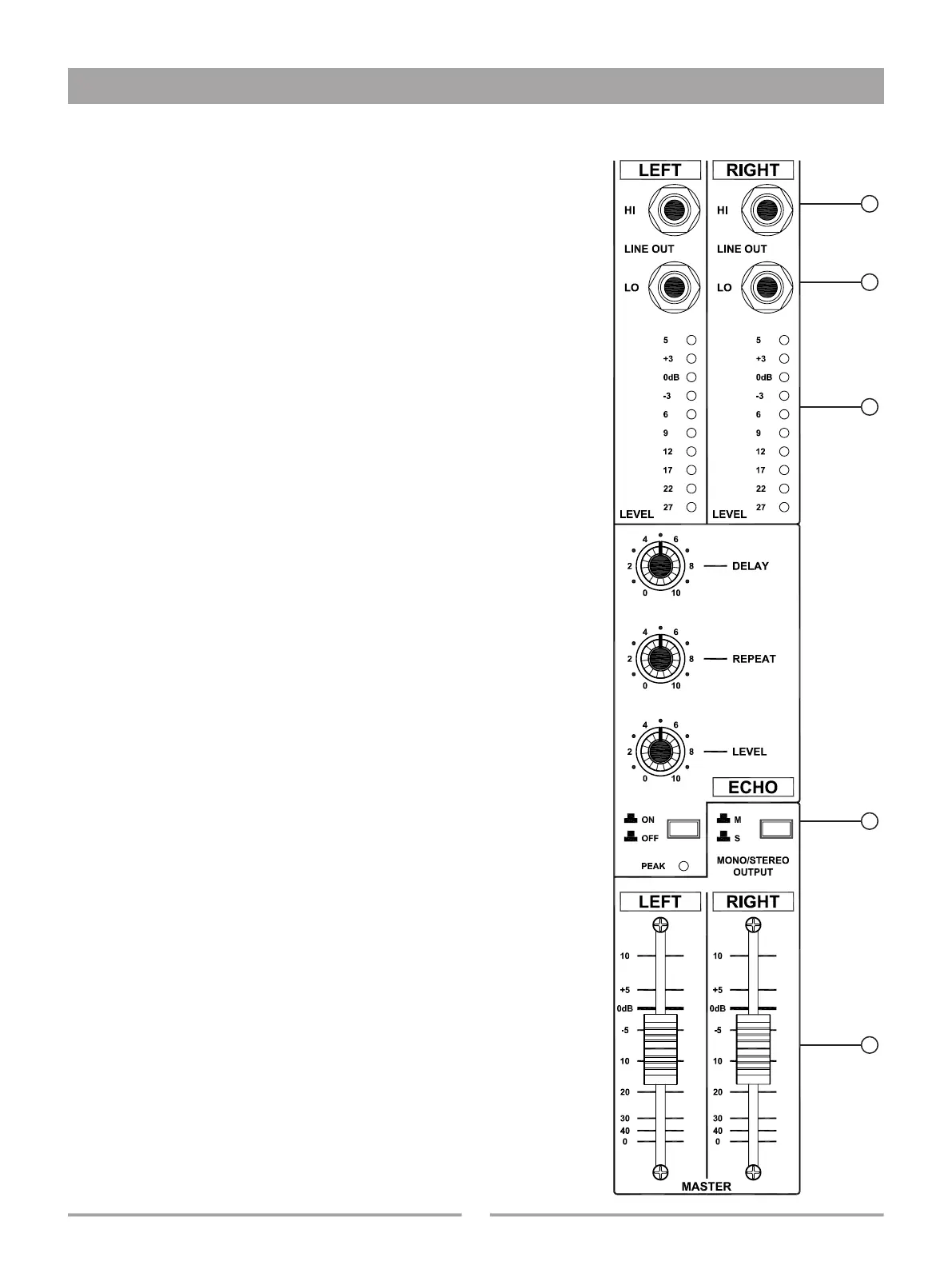

1. LINE OUTPUT HI
Unbalanced High Line Outputs have been provided for the Left and
Right channels through 1/4” phone jacks. These are for connecting
to the LINE INPUT of the Power Amplier. The Line Output levels
( 0mV to 775mV ) can be adjusted by Master Faders.
Wiring: Tip Signal
Sleeve Ground
2. LINE OUTPUT LO
Unbalanced Low Line Output have been provided for the Left
and Right channels through 1/4” phone jacks. This output is for
connecting to the AUX INPUT of a Monitor/Power Amplier. The
Preampler Output (0mV to 250mV) can be adjusted by Master
Faders. This lower signal output has been given in addition to the
Line Output as many ampliers have only an
Aux Input. This can also be used for connecting to a monitor
amplier while the Line Output is connected to the main power
amplier.
3. LED BARGRAPH
There are 2 colour , 10 segment LED Arrays which display the Left
& Right output levels. The 0dB LEDs correspond to 250mV (LO
Line output) and 775mV (HI Line output ).
4. MONO / STEREO OUTPUT SWITCH
Mono or Stereo Output mode can be selected through this switch.
In case of Mono, the same mixed mono output is available through
any of the Left or Right output jacks. If the Left Output jack is used,
then the signal level can be set by the Left Master Fader. Similarly,
the mono signal from the Right Output jack can be set by the Right
Master Fader.
5. LEFT / RIGHT MASTER FADERS
The Left & Right faders are the master output level controls. These
determine the level of all the signals ( mix ) sent by the Channel
Faders and Tape Playback, to the L/R Line Outputs High and Low
Output jacks.
