BRAKE OPERATION
Parking Brakes (Occupant)

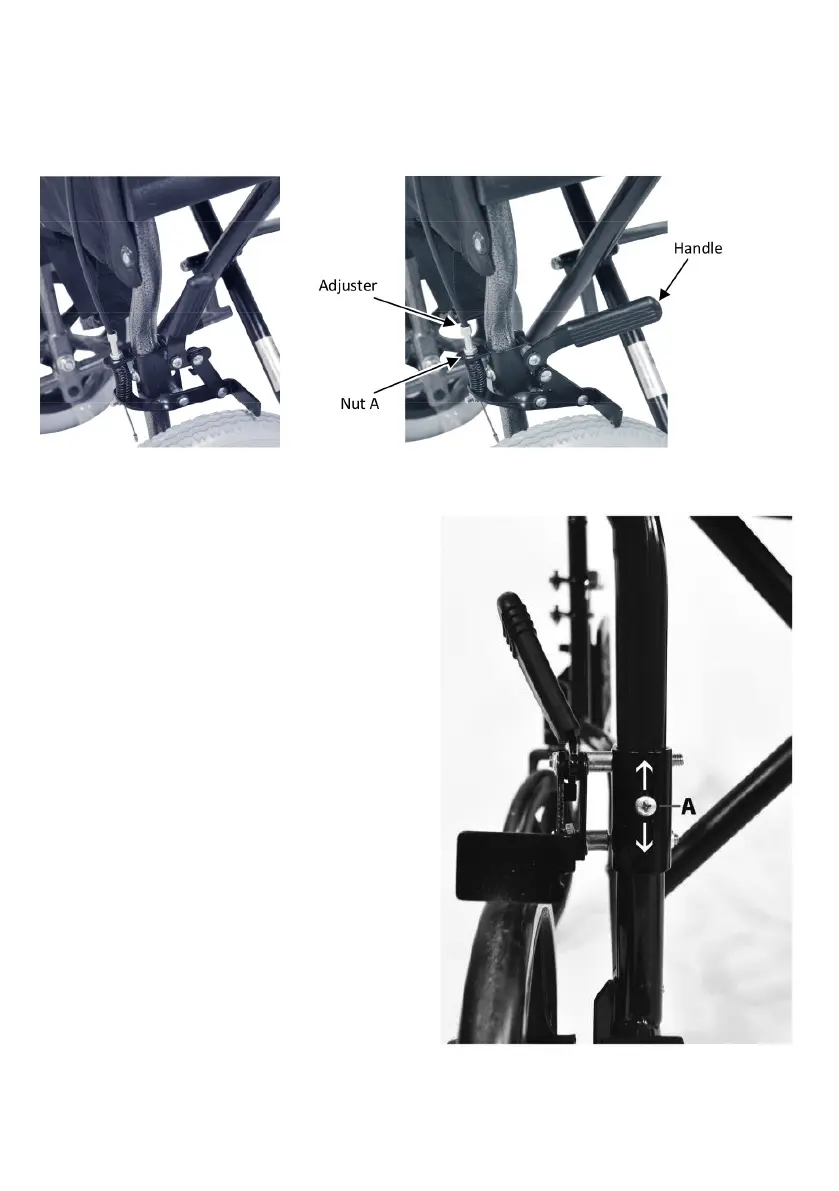

See Fig. 3 which shows the wheelchair with the parking brake not applied. To apply the
parking brake push the handle forward as in Fig. 3a until it ‘clicks’ and this will apply the
brake.
BRAKE ADJUSTMENT
The brakes may need to be adjusted
periodically. We would advise that this is
done by competent person.
For normal adjustment see Fig. 3c, ‘Nut
A’ needs to be unscrewed and the sleeve
moved either upwards or downwards as
required to adjust the brakes.
Fig. 3
Fig. 3a
Fig. 3c
