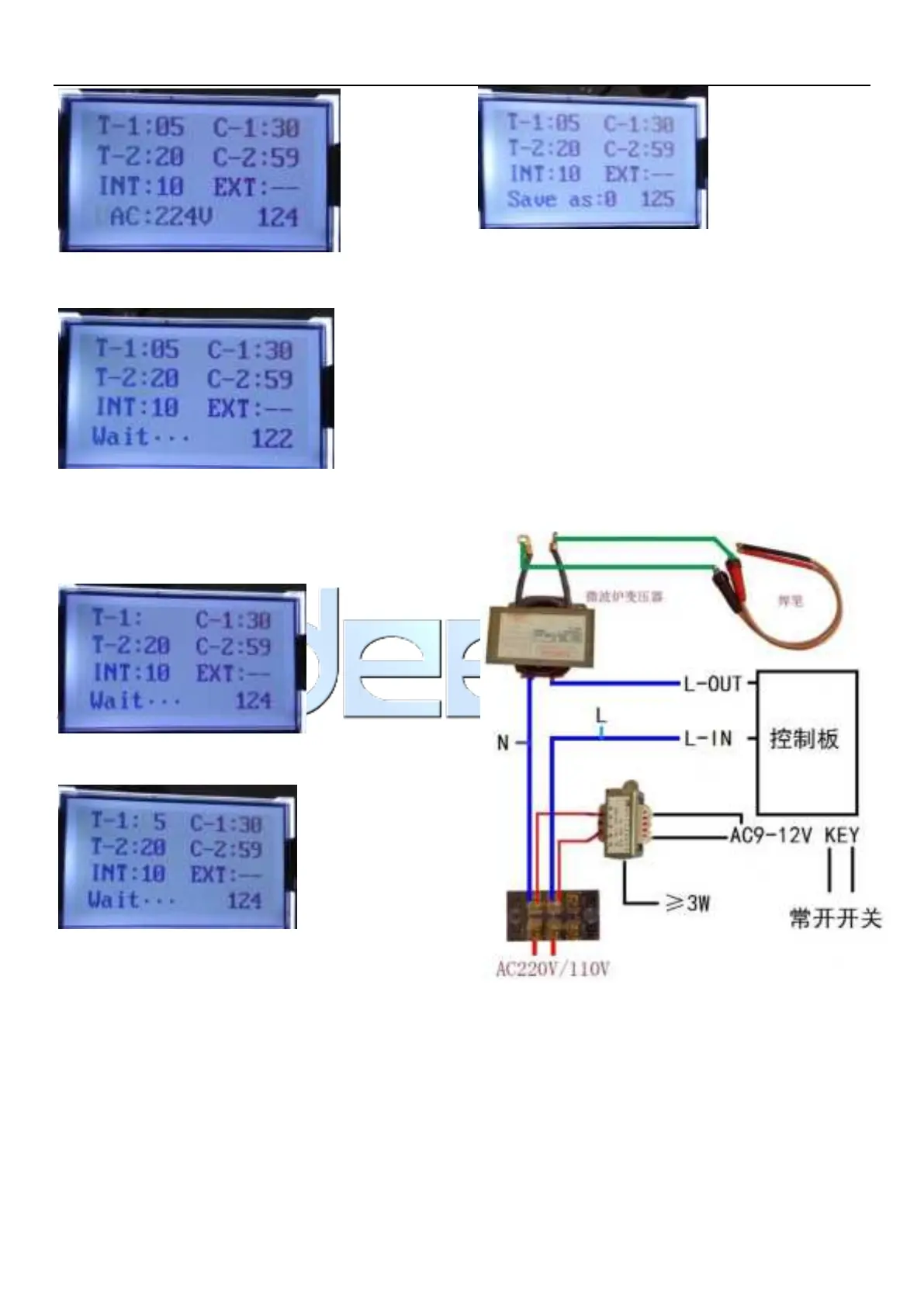

]2. Display interface
T→Time C→Current INT→Interval EXT→Extract
Interval: idle time between two welds.
3. Numerical adjustment: long press encoder, enter
adjustment interface, when numerical corresponding
value double digital flicker,
Short press encoder, with a single digit flickering left or
right to adjust the value,
Short press the encoder to change the next digit.
When the double digit flashes, the left or right rotary
encoder changes the next parameter adjustment.
When the count value is greater than 0, rotate the
encoder to the counting position, short press the
encoder, left-hand or right-hand encoder to clear.
When "exit" flashes, press the encoder to exit the
adjustment interface. When exiting the interface, the
encoder is double-clicked within 1 second, the current
parameter content can be saved as the next call
parameter (template save parameter), and the save
position corresponds to the calling position.The save
position is 0-4, and when it exceeds the maximum
value, it is overwritten from 0.
4. Extracting saved parameters（EXT→Extract）：when
“▬ ▬” is displayed, it indicates that the current
parameter is changeable and can be adjusted freely.
The last adjustment is saved by default. When the
calling parameter value is 0-4, it means that the
current parameter comes from the template saving
parameter (double-click encoder within 1 second).
The current parameter can not be changed except the
calling state (EXT) can be changed and the count
value can be cleared to zero. Other parameters
cannot be changed.
5. Wiring diagram
Microwave oven transformer Welding pen
Control panel Normally open switch
6. Plate size and mounting hole position
