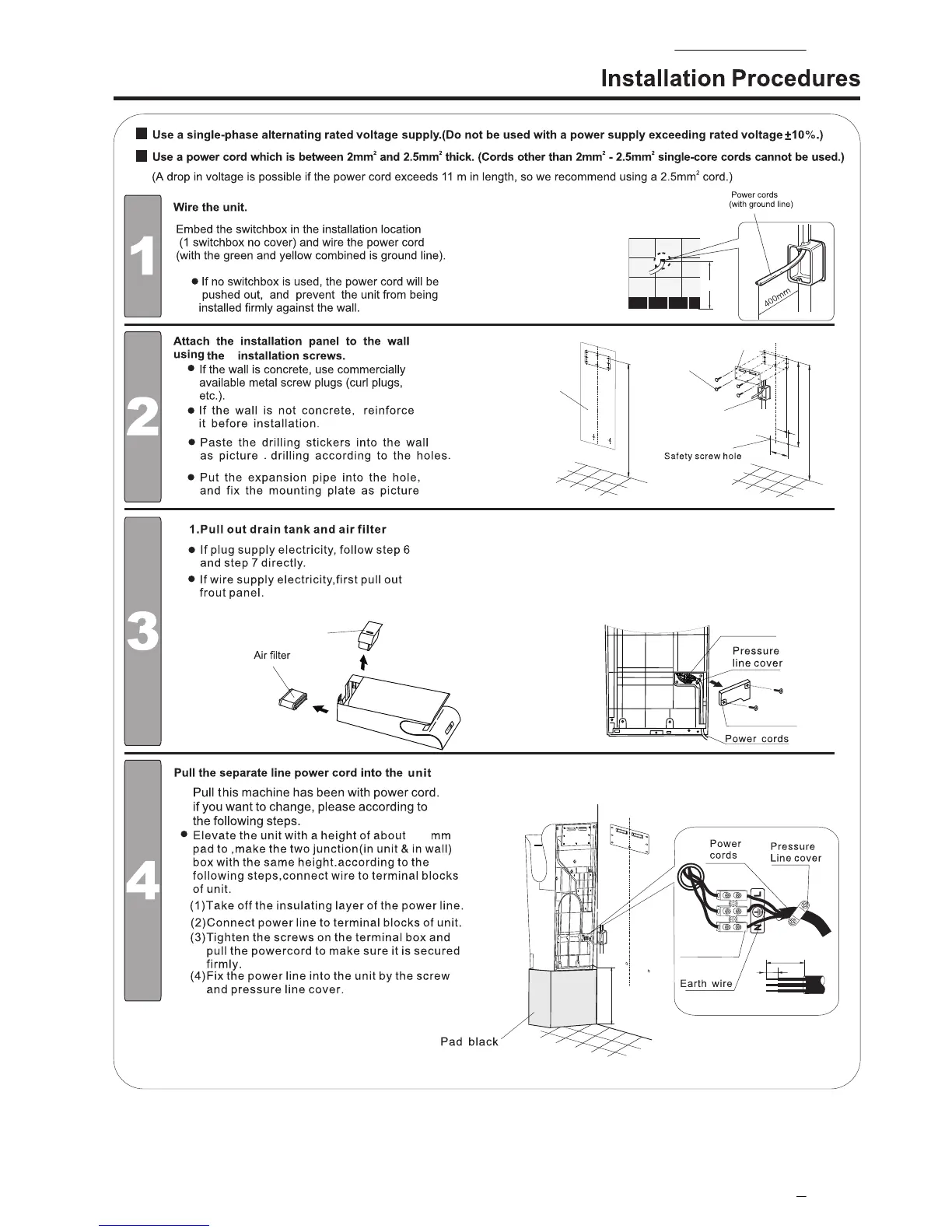

Aike AK2030 - Installation Procedures; Wire the unit; Attach the installation panel to the wall; Pull out drain tank and air filter

10
40
645
130
5
915-935
915-935
4
410mm
Drilling stickers
Installation panel
Installation screws
Switch box
Drain tank
Terminal box
Terminal box
Electric cover
250mm
2.Pull out electric cover and power cords
(1) Unscrew the 2 screws on the electric cover,
open the cover.
(2) Unscrew the 2 screws on the pressure line
cover, loosen the 3 screws on terminal box,
then puii out the power wire.
250
www.zjaike.com
3
