AILF U10 - Concentration Window; Basic Settings

32 pages

To Next Page

To Previous Page

Operation

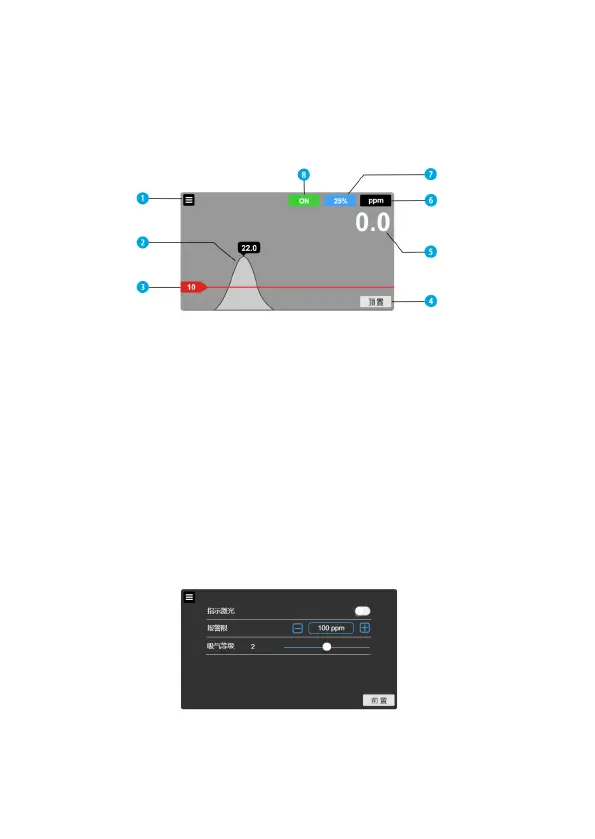

3.3.1 Concentration Window

[ 1 ] Basic Settings Set alarm line

[ 2 ] Concentration Curve Historical curve, and maximum value

[ 3 ] Alarm Limit User set alarm threshold

[ 4 ] Equipment Type Display the type of connected device

[ 5 ] Real-time Concentration Display the real-time concentration

[ 6 ] Unit ppm or ppm.m

[ 7 ] Laser Intensity Display the real-time laser intensity

[ 8 ] NC

3.3.2 Basic Settings

The back of the concentration window is the basic setting of the device, in-

cluding alarm limit settings, and so on.
