6

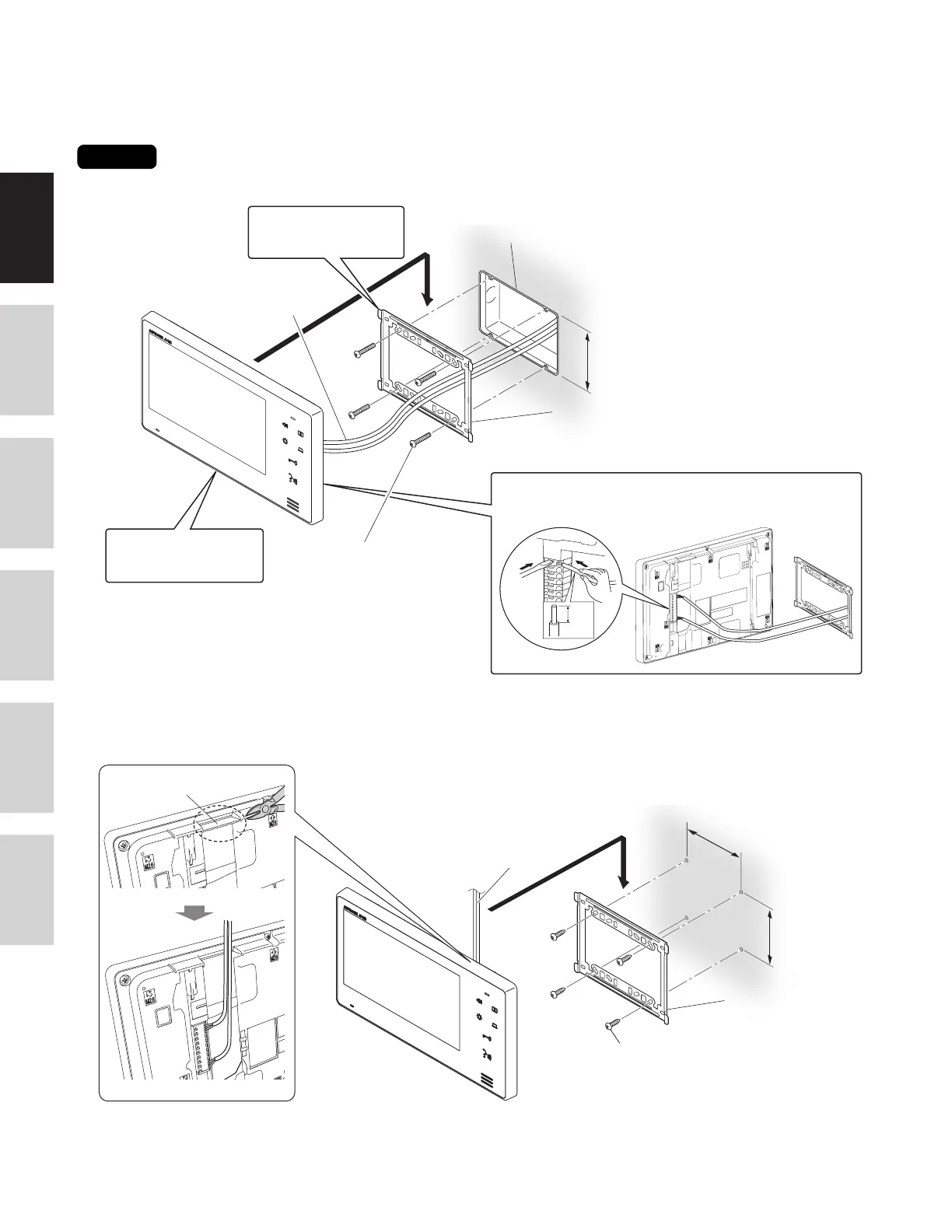

<Back wiring>
83.5mm (3-5/16")
8mm
(3/8")
3-gang box
Mounting screw × 4
(Screw shaft: Ø4.1)
(Slotted Head: Ø8.2 or less
Height 3.0mm or less)
(not included)
Mounting bracket
(attached to the unit with shipment)
Mount the unit on the
mounting bracket.
3
Fasten the mounting
bracket to the wall
1
2
1. Press release button to insert or remove wire.
2. Insert wire into the terminal.
JO-1MD
MOUNTING
Wires
<Surface wiring>
When the wiring is not coming through the wall, the wires can be routed to the top or bottom of the unit. Remove cable inlet plate on
the upper part of the unit to allow passage of the wiring into the unit.
92mm (3-5/8")
83.5mm
(3-5/16")
Mounting bracket
(attached to the unit with
shipment)
Wood mounting screw × 4
(Screw shaft: Ø4.1)
(Slotted Head: Ø8.2 or less
Height 3.0mm or less)
(not included)
Wires
Remove cable inlet plate
