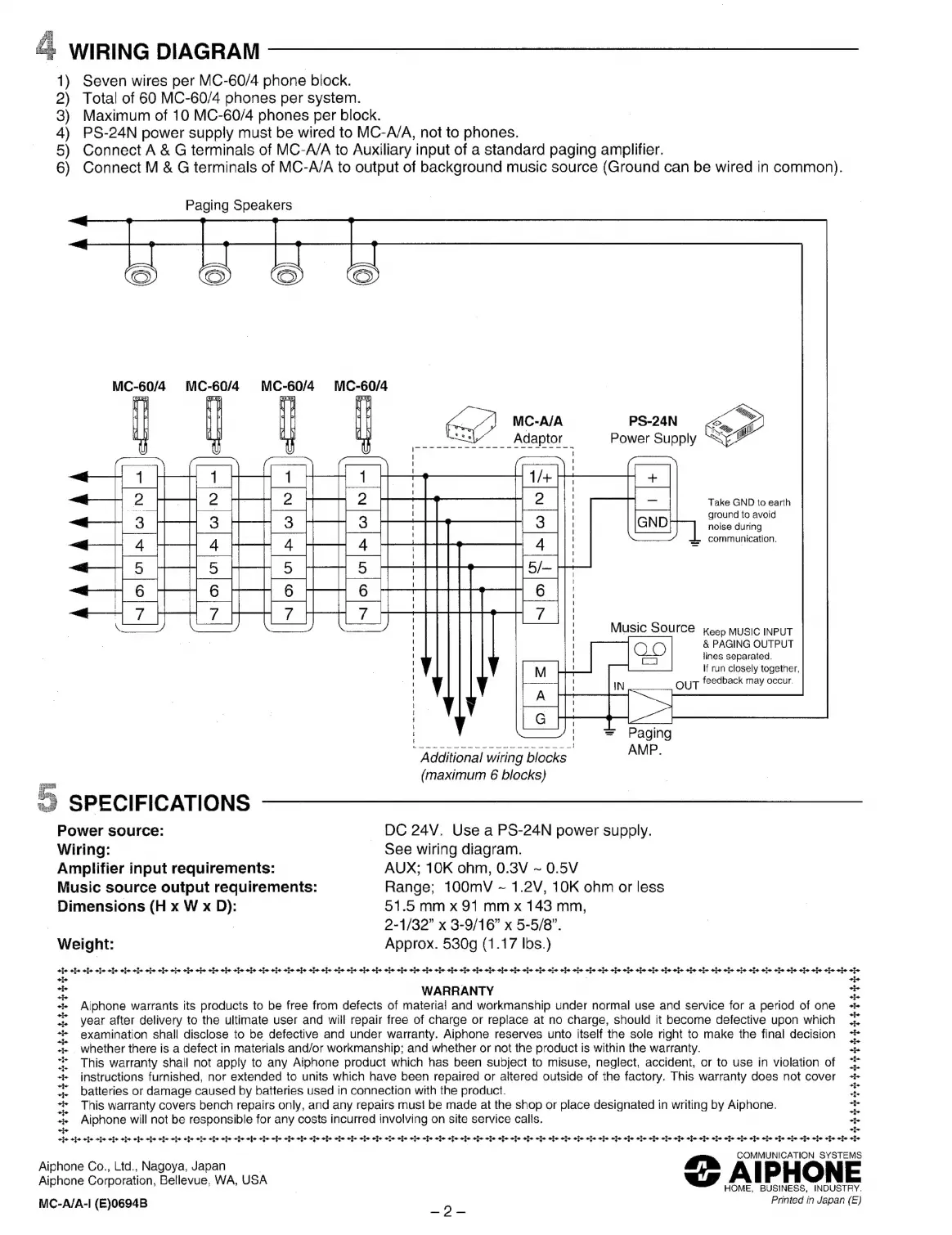

WIRING DIAGRAM
Seven wires per MC-60/4 phone block.
Total of 60 MC-60/4 phones per system.
Maximum of 10 MC-60/4 phones per block.
PS-24N power supply must be wired to MC-A/A, not to phones.
Connect A & G terminals of MC-A/A to Auxiliary input of a standard paging amplifier.
Connect M & G terminals of MC-A/A to output of background music source (Ground can be wired in common).
Oe eve.
Paging Speakers
ao" a= ee ™
©
MC-60/4 MC-60/4 MC-6 60/4 MC-60/4
r
MCA
PS-24N
Ke
@
oe
jac
Power
Supply
Se
Take GND to earth
ground to avoid
noise during
sé communication.
& PAGING OUTPUT
lines separated.
If run closely together,
OUT feedback may occur.
Additional wiring blocks
(maximum 6 blocks)
Power source: = DC 24V. Use a PS-24N power supply.
Wiring: See wiring diagram.
Amplifier input requirements: AUX; 10K ohm, 0.3V ~ 0.5V
Music source output requirements: Range; 100mV ~ 1.2V, 10K ohm or less
Dimensions (H x W x D): 51.5 mm x 91 mm x 143 mm,
2-1/32” x 3-9/16” x 5-5/8”.
Weight: Approx. 530g (1.17 lbs.)
