Installation Instructions, Revised 05/13/13

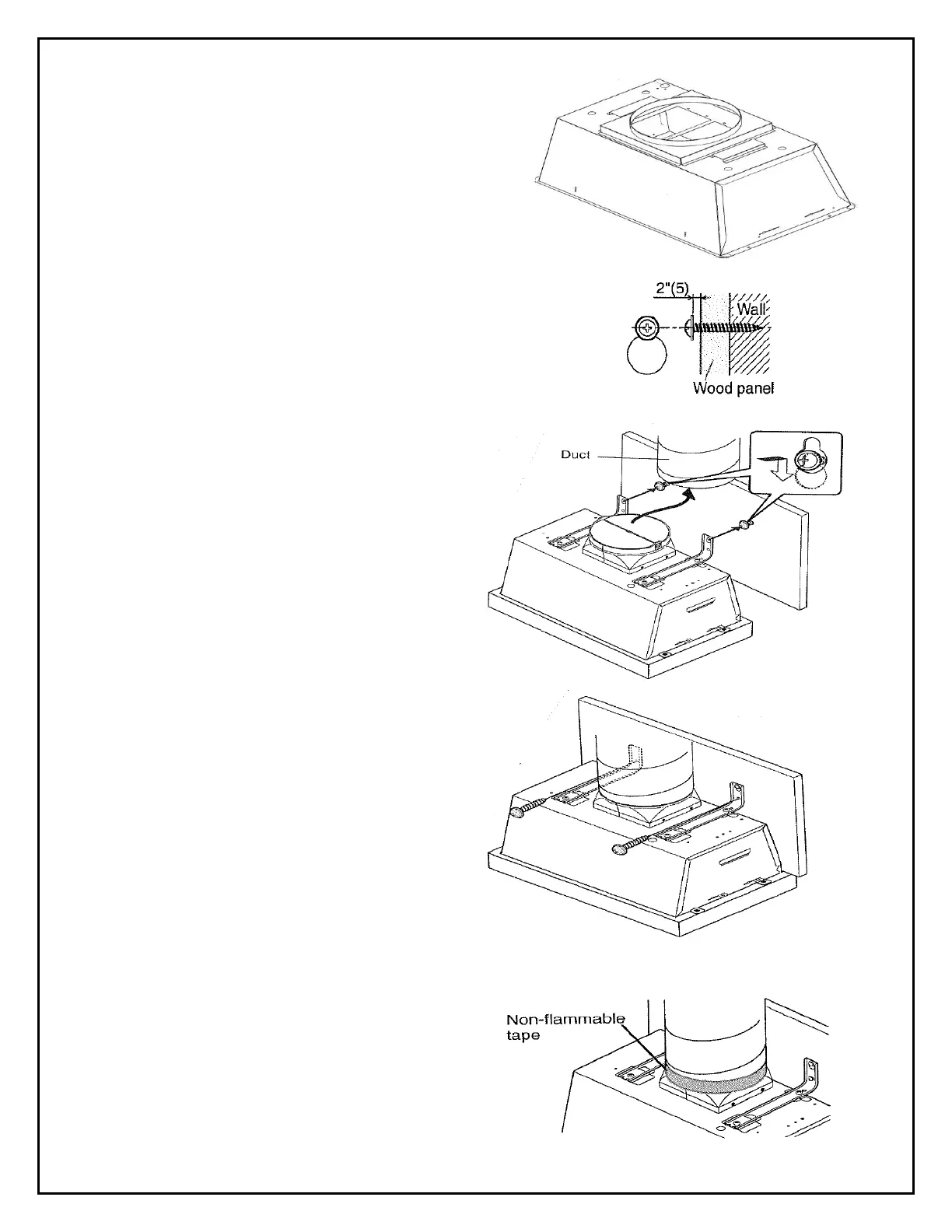

Fix the supplied hanging brackets
on the body firmly using 2 supplied
screws (M5×10).
Insert the washer-head wood screws (M5.1×45) (not supplied)
into the mounting wall to align with bracket keyhole (left and
right). Allow about 5mm between the screwheads and
wall for mounting the range hood.
Hook the temporary fixing holes of the hanging
bracket on the washer-head wood screws
prepared in previous step, and tighten the screws.
Note:
Insert tight the exhaust pipe unit into the duct.
Add 2 screws (M5.1×45) to the holes
under the temporary fixing holes and
tighten them securely.
Make the duct joint secure and airtight
using non-flammable tape such as
aluminum tape, etc. (not supplied)
