Installation Instructions, Revised 05/13/13
PART 2 Range Hood Mounting
CAUTION
• Wear working gloves to avoid injury.
Note:
During installation, be careful not to touch the fan switches.
If two or more switches are pushed at once, it may cause
failure to the motors.

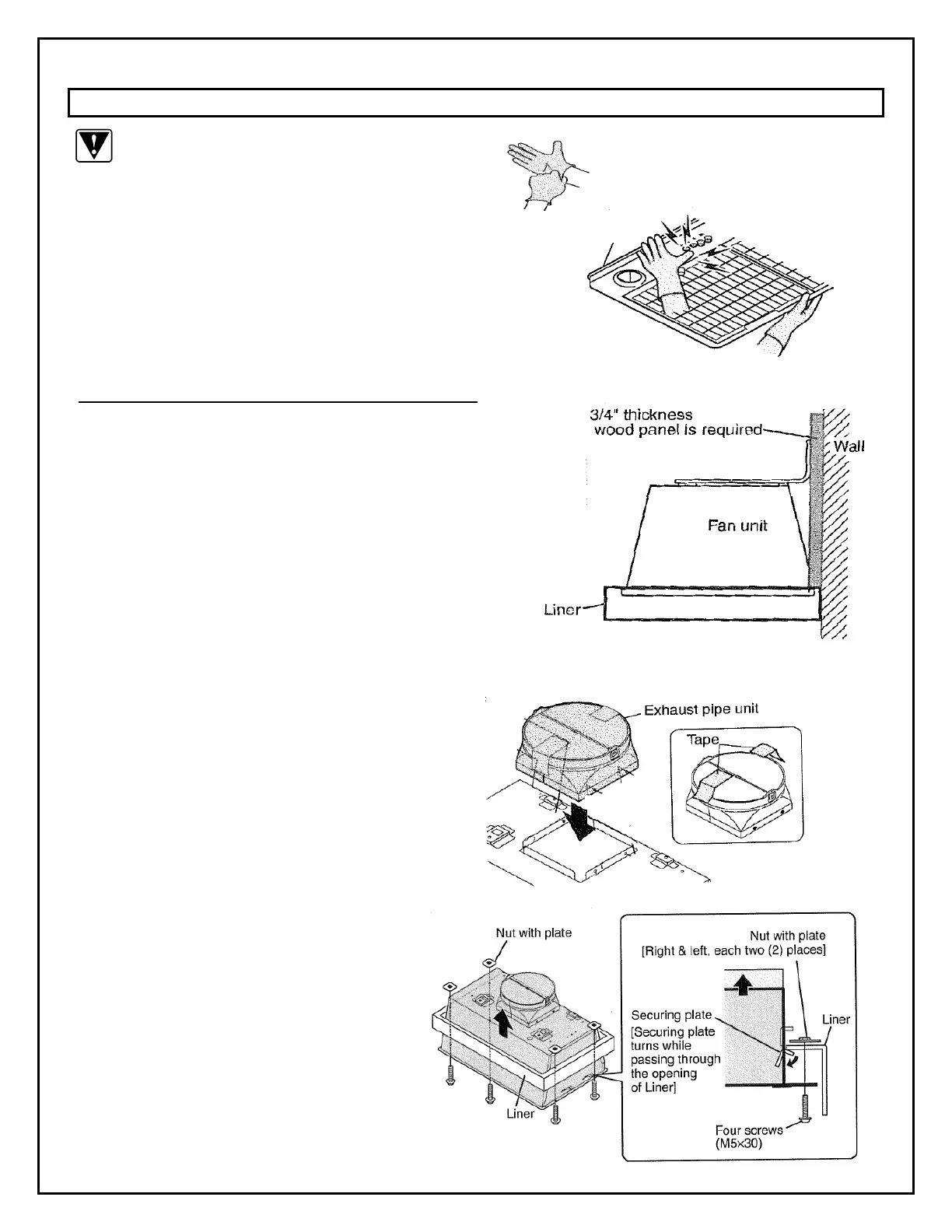

Mounting procedure for 06W (Wall Mounting)
Before mounting, make sure that a wood panel for
mounting the range hood is fixed on the wall where
the range hood is installed.
Note:
If no wood panel is found on the wall, be sure to
prepare one referring to the figure.
Place the range hood in an upright
position and attach the exhaust
pipe unit. Once the exhaust pipe unit
is securely attached, remove the tape.
Align 4 screw holes
of the liner and
range hood, then
fix securely using
the supplied screws
(M5×30) and nuts.
Note:
Fasten all the screws and nuts evenly.
