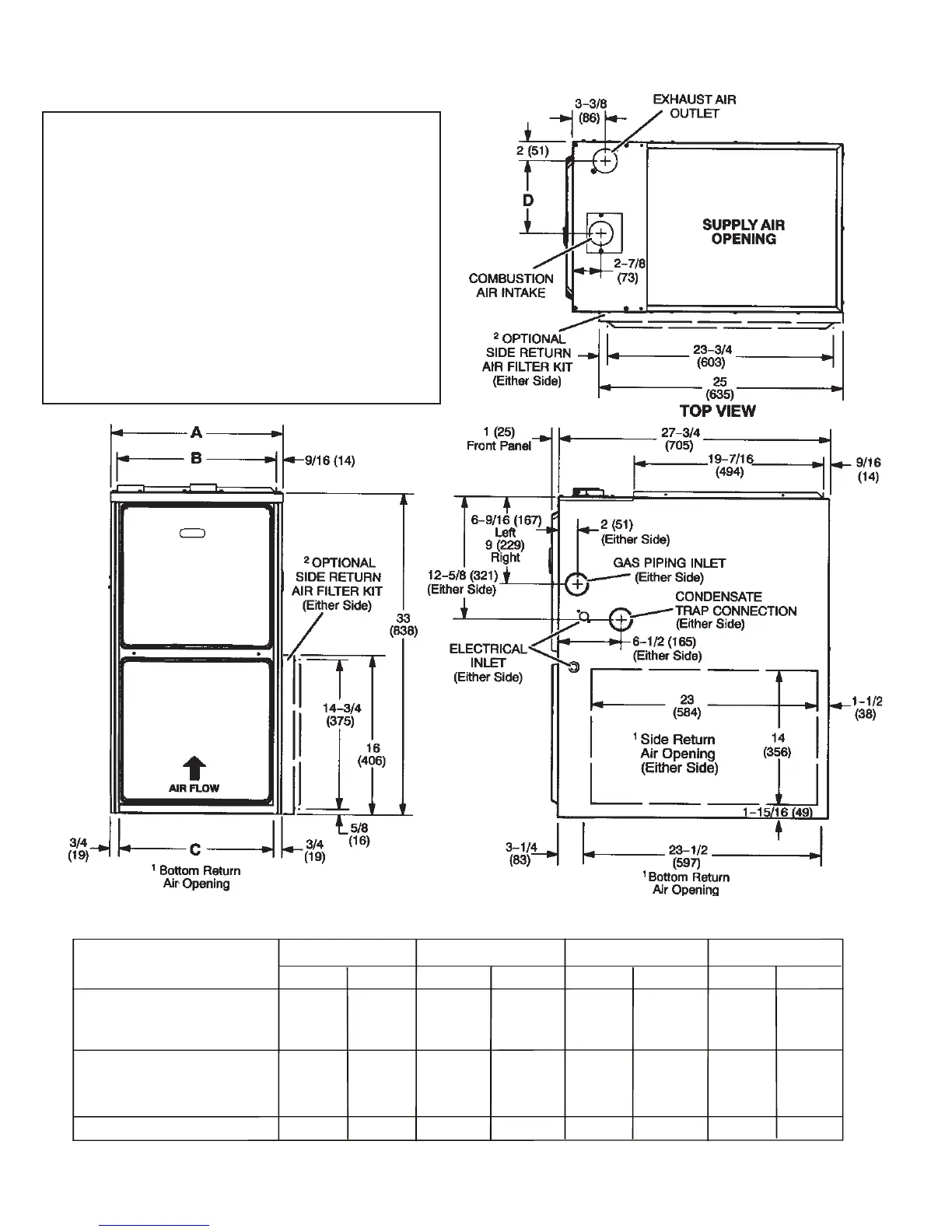

A95UH2V & 95G2UHV Unit Dimensions - inches (mm)
1 NOTE - 20 C/D (5 Ton) size units installed in upflow
applications that require air volumes of 1800 cfm (850 L/s) or
greater must have one of the following:
1. Single side return air with transition, to accommodate
20 x 25 x 1 in. (508 x 635 x 25 mm) air filter.
2. Single side return air with optional RAB Return Air Base
3. Bottom return air.
4. Return air from both sides.
5. Bottom and one side return air.
2 Optional External Side Return Air Filter kit is not for use with
optional Return Air Base.
* Consider sizing requirements for optional IAQ equipment
before cutting side return opening.
FRONT VIEW
SIDE VIEW
Model
A
17-1/2
A95UH2V/95G2UHV
B
C
in.
mm
in.
mm
in.
mm
090-12
135-20
533
21
505
19-7/8
495
19-1/2
622
24-1/2
594
23-3/8
584
23
D
in.
mm
283
11-1/8
238
9-3/8
194
090-20
090-16
110-16
110-20
070-12
045-12
446
416
16-3/8
406
16
7-5/8
