Installation, Maintenance and Commissioning Manual :6877419 02/2013

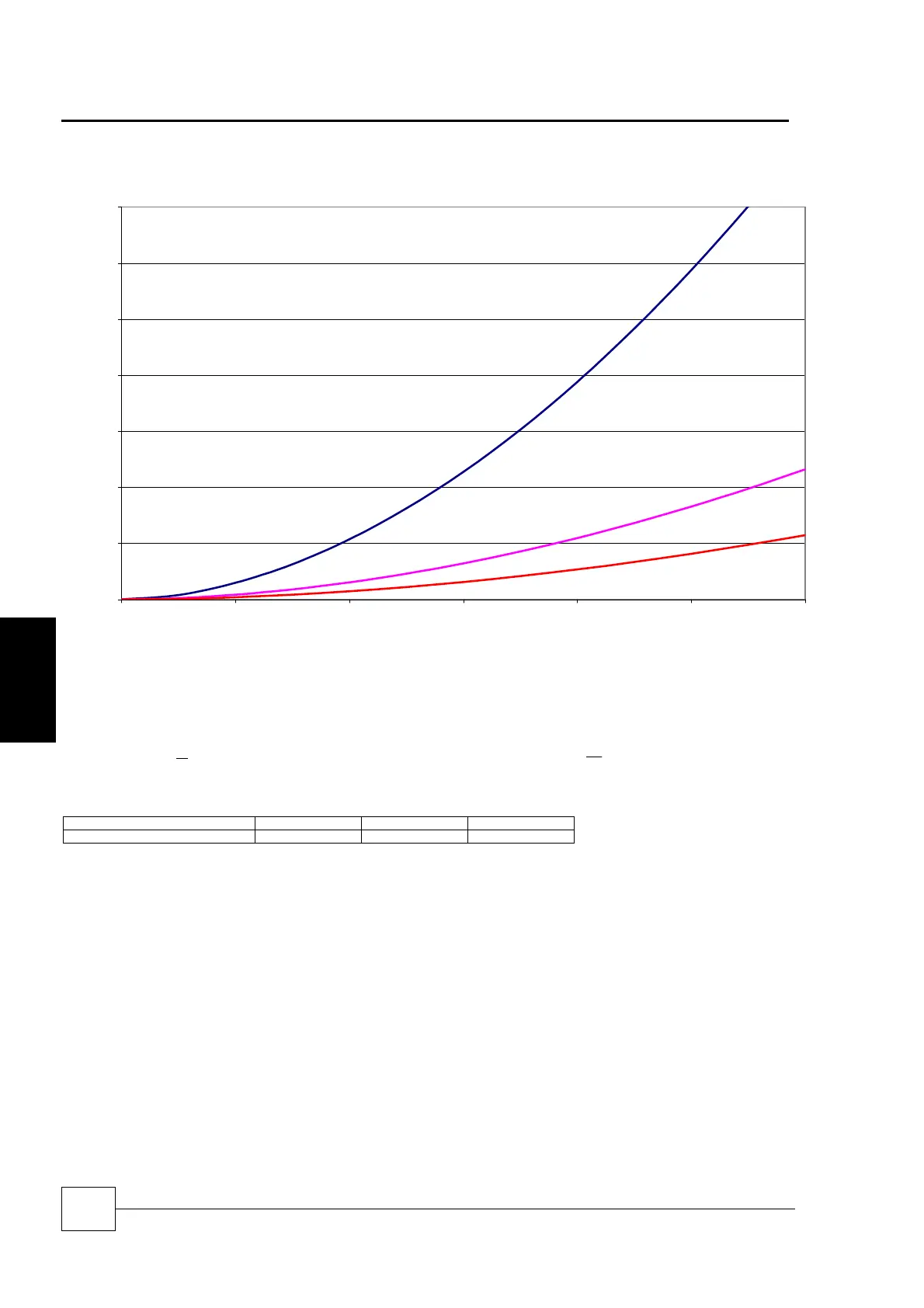

Waterside Pressure Drops W2C0
Water Cooled condenser (W2_ _)
0
100
200
300
400
500
600
700
0 1 2 3 4 5 6
Flow Rate (l/s)
Pressure Drop (kPa)
1
2
3
1 SC19D033 2 SC19D038 – SC19D045,
SC25D045
3 SC19D064 – SC19D076
SC25D050 – SC31D083
(1) Includes plate condenser, 3 port valve and pipework.
(2) To calculate 3 port valve pressure drop:
∆P valve =
2
M
Q
where ∆P = Pressure Drop in kPa, Q = Water Flow Rate in l/s and M =
36
Kv
(3) Fluid 100% water, for glycol use.
M
