AIREDALE SmartCool D - C0 C0 Waterside Pressure Drop

Precision Air Conditioning
SmartCool
TM
– D
Precision Air Conditioning
121
Installation, Maintenance and Commissioning Manual :6877419 02/2013
Chilled water coil (_ _ C0)
0
20
40
60
80
100
120
140
160
180
200
0 1 2 3 4 5 6

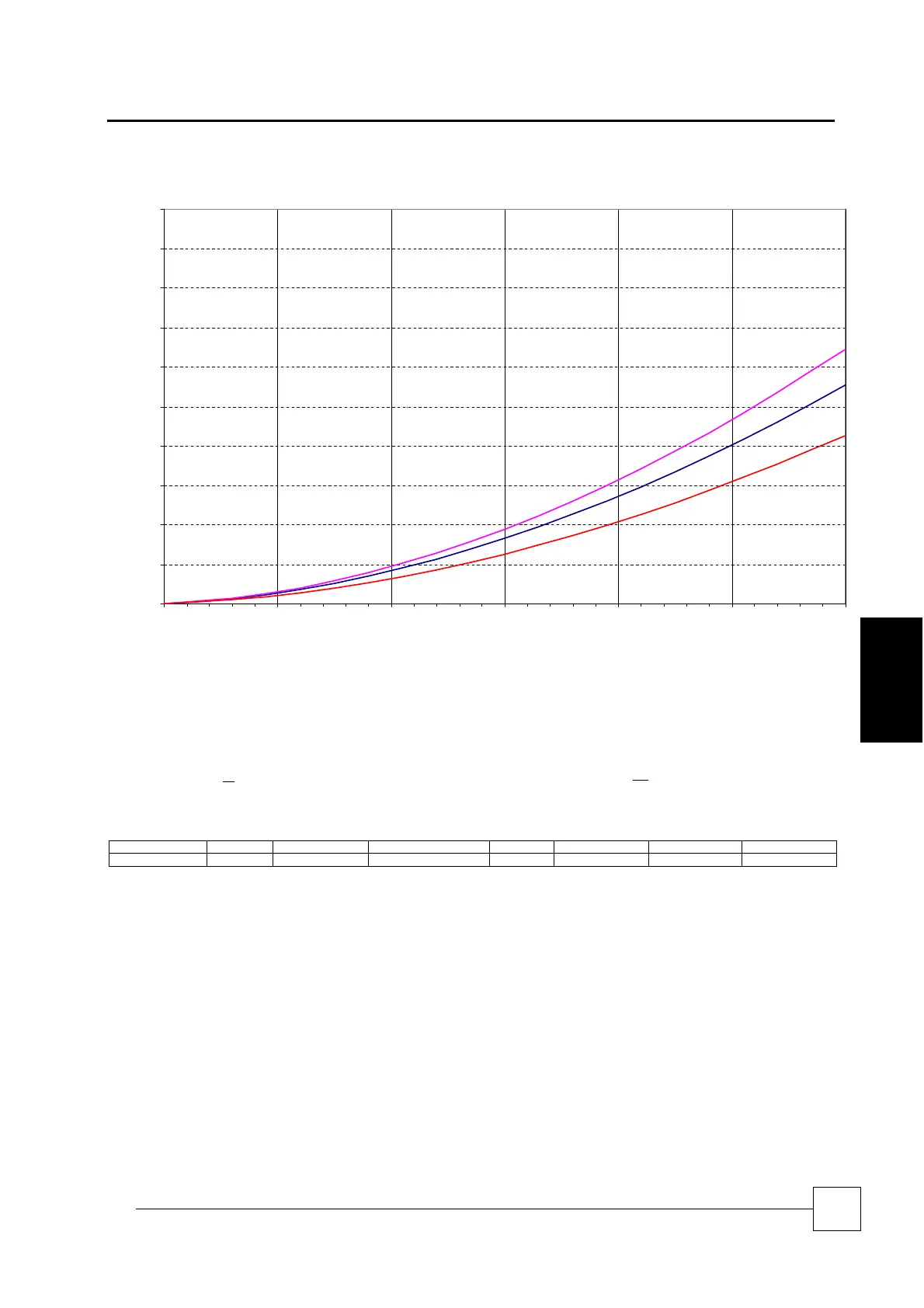

Flow Rate (l/s)
Pressure Drop (kPa)
1
2
3
Key
1 SC19D033 - 045 2 SC25D045 - 080 3
SC31D055 - 075
Pressured drop including Coil and valve
(1) Includes coil, 3 port valve and pipework.
(2) To calculate 3 port valve pressure drop:
∆P valve =
2






M
Q
where ∆P = Pressure Drop in kPa, Q = Water Flow Rate in l/s and M =






36
Kv
(3) Fluid 100% water.
M
Values
Model Sizes SC19D033 SC19D038-D045 SC19D038-SC19D045 SC19D045 SC19D064-D076 SC25D050-D080 SC31D055-D083
Water Valve (C0)
0.69 1.11 1.11 1.11 1.75 1.75 1.75
W2C0
