Precision Air Conditioning
SmartCool
TM
– D
Precision Air Conditioning
151
Installation, Maintenance and Commissioning Manual :6877419 02/2013

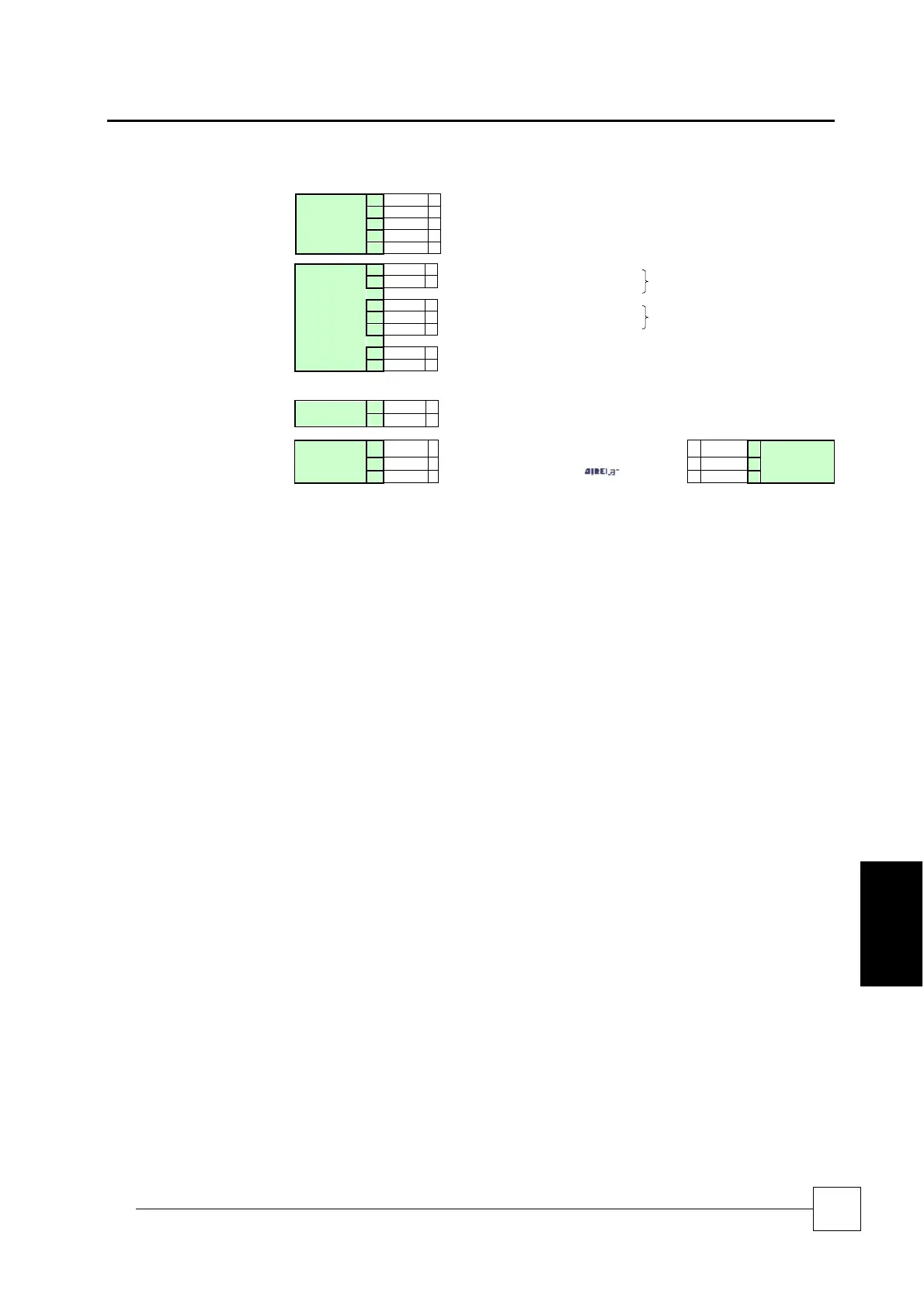

Interconnecting Wiring
C000
INDOOR
UNIT
L1
¡ ç
Mains Incoming Supply 400V / 3PH + N / 50Hz
L2
¡
ç
L3
¡
ç
N
¡
ç
PE
¡
ç
Indoor Controls Only
INDOOR
UNIT
560
¡ è
Volt Free Alarm N/O
Non-Critical Alarm
561
¡
ç
Volt Free Alarm Common
563
¡
è
Volt Free Alarm N/O
Critical Alarm
564
¡
ç
Volt Free Alarm Common
565
¡
è
Volt Free Alarm N/C
502
¡
è
Fire Shutdown input
583
¡ ç
Healthy in N/C Condition
Remote On/Off
INDOOR
UNIT
502
¡ è
Remote On/OFF
522
¡ ç
Run/Standby Network
INDOOR
UNIT
Rx-/Tx-
¡
çè
Use Awg20/22 twisted pair (with overall shield)
cable, Belden ref. 8762 (Airedale ref:
6110316), or equivalent, for
network
çè ¡
Rx-/Tx-
INDOOR
UNIT
N + 1
Rx+/Tx+
¡
çè çè ¡
Rx+/Tx+
GND
¡
çè çè ¡
GND
CABLE INSTALLATION
In line with IEE Wiring Regulations, the following should be observed:
Extra low voltage control cables (ELV) and mains power cable should be segregated by a
minimum distance of 50mm
If cables must cross, it is recommended that they cross at right angles
Airedale recommends that ELV cables are screened at one end to earthed enclosures
C000
