AIREDALE SmartCool D - Outdoor Unit Specifiers Guide; Outdoor Unit Identification System; Outdoor Unit Introduction

SmartCool
TM
- D
Precision Air Conditioning
190
Precision Air Conditioning
Installation, Maintenance and Commissioning Manual :6877419 02/2013
Specifier’s Guide Outdoor unit

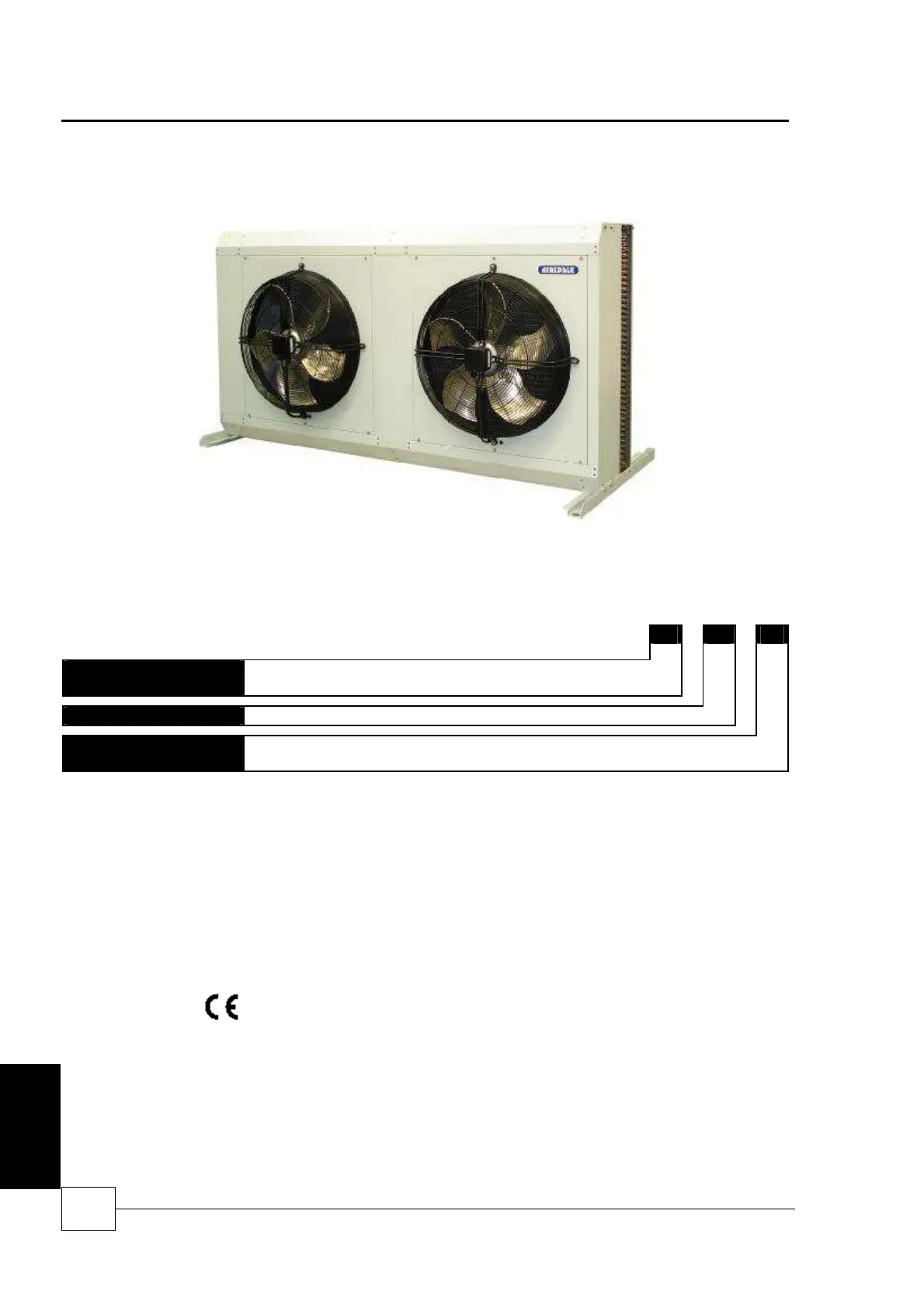

CR50H
(shown with top legs removed)
Unit Identification
CR
12
H
C
R
DR
Condenser - R410A
Dry Cooler – Water / Glycol
10
-
165
Model Size (expressed as Total Heat Rejection in kW)
H
Horizontal Air Discharge
V
Vertical Air Discharge
Introduction
This range comprises 16 Air Cooled Condenser models sizes with total heat rejection
12 - 165kW and 14 air cooled dry cooler models with total heat rejection 10 – 95 kW
Custom designed for a small footprint, low sound level, slimline and aesthetically
pleasing appearance.
Available in either horizontal or vertical air discharge orientation,
please specify at order.
All units are despatched following extensive leak and pressure testing and carry a holding
charge of inert gas.
The condenser range has been designed and optimised for operation with ozone benign
refrigerant R410A.
CE Directive
Airedale certify that the equipment detailed in this manual conforms with the following
EC Directives:
Electromagnetic Compatibility Directive (EMC)
2004/108/EC
Low Voltage Directive (LVD)
2006/95
/EC
Machinery Directive (MD)
89/392/EEC in the
version 2006/42/EC
Pressure Equipment Directive (PED)
97/23/EC
To comply with these directives appropriate national & harmonised standards have been
applied. These are listed on the Declaration of Conformity, supplied with each product.
OUTDOOR
