AIREDALE SmartCool D - Installation Data - Unit Handling; Unit Stacking Guidelines

SmartCool
TM
- D
Precision Air Conditioning
194
Precision Air Conditioning
Installation, Maintenance and Commissioning Manual :6877419 02/2013
Installation data

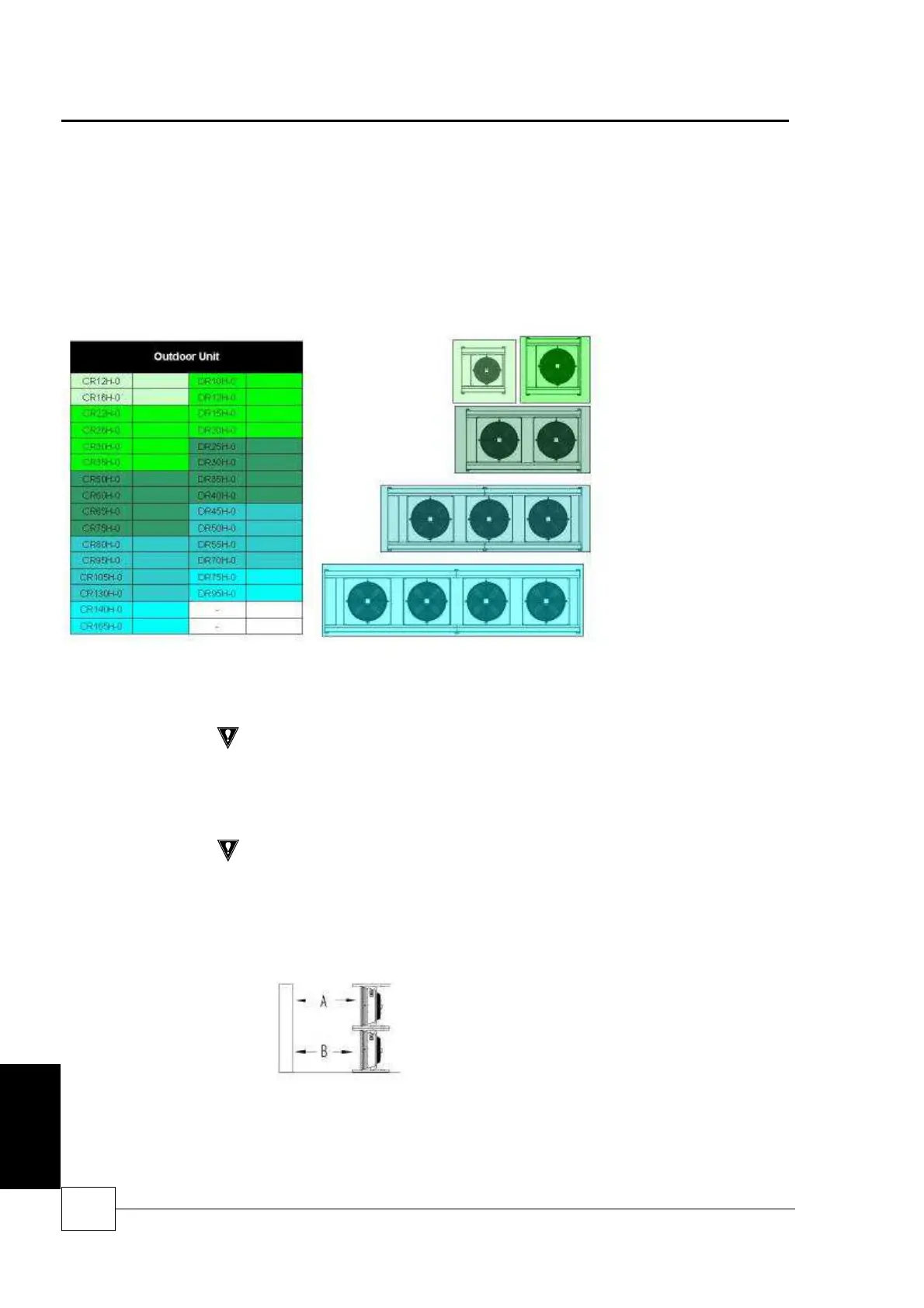

The range of condensers and dry coolers are grouped together for easier identification.
Case sizes 1-5 (16 Condensers, 14 Dry coolers)
Case 1 and 2
Case 3
Case 4
Case 5
Dimensions / Weights / Positioning
IMPORTANT
Unit diagrams can be supplied on request.
The following illustrations show the unit following fixing leg re
-
orien
tation,
instructions are provided for this at delivery.
IMPORTANT
The legs attached to the top of the unit are for lifting and stacking and may be removed and stored
safely if not required.
Stacking units
Only 2 units may be stacked together. In addition to the standard minimum clearances around the
unit further space is required.
Positioning condensers on top of each other can cause the bottom unit to be starved of
air.
A= 1.5m (Two stacked units)
B= 0.5m (For single unit)
A
B
B
C
C
D
D
E
E
B
C
D
A
E
OUTDOOR
