AIREDALE SmartCool D - Outdoor Unit Dimensions - Horizontal Case Size 1 & 2; Outdoor Unit Dimensions - Vertical Case Size 1 & 2

Precision Air Conditioning
SmartCool
TM
– D
Precision Air Conditioning
195
Installation, Maintenance and Commissioning Manual :6877419 02/2013

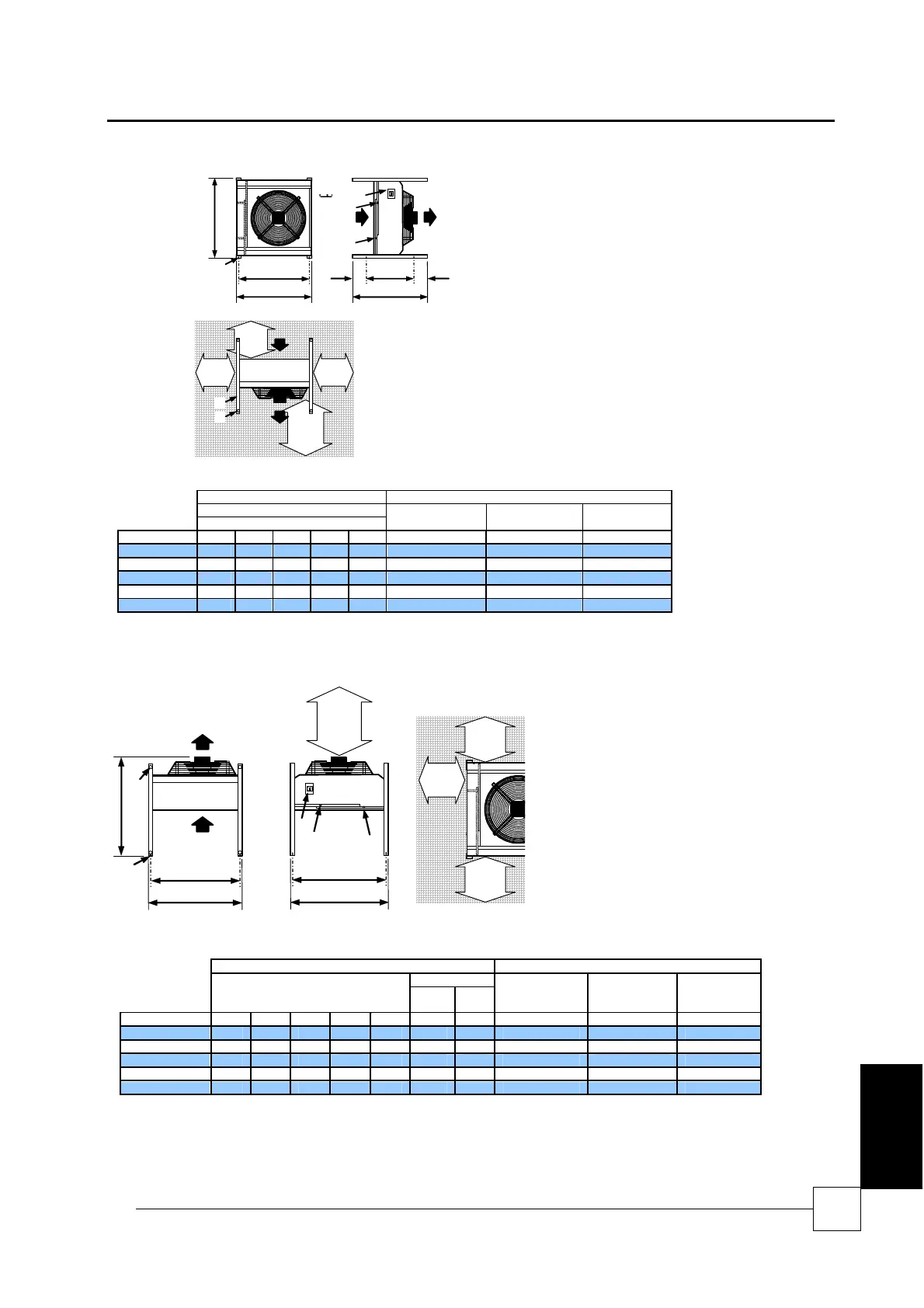

Horizontal case size 1 and 2(1 fan)
3000
(2)
A
D
B
(5a)
(4)
500
(2)
500
(2)
500
(2)
(1)
(1)
(1)
C
E
(1)
150 150
(5b)
(3)
(6)
(7)
Diagram illustrated in mm
(1) Airflow
(2) Minimum clearances
(3) 12.7mm fixing hole
(4) Mains electric isolator
(5) Service connections to left hand side of the unit:
a = Discharge gas inlet (ALWAYS above (b))
b = Liquid outlet
(6) Top brackets may be used to secure unit of similar size
on top, using, 2 x 12.7mm fixing holes
(7) 40mm lifting holes
Horizontal case size1 (1 fan)
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Standard AC Fan Optional EC Fan Optional SCAF
A B C D E
CR12
907 972 1000 845 700 62 67 67
CR16
907 972 1000 845 700 70 76 75
CR22/DR10
1102 1167 1000 1040 700 77 83 88
CR26/DR12
1102 1167 1000 1040 700 93 105 90
CR30/DR15
1102 1167 1000 1040 700 90 96 101
CR35/DR20
1102 1167 1000 1040 700 106 118 103
Vertical case size 1 and 2 (1 Fan)
3000
(2)
(1)
D
A
B
(6)
(3)
(1)
C
E
(5b)
(4)
(
5
a
)
500
(2)
500
(2)
500
(2)
Diagram illustrated in mm
(1) Airflow
(2) Minimum clearances
(3) 12.7mm fixing hole
(4) Mains electric isolator
(5) Service connections to left hand side of the unit:
a = Liquid outlet
b = Discharge gas inlet
(6) 40mm lifting holes
Vertical case size1 (1 fan)
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Fan Options
Standard AC
Fan
Optional EC
Fan
Optional
SCAF
SCAF EC
A B C D E B B
CR12
907 1076 972 847 912 1080 1065 62 67 67
CR16
907 1076 972 847 912 1080 1065 70 76 75
CR22/DR10
1102 1090 1167 1042 1107 1130 1127 77 83 88
CR26/DR12
1102 1155 1167 1042 1107 1140 1170 93 105 90
CR30/DR15
1102 1090 1167 1042 1107 1130 1127 90 96 101
CR35/DR20
1102 1155 1167 1042 1107 1140 1170 106 118 103
OUTDOOR
