AIREDALE SmartCool D - Page 196

SmartCool
TM
- D
Precision Air Conditioning
196
Precision Air Conditioning
Installation, Maintenance and Commissioning Manual :6877419 02/2013

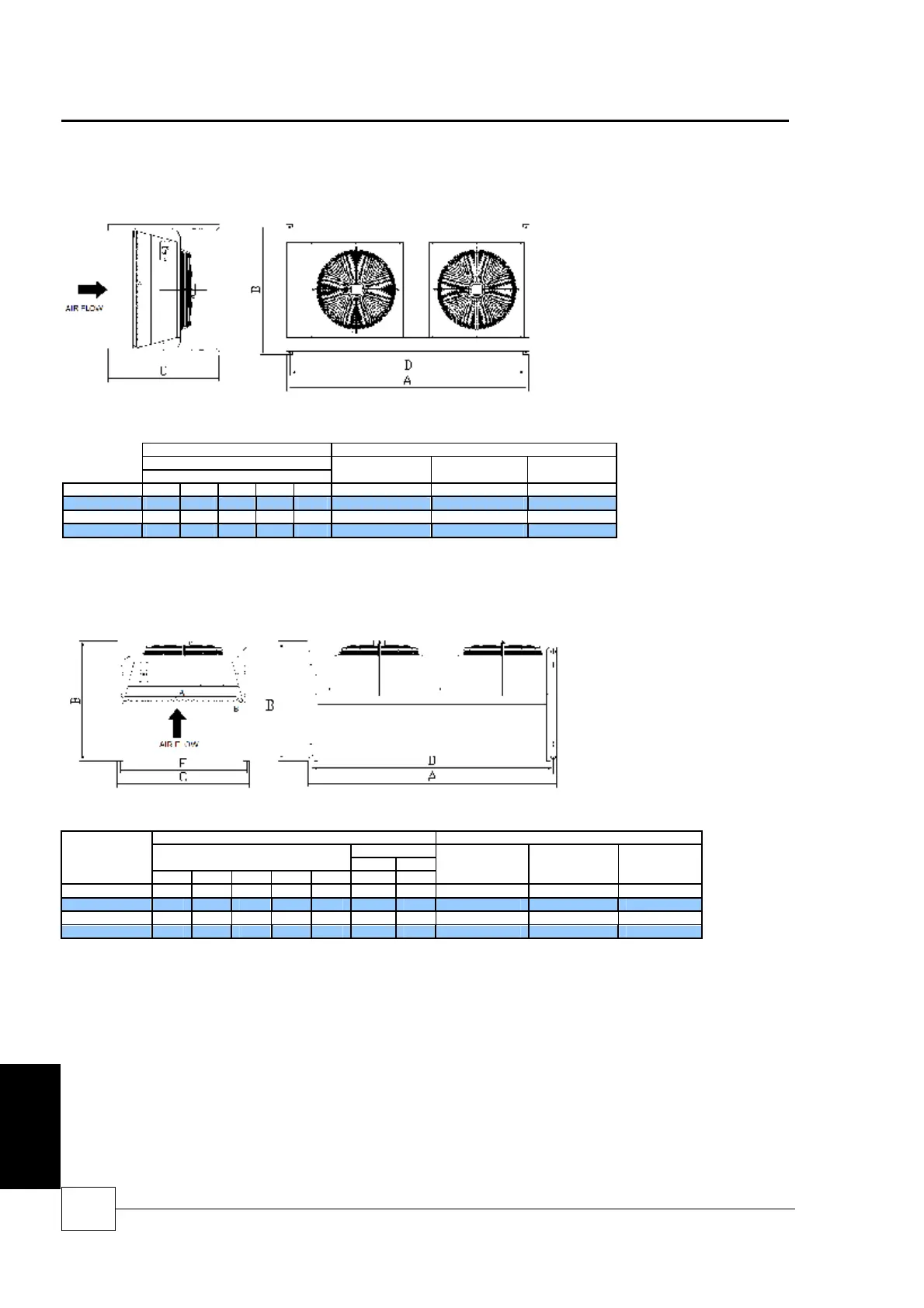

Horizontal case size 3 (2 Fans)
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Standard AC Fan Optional EC Fan Optional SCAF
A B C D E
CR50/DR25
2184 1167 1000 2121 700 132 145 154
CR60/DR30
2184 1167 1000 2121 700 165 188 159
CR65/DR35
2184 1167 1000 2121 700 162 175 184
CR75/DR45
2184 1167 1000 2121 700 195 218 189
Vertical case size 3 (2 Fans)
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Fan Options
Standard AC
Fan
Optional EC
Fan
Optional
SCAF
SCAF EC
A B C D E B B
CR50/DR25
2184 1090 1167 2124 1107 1130 1127 132 145 154
CR60/DR30
2184 1155 1167 2124 1107 1140 1170 165 188 159
CR65/DR35
2184 1090 1167 2124 1107 1130 1127 162 175 184
CR75/DR45
2184 1155 1167 2124 1107 1140 1170 195 218 189
OUTDOOR
