AIREDALE SmartCool D - Optional Short Case Axial Fan (SCAF) Dimensions

Precision Air Conditioning
SmartCool
TM
– D
Precision Air Conditioning
197
Installation, Maintenance and Commissioning Manual :6877419 02/2013

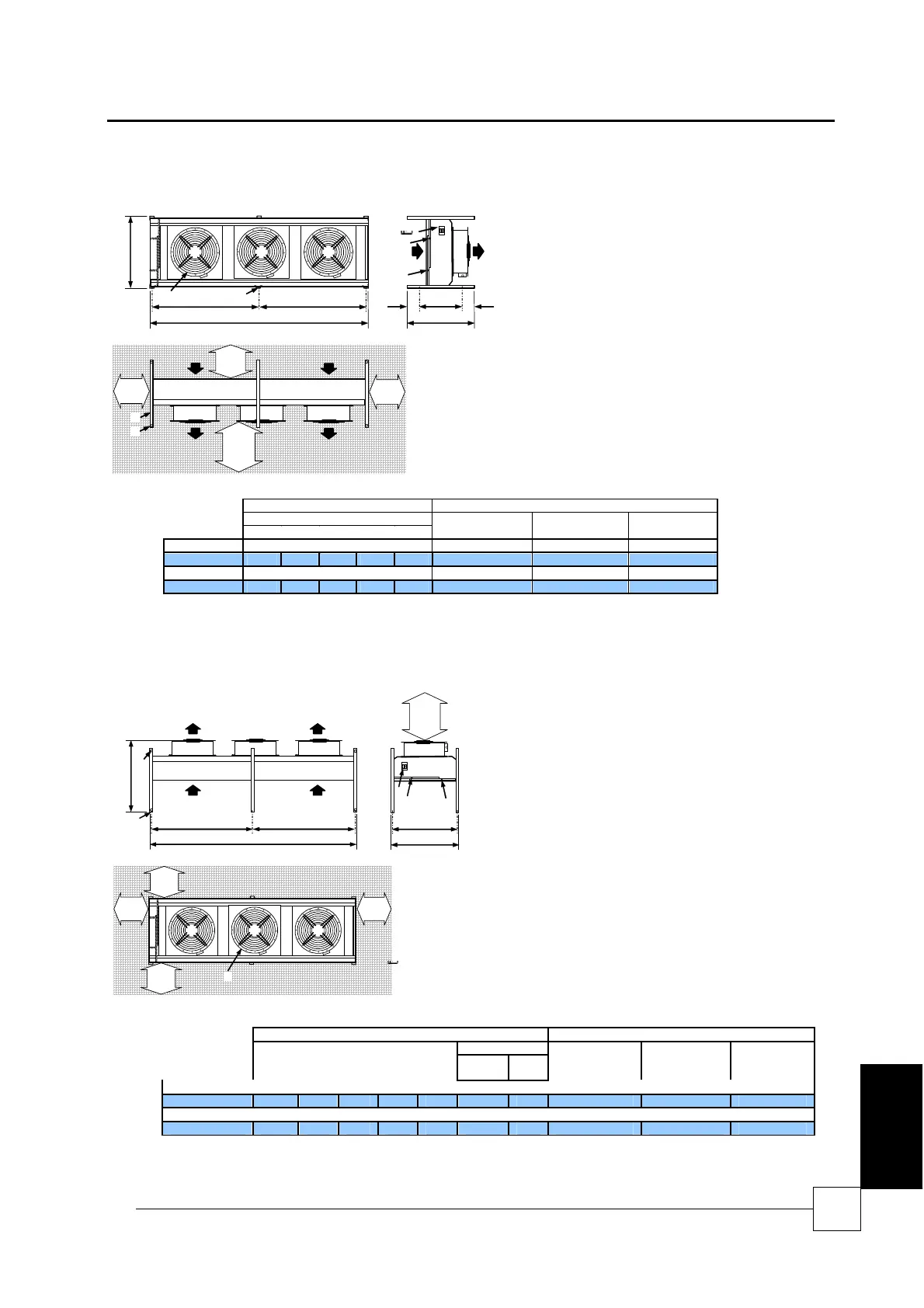

Horizontal case size 4 (3 Fans)
Optional Short Case Axial
Fan (SCAF)
3000
(2)
A
D
B
(5b)
(4)
500
(2)
500
(2)
500
(2)
(1)
(1)
(
1)
C
E
(1)
150 150
(6)
(3)
D
(1)
(1)
(5a)
(8)
(7)
Diagram illustrated in mm
(1) Airflow
(2) Minimum clearances
(3) 12.7mm fixing hole
(4) Mains electric isolator
(5) Service connections to left hand side of the unit:
a = Discharge gas inlet (ALWAYS above (b))
b = Liquid outlet
(6) Top brackets may be used to secure unit of similar size
on top, using, 2 x 12.7mm fixing holes
(7) 40mm lifting holes
(8) Optional Short Case Axial Fan with integral duct fixing
holes
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Standard AC Fan
Optional EC Fan Optional SCAF
A B C D E
CR80/DR40
3565 1167 1000 1752 700 208 228 242
CR95/DR50
3565 1167 1000 1752 700 258 293 249
CR105/DR55
3565 1167 1000 1752 700 260 280 294
CR130/DR75
3565 1140 1167 1752 1107 310 345 301
The SCAF fans in the horizontal mode do not obtrude past the mounting feet.
Vertical case size 4 (3 fans)
Optional Short Case Axial Fan (SCAF)
3000
(2)
C
E
(5b)
(4)
(
5
a
)
(1)
D
A
B
(6)
(3)
(1)
D
(1)
(1)
500
(2)
500
(2)
500
(2)
500
(2)
(7)
Diagram illustrated in mm
(1) Airflow
(2) Minimum clearances
(3) 12.7mm fixing hole
(4) Mains electric isolator
(5) Service connections to left hand side of the unit:
a = Liquid outlet
b = Discharge gas inlet
(6) 40mm lifting holes
(7) Optional short case axial fan with integral duct fixing holes
Vertical case size 3 (3 fans)
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Fan Options
Standard AC
Fan
Optional EC
Fan
Optional
SCAF
SCAF EC
A B C D E B B
CR80/DR40
3565 1090 1167 1753 1107 1130 1127 208 228 242
CR95/DR50
3565 1155 1167 1753 1107 1140 1170 258 293 249
CR105/DR155
3565 1090 1167 1753 1107 1130 1127 260 280 294
CR130/DR75
3565 1155 1167 1753 1107 1140 1170 310 345 301
OUTDOOR
