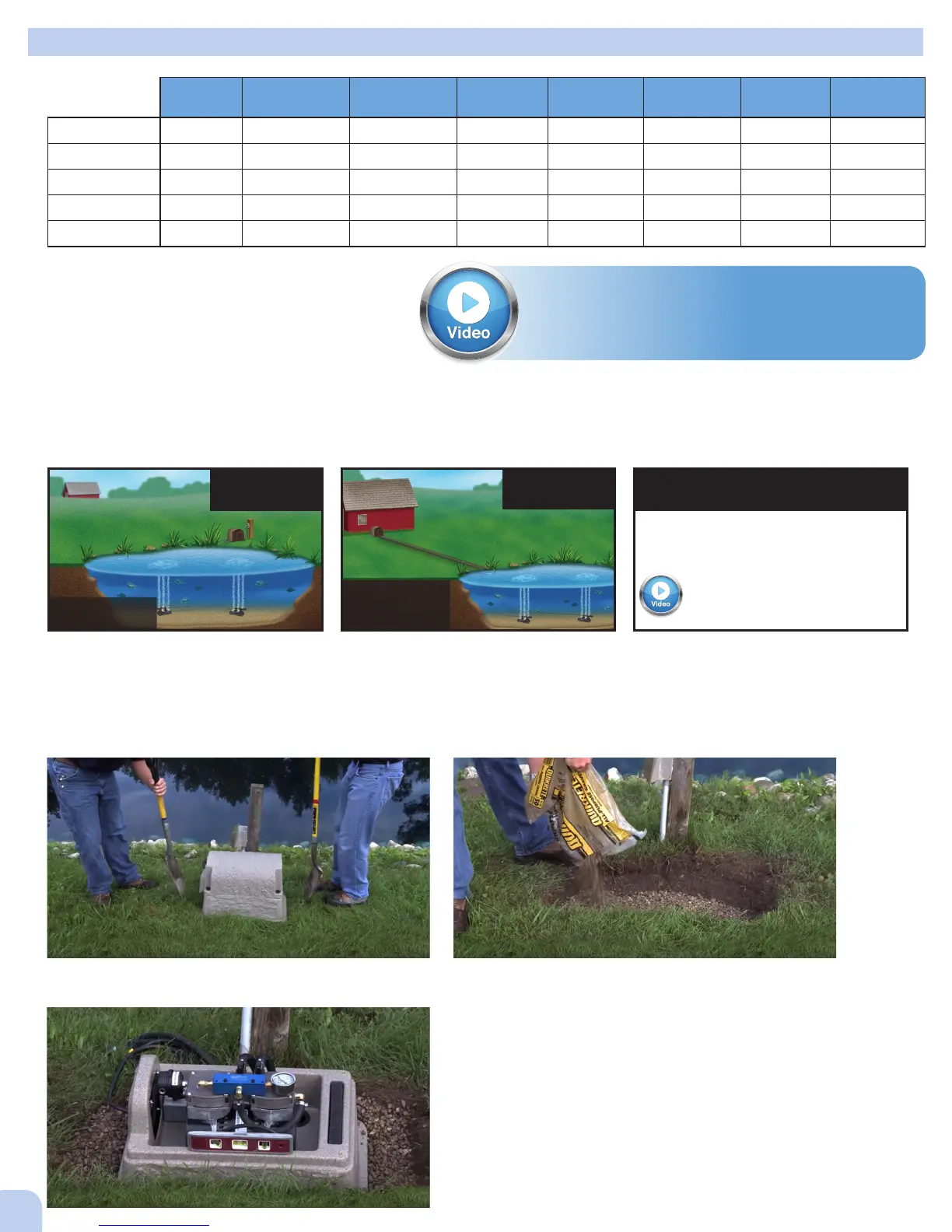

Airmax PondSeries PS10 - System Installation; Select a Location for the Aeration Cabinet; Prepare the Ground Surface and Place the Cabinet

2. System Installation
ENGLISH
HP
Running
Amps
Volts Max CFM Power Cord
Max Pond
Size
Max
Depth*
# Diffusers
PS10
1/4 1.6 or 0.8 115V or 230V 2.3 6' 1 Acre 50' 1
PS20
1/2 4.1 or 2.1 115V or 230V 4.7 6' 2 Acres 50' 2
PS30
1/2 4.1 or 2.1 115V or 230V 4.7 6' 3 Acres 50' 3
PS40
3/4 5.3 or 2.7 115V or 230V 5.8 6' 4 Acres 50' 4
PS80
3/4 (x2) 10.6 or 5.3 115V or 230V 11.6 6' 8 Acres 50' 8
Tools Required:
• Placement Rope • Utility razor knife
• Level • Boat/Raft/Swimsuit
• Small stone or gravel • Shovel
• Rake • Flathead screwdriver
• Permanent Marker • Coast Guard-approved life jacket
Tech Specs:
1. Place the cabinet on the ground in the selected location and mark
an area 6” wider than the base of the cabinet on all sides.
*Ponds greater than 21’ will require a Deep Water Kit
2. Move the cabinet and remove the sod from the area, filling in with
small stone or gravel. This allows for a firm base for the cabinet and
for drainage. Open the aeration cabinet by unscrewing the 4 lobed
thumb screws. Gently lift the cabinet lid and lay on its side next to
the base.
3. Place the cabinet onto the stone base and use your level to make
sure the cabinet is sitting secure and level.
STEP TWO: Prepare the Ground Surface and Place the Cabinet
See Video Instructions of the
Airmax
®
Aeration System installation online at
airmaxeco.com/PondSeriesAeration
Option A
Pond’s Edge
Option B
Away from
Pond’s Edge
If a power source is available near the pond’s
shore, locate the cabinet at the pond’s edge for
quicker installation.
• Locate cabinet on a solid surface with adequate strength for the weight of the unit.
• Locate cabinet away from irrigation sprinklers.
• Cabinet must always remain above the high water mark.
Ý Attention: For airline that runs longer than 100’, connector kits are required (sold separately). See Page 9.
If a power source is not available near the pond’s
shore or you would prefer to install the cabinet
in another location, install Direct Burial Airline(s)
(sold separately) from the cabinet’s location to
the pond’s edge.
Use a single airline from cabinet to shoreline
with valves at pond’s edge.
STEP ONE: Select a Location for the Aeration Cabinet
Learn about installing an optional
Remote Manifold Kit online at
airmaxeco.com/RemoteManifold
Option B with Remote Manifold
4
