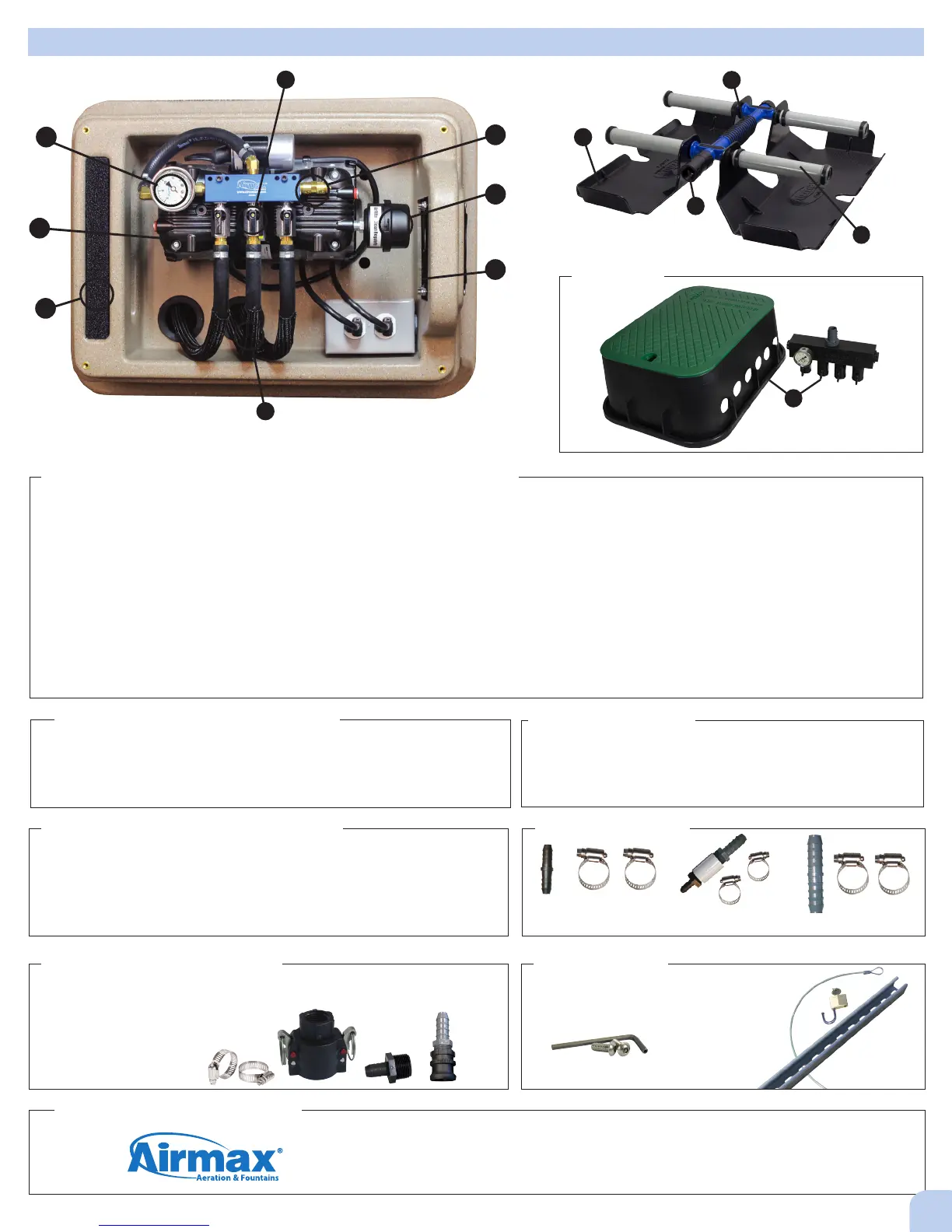

Airmax PondSeries PS10 - Troubleshooting: Diffuser and Airflow Issues; Replacement Parts; Accessories; Cabinet & Compressor Replacement Parts; ProAir 4 Replacement Parts

1. RP Series SilentAir
™
High Efficiency Compressor
#510503 – RP25 (87R) 1/4 HP Single Piston Compressor, 115V
#510504 – RP25 (87R) 1/4 HP Single Piston Compressor, 230V
#510501 – RP50 (87R) 1/2 HP Dual Piston Compressor, 115V
#510505 – RP50 (87R) 1/2 HP Dual Piston Compressor, 230V
#510502 – RP75 (72R) 3/4 HP Dual Piston Compressor, 115V
#510506 – RP75 (72R) 3/4 HP Dual Piston Compressor, 230V
#510510 – RP25 (87R) 1/4 HP Maintenance Kit
#510511 – RP50 (87R) 1/2 HP Maintenance Kit
#510512 – RP75 (72R) 3/4 HP Maintenance Kit
Cabinet & Compressor Replacement Parts
2. #490239 – Pressure Relief Valve
3. #490272 – Pressure Gauge
4. Airflow Manifold Assembly
#600186 – PS10
#600242 – PS20
#600243 – PS30
#600241 – PS40
#600246 – PS80
5. Cooling Fan
#510345 – Cooling Fan for 115V Systems
#510344 – Cooling Fan for 230V Systems
6. # 510395 – Air Intake Pre-Filter
#510417 – Air Intake Pre-Filter (PS80 Only)
7. #490194 –
3
⁄8” Flex-Tube
8. Air Filter
#510150 – Air Filter, Complete
#510151 – Air Filter Media Only
#510118 –
3
⁄8” Weighted Airline, 100’ Roll
#510119 –
5
⁄8” Weighted Airline, 100’ Roll
#510120 –
5
⁄8” Direct Burial Airline, 100’ Roll
EasySet
™
Airline
THANK YOU FOR CHOOSING
ProAir
™
4 Replacement Parts
9. #490332 – Diffuser Manifold
10. #490337 – Diffuser Sled
11. #510168 – PTFE 6” Membrane Stick
12. #490340 – Check Valve
*#490158 – 1” Marine Stainless Hose Clamp
*#490118 – ½” to ¾” Insert Reducer Adapter
*#490118 –
3
⁄8” to ¾” Insert Reducer Adapter
*Not shown in Diagram
ENGLISH
Connector Kits
3/8” Connector Kit
#490204
3/8” to 5/8” Connector Kit
#490205
5/8” Connector Kit
#490206
9
10
11
12
13
Optional Remote Manifold Kits
Optional Deep Water Kit Security Kits
13. #600192 – Airmax
®
PS20 2-Port Remote Manifold Kit
#600190 – Airmax
®
PS30 3-Port Remote Manifold Kit
#600194 – Airmax
®
PS40 4-Port Remote Manifold Kit
5
8
3
1
6
2
4
7
Optional
Optional Remote Manifold Kit
(Airmax
®
4-Port Manifold Kit Shown)
13
6. Replacement Parts / Accessories
For use on PondSeries
™
Systems when water is greater than 21' deep.
#510435 – PS10
#510436 – PS20
#510437 – PS30
#510438 – PS40
#510439 – PS80
#510430 – Security Stake Kit (Optional)
#510424 – Cabinet Lock Kit
Security Stake KitCabinet Lock Kit
www.airmaxeco.com
Cleaning Water Naturally
™
9
