1. Press to enter program setting.
(Temperature reading shall be flashing on LCD)
2. Press to set desired
for 1st program-period(event).
3. Press after temperature-setpoint for
program-period completed.
(you shall read "Hour & Start Time" begin flashing)
4. Press to set desired for
1st program-period (event).
6.Repeat programming procedure
to complete each of temperature & time setpoints
for every program-period(event) of weekdays(5-d).
And to complete programming Saturday & Sunday
after programming weekdays was completed.
7. Pressing and then
pressing to run programs.
temperature-setpoint
1st
time-setpoint
twice
5. Press to enter setting temperature setpoint for
program-period (event),after Time setpoint
of 1st program-period completed.
(flashing temperature reading appears on LCD again)
2nd
All 5 weekdays shall have same programming,
Saturday Sunday to be programmed separately.＆
Programming 5-1-1d
or
or
or
Factory preset programs period
(initial default)
Mode 5-1-1d P4 Factory Preset
Temperature
Mon. ~ Fri.
Time
Heating mode Cooling mode
MORN(P1) 6:00 70 (21 ) 75 (24 )
DAY(P2) 8:30 60 (15.5 ) 85 (29.5 )
EVEN(P3) 4:30 PM 70 ( 21 ) 75 (24 )
NIGHT(P4) 10:30 PM 65 (18.5 ) 80 (26.5 )
Temperature
Saturday Time
Heating mode Cooling mode
MORN(P1) 7:00 70 (21 ) 75 (24 )
DAY(P2) 8:30 70 (21 ) 85 (29.5 )
EVEN(P3) 4:30 PM 70 (21 ) 75 (24 )
NIGHT(P4) 10:30 PM 65 (18.5 ) 80 (26.5 )
Temperature
Sunday Time
Heating mode Cooling mode
MORN(P1) 7:00 70 (21 ) 75 (24 )
DAY(P2) 8:30 60 (15.5 ) 85 (29.5 )
EVEN(P3) 4:30 PM 70 ( 21 ) 75 (24 )
NIGHT(P4) 10:30 PM 65 (18.5 ) 80 (26.5 )
°F
°C
°F
°F
°C
°C
°F
°C
°F
°C °C
Temperature
Mon ~ Fri Time
Heating mode Cooling mode
MORN(P1) 6:00 70(21)75(24 )
DAY(P2) 8:30 60 ( 15.5 ) 85 (29.5 )
NOON(P3) 12:00pm 70 (21 ) 75 (24 )
BREAK(P4) 2:00pm 60 (15.5 ) 85 (29.5 )
EVEN(P5) 4:30pm 70 ( 21 ) 75 (24 )
NIGHT(P6) 10:30pm 65 (18.5 ) 80 (26.5 )
Temperature
Saturday Time
Heating mode Cooling mode
MORN(P1) 7:00 70 (21 ) 75 (24 )
DAY(P2) 8:30 70(21 )75(24 )
NOON(P3) 12:00pm 70 (21 ) 75 (24 )
BREAK(P4) 2:00pm 70 (21 ) 75 (24 )
EVEN(P5) 4:30pm 70 (21 ) 75 (24 )
NIGHT(P6) 10:30pm 65 (18.5 ) 80 (26.5 )
Temperature
Sunday Time
Heating mode Cooling mode
MORN(P1) 7:00 70 (21 ) 75 (24 )
DAY(P2) 8:30 70(21 )75(24 )
NOON(P3) 12:00pm 70 (21 ) 75 (24 )
BREAK(P4) 2:00pm 70 (21 ) 75 (24 )
EVEN(P5) 4:30pm 70 (21 ) 75 (24 )
NIGHT(P6) 10:30pm 65 (18.5 ) 80 (26.5 )
Mode 7-d P6 factory preset
and will not appear in P6 mode.NOON BREAK
°C
°F
°C
°C
°C
°F
°F
°F
°F
°F
°C
°C
Within programming mode, transmitter thermostat shall automatically resume its functioning 30 seconds
after there was no any further data input.

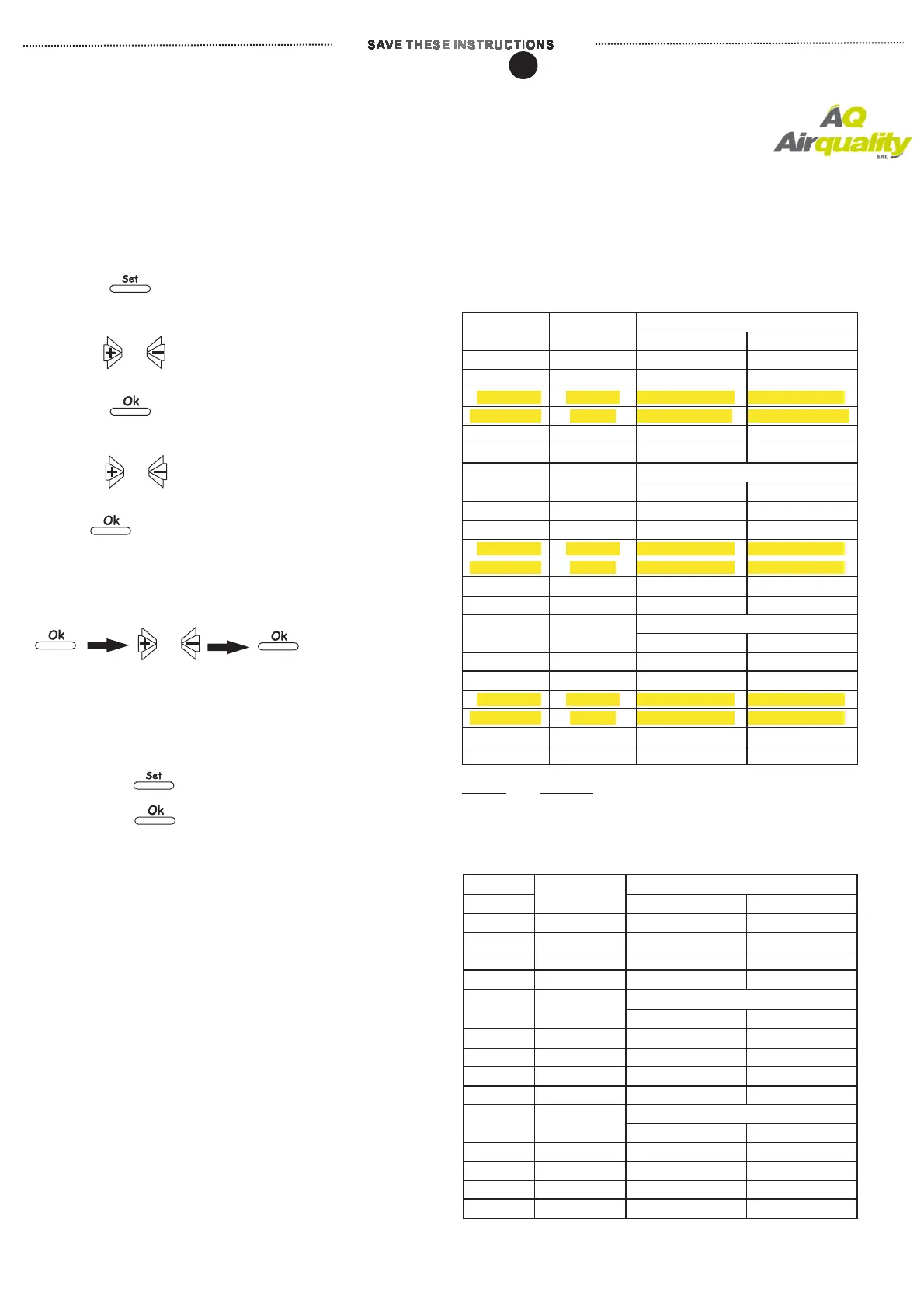

PROGRAMMING INSTRUCTIONS- -Transmitter Thermostat
