ELECTRICAL
G - 7
G

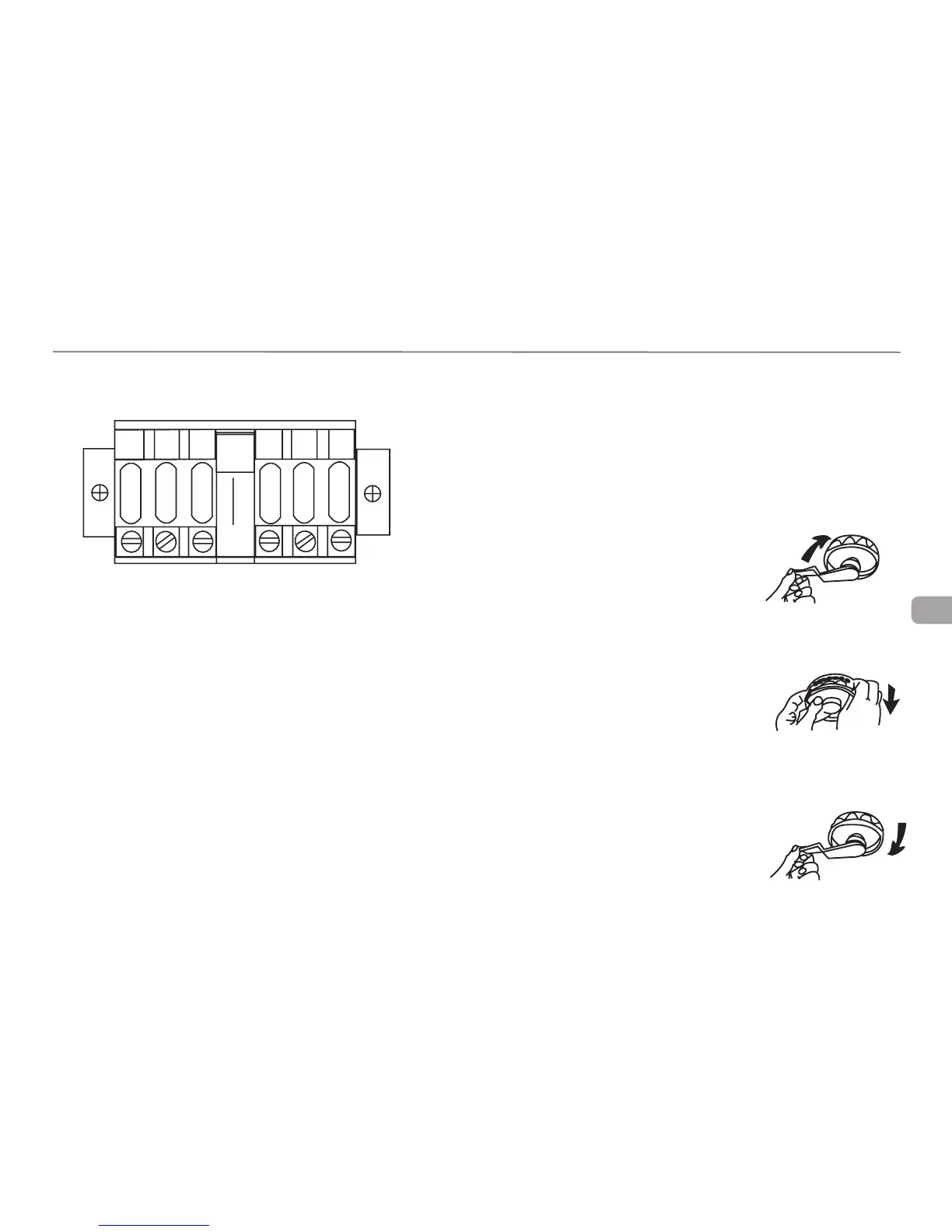

12-Volt Circuit Diagram
Circuit 1 - Bedroom, Bath fan, Storage compartment lights
Circuit 2 - Living Area, Galley, Radio
Circuit 3 - Water pump, range, Vents/Lights, Refrigerator
* - 12 Volt feed from battery disconnect
Circuit 4 - TV Jacks
Circuit 5 - Ceiling fan, Bath Lights
Circuit 6 - Hitch jack & light, Furnace
TV ANTENNA
Manufacturer:
Winegard Company
3000 Kirkwood Street
Burlington, Iowa 52601
Phone: 800-843-4741
Raising Antenna to Operating Position
Turn elevating crank in “UP” direction until some
resistance to turning is noted. Antenna is now in
operating position. Check to make sure switch on
front TV jack is on.
Rotating Antenna
Make sure antenna is in “UP” position. Pull down
on directional handle with both hands until it disen-
gages ceiling plate and rotate for best picture and
sound on television set.
Lowering Antenna to Travel Position
20
20
20
20
20
20
*
1
2
3
4
5
6
Raising Antenna
Rotating Antenna
Lowering Antenna
