Spare Parts
102
Number
Part Name
Number
Part Name
Number
Part Name
Number
Part Name
1
Condenser
Fan
10
Panel, Middle
Right
19
Panel,
Middle Front
Right
28
Panel, Right
Threaded
Panel
Assembly
2
Panel, Top
11
Panel, Bottom
Right
20
Panel,
Middle Left
Front
29
Supply Fan
3
Condenser
Coil
12
Left Threaded
Panel
Assembly
21
Damper-1
30
Panel, Bottom
Back,
4
Corner Post,
Back Right
13
Electrical
Expansion
Valve
22
Panel,
Upper Front
31
Panel, Middle
Back
5
Installation
Support Bar
14
Sight Glass
(Obsolete)
23
Corner Post,
Front Left
32
Panel, Upper
Back
6
Corner Post,
Front Right
15
Filter Drier
24
Panel,
Upper Left
33
Damper-2
7
Main Filter
16
Compressor
25
Corner Post,
Back Left
34
Invertor
8
Panel, Upper
Right
17
Subordinate Fi
Filter
26
Electrical
Heating
Element
35
Electrical Box
9
Evaporator
Coil
18
Panel, Bottom
Front
27
Panel,
Bottom Left

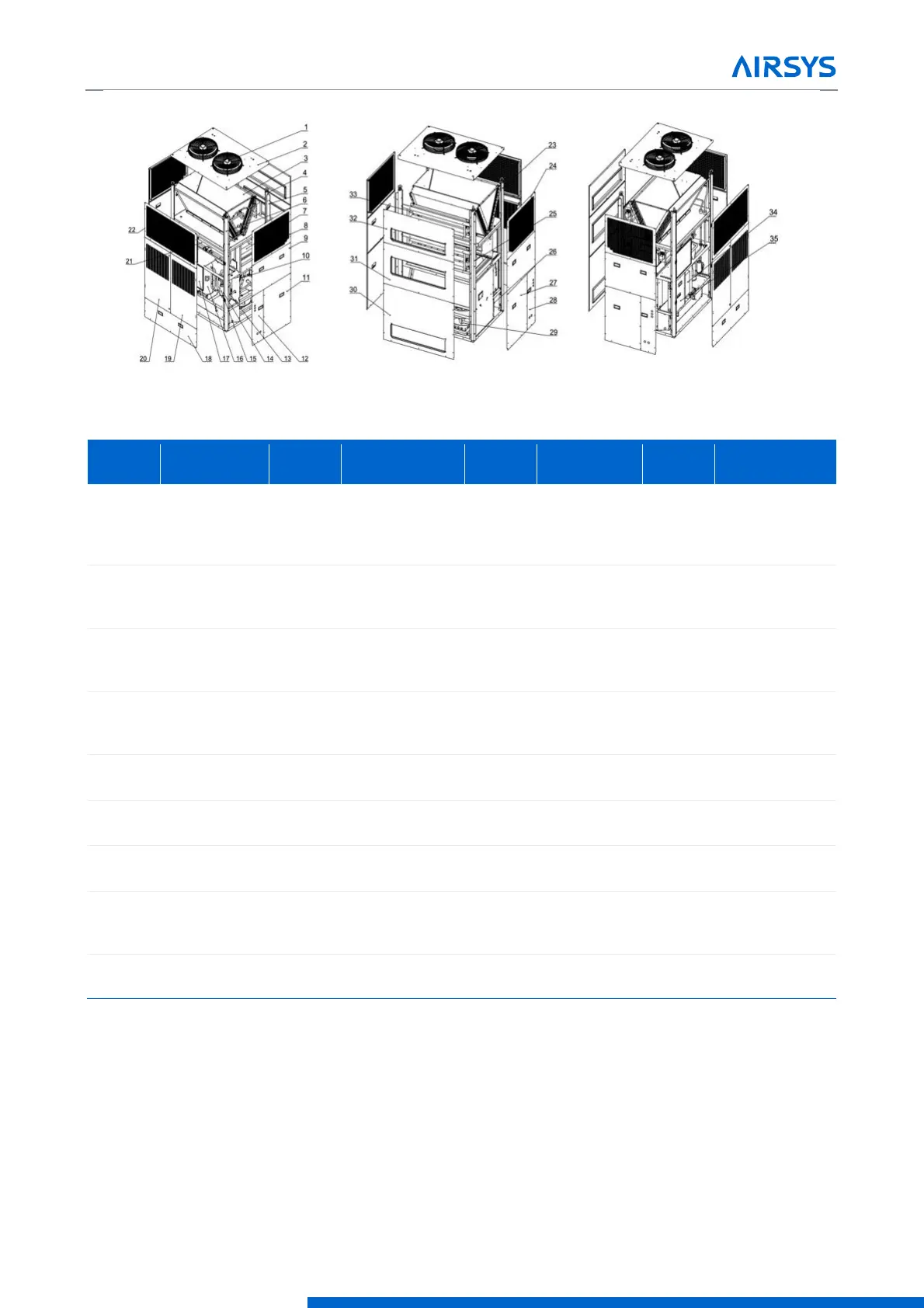

Table 8-3 Bottom Supply WPU Part Identification (B5)
