DUCTING RATING GUIDE
34
REVISION LEVEL A - 09/09/15
8
DUCTING RATING GUIDE FOR AIRTONIC D2
Heater Rating 6 - applies with a 60mm dia. outlet hood.
Heater Rating 12 - applies with a 75mm dia. outlet hood

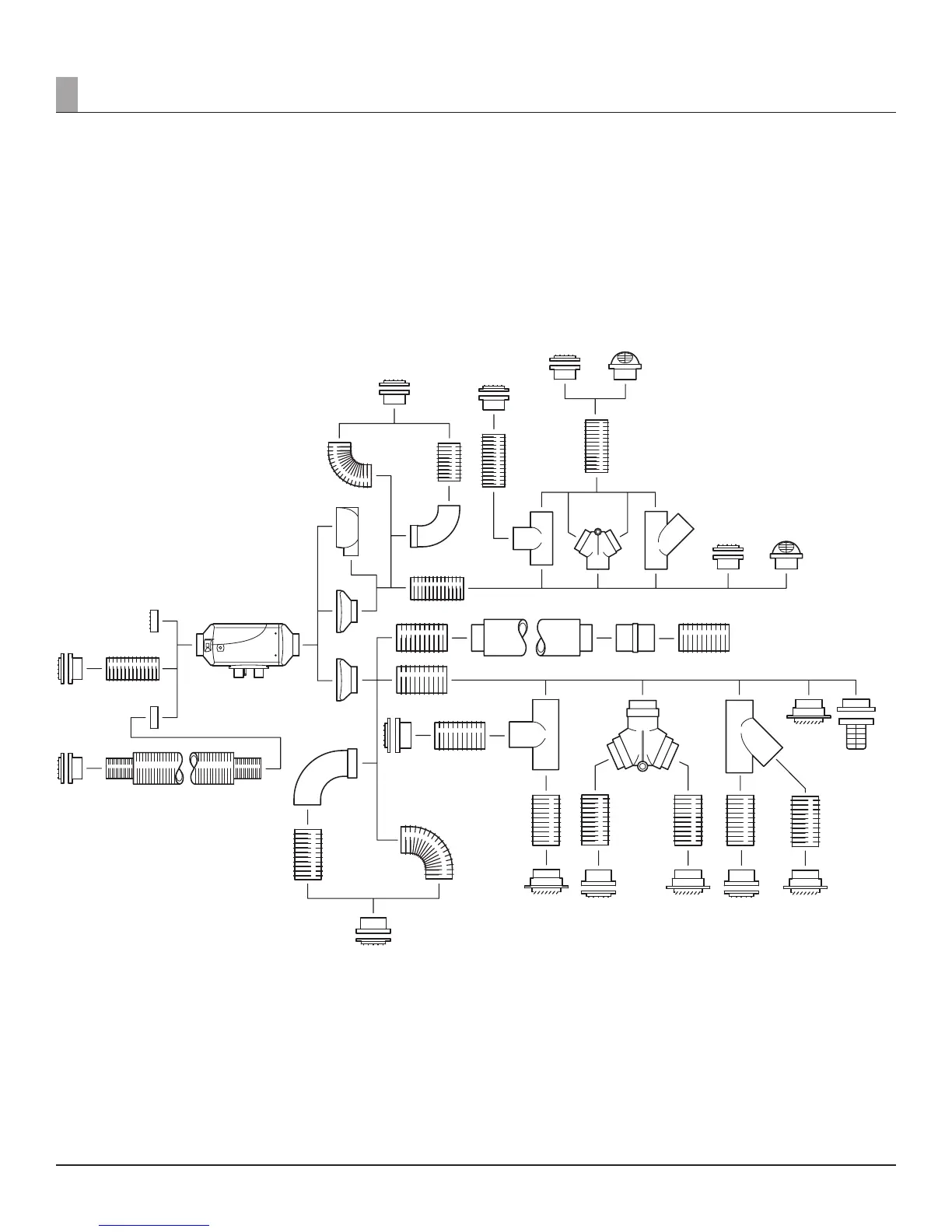

The sketch shows how the most important air ducting parts that can be used. They are not intended as examples of installation.
