07
AIRUSH.COM

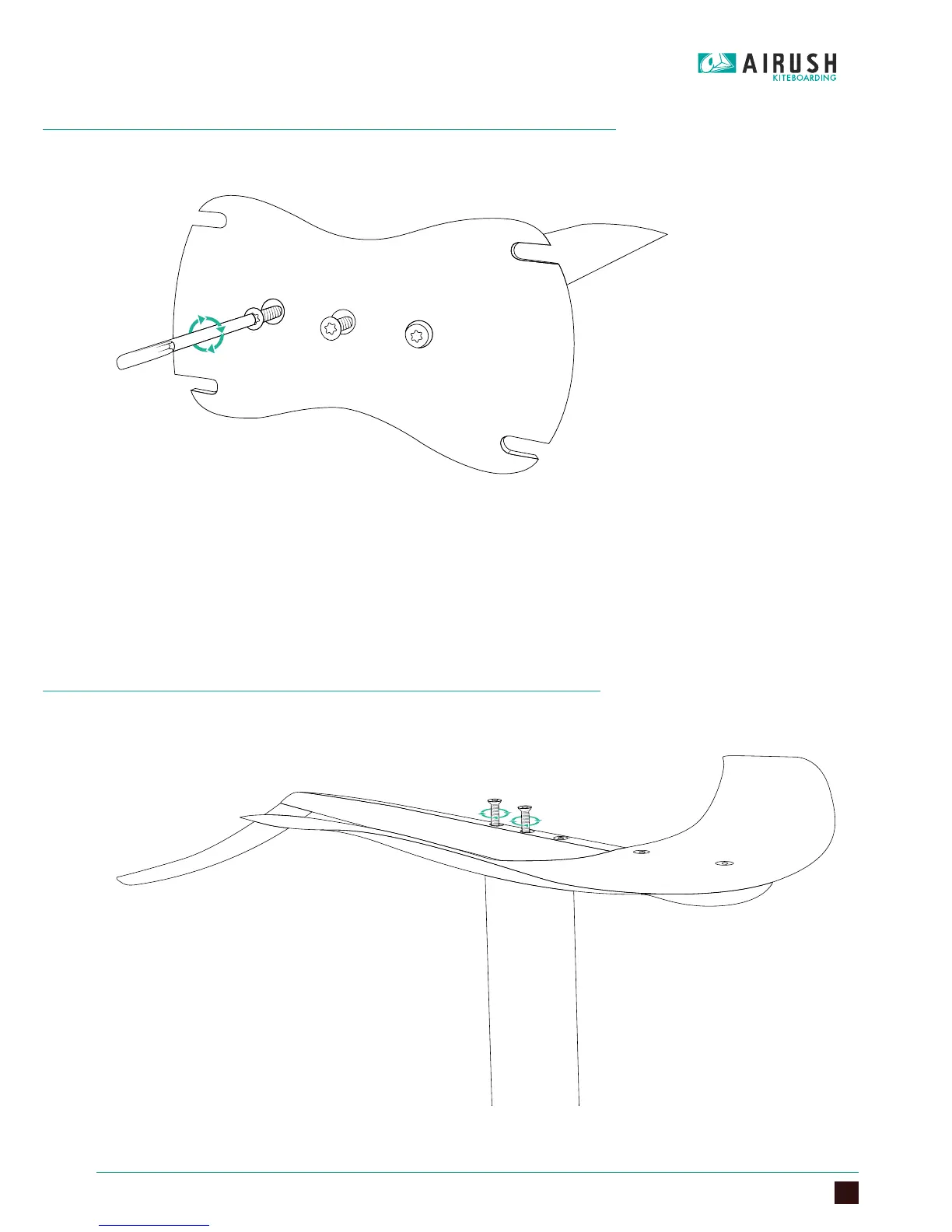

Plate Assembly
5.3/FOIL ASSEMBLY
Attach base to Mast (3 x 35mm M6 Counter sunk screws).
Fuselage to Mast Assembly
5.4/FOIL ASSEMBLY
Attach Fuselage to Mast (3 x 35mm M6 Counter sunk screws).
