ELECTRICAL CONNECTIONS
SM FLODCI 2-A.4 GB
10.2 FLO 24, FLO 30 DCI

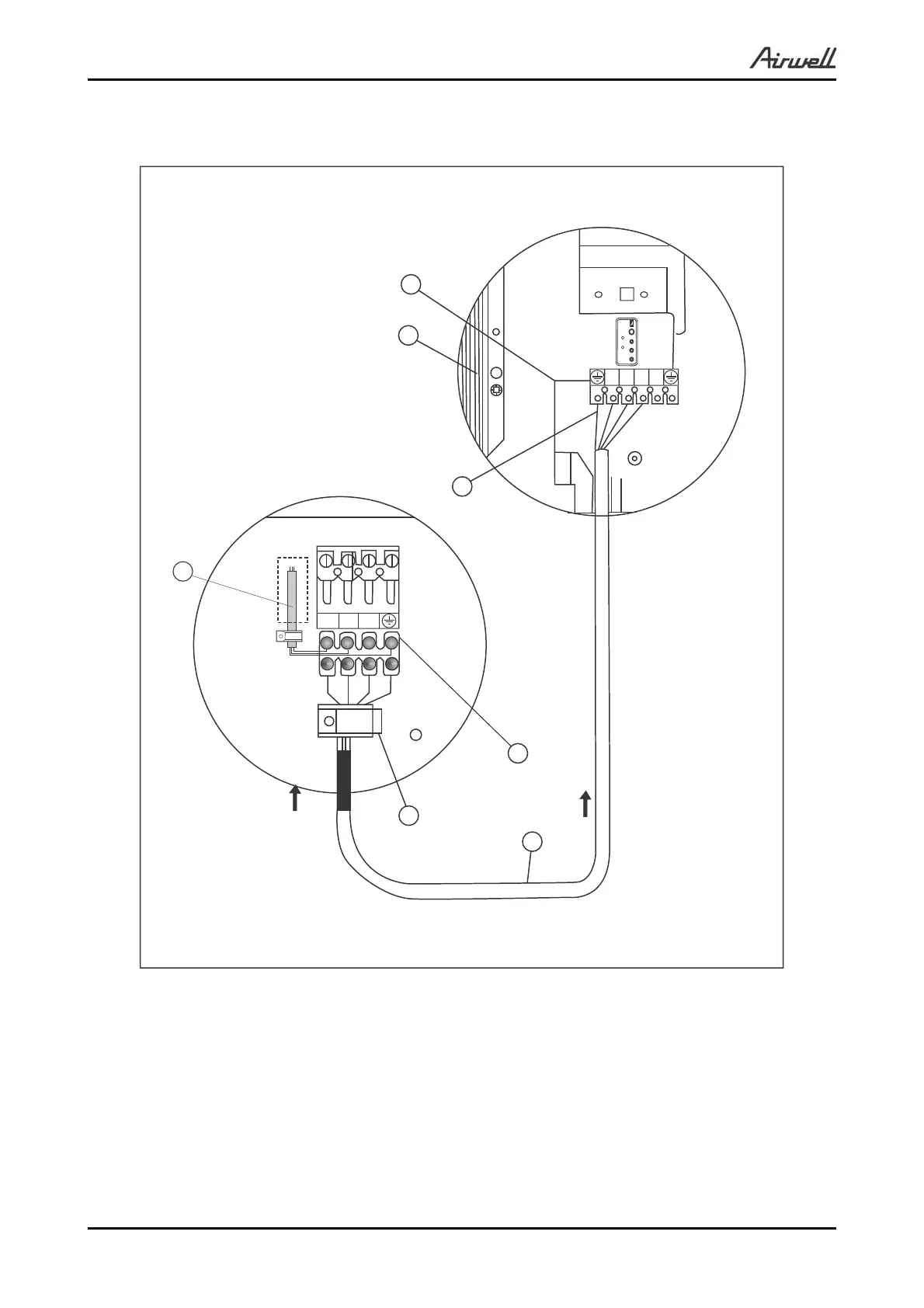

1. Indoor unit terminal
2. Ground wire.
4. Multiple wire cable.
3. Indoor coil.
5. Cable clamp.
6. Outdoor unit wire terminal.
A. OUTDOOR B. INDOOR
5
6
4/L
A
1
3
L
4
B
2
ESF-PWR
COOL
ESF-EN
RESET
HEAT
MODE
5/C
N
4/L
5/C
N
7
7. Power cable in the outdoor side
(only for outdoor unit power supply)
