7

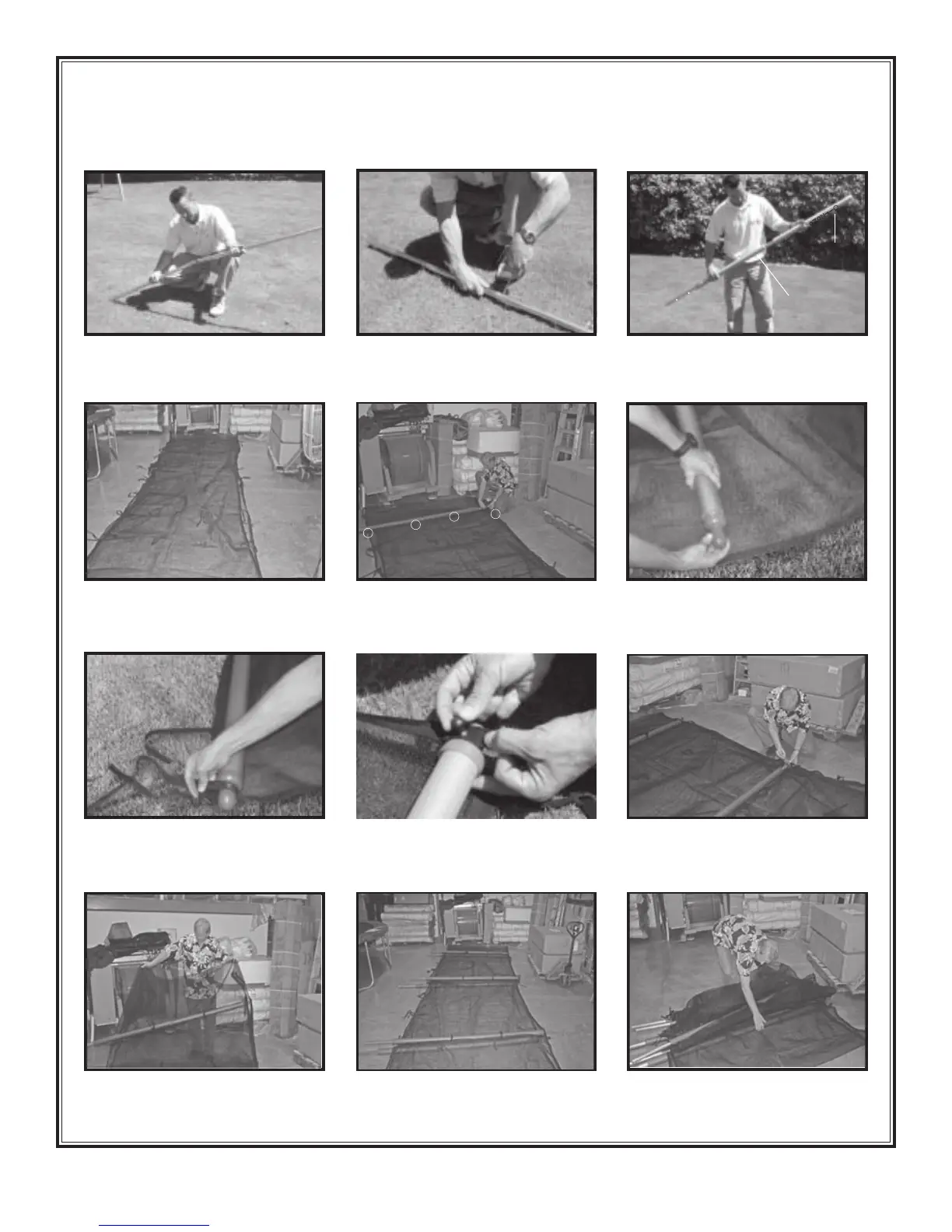

ENCLOSURE ASSEMBLY
Refer to PARTS LIST for identification of parts.
1 Slide upper pole onto lower pole. Align
the set screw holes.
2 Insert small set screw and lock washer
& tighten.
Repeat this procedure with all
remaining poles.
3 Starting from the upper pole, slide 2
foam tubes over pole assembly as
shown. Repeat with remaining poles.
WARNING: 2-3 adults in good physical condition are required for the following assembly. Wear proper shoes and maintain
balance to prevent a fall. Failure to follow all instructions and warnings exactly may result in serious injury.
4 Lay out the safety enclosure mesh as
shown. Tie straps must be on the outer
surface of mesh.
6 Place pole cap at top of upper pole
assembly and align pole cap bolt
holes. (Foam tubes should be pushed
up snug in the cap with no gaps.)
7 Place strap with grommet over hole in
pole cap. Align the holes.
8 Insert pole cap bolt as shown and
secure with nut.
9 Using 2 additional poles, repeat steps
5-8 twice more, continuing to use straps
that are located on the side of the mesh
that is facing upward.
1110 12
5
Choose one pole and place across mesh
aligning it with straps as shown. (Straps are
indicated with white circles).
Top of upper pole
should meet edge of mesh with grommets.
Tie middle pole straps around poles in a knot.
With 3 poles tied in place, lift one end
of the mesh and carefully turn it over
so the remaining 3 sets of tie straps
are facing up.
Using the remaining 3 poles,
repeat steps 5-9.
Gather mesh and attached poles.
Blank Foam
Airzone
Embossed
Foam
Top
End
Bottom
End
To Next Page
