AIS DiVi Installation Instructions (P-DVINSTRUCT01)

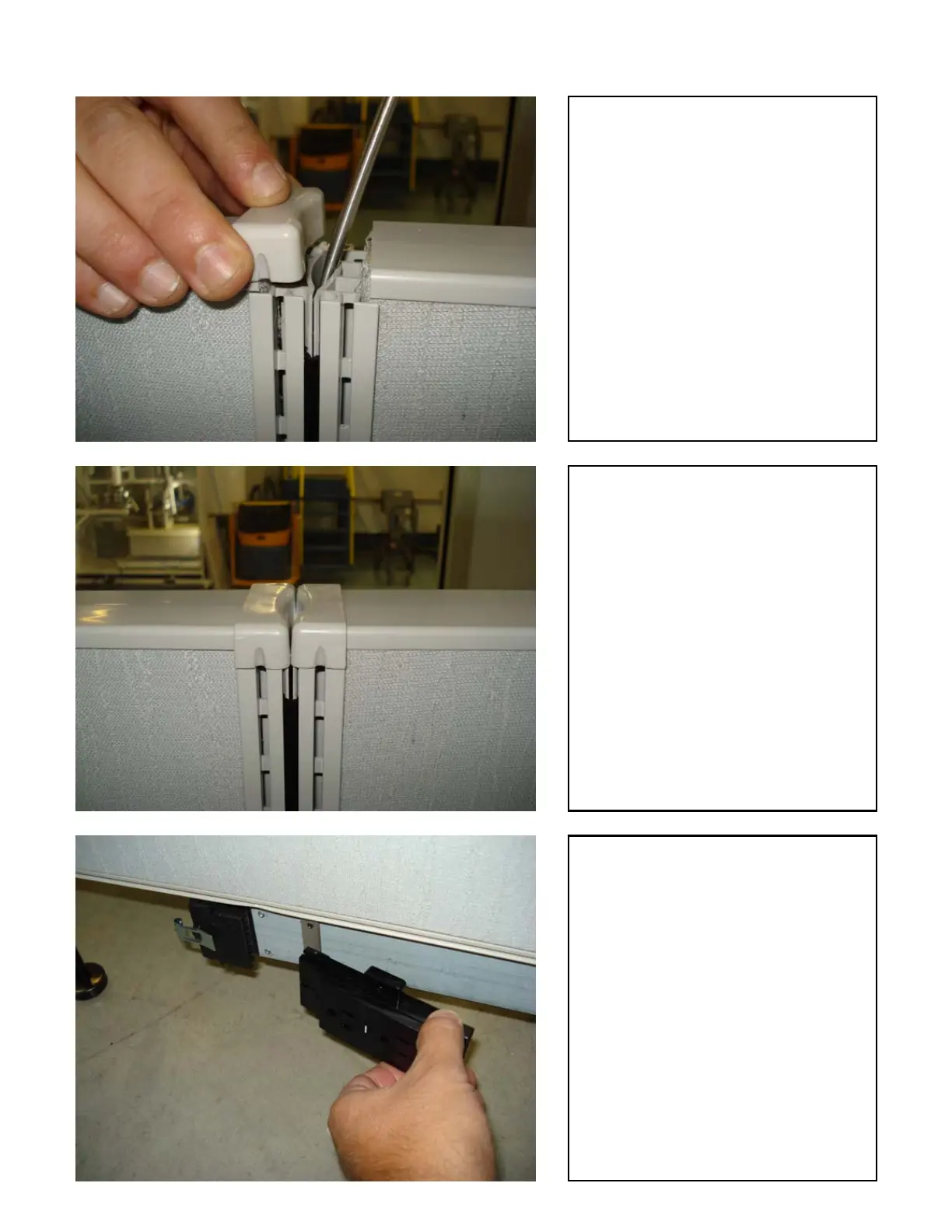

At 180 degree connections,
panels which ate not perfectly
level may bind at the top and
prevent cap from installing.
Leveling panels ussually
corrects this issue. However,
in certain cases, it may be
necessary to spread the
panels with a screwdriver to
make room for the topcaps.
Properly installed 180 degree
connections. NOTE THAT
HINGE POSITION ALLOWS
FOR TOPCAP
INSTALLATION.
Outlets are marked circuits 1-
4. The layout drawing will
indicate which outlet goes
where per the design. NOTE -
In some locations, ALL
ELECTRICAL COMPONENTS
must be installed by a licenced
electrician.
Install Duplex outlets by
aligning the outlet interface
with the powerway
interface as shown.
NOTE: Old style 180 degree, new style on P 14b
