AIS DiVi Installation Instructions (P-DVINSTRUCT01)

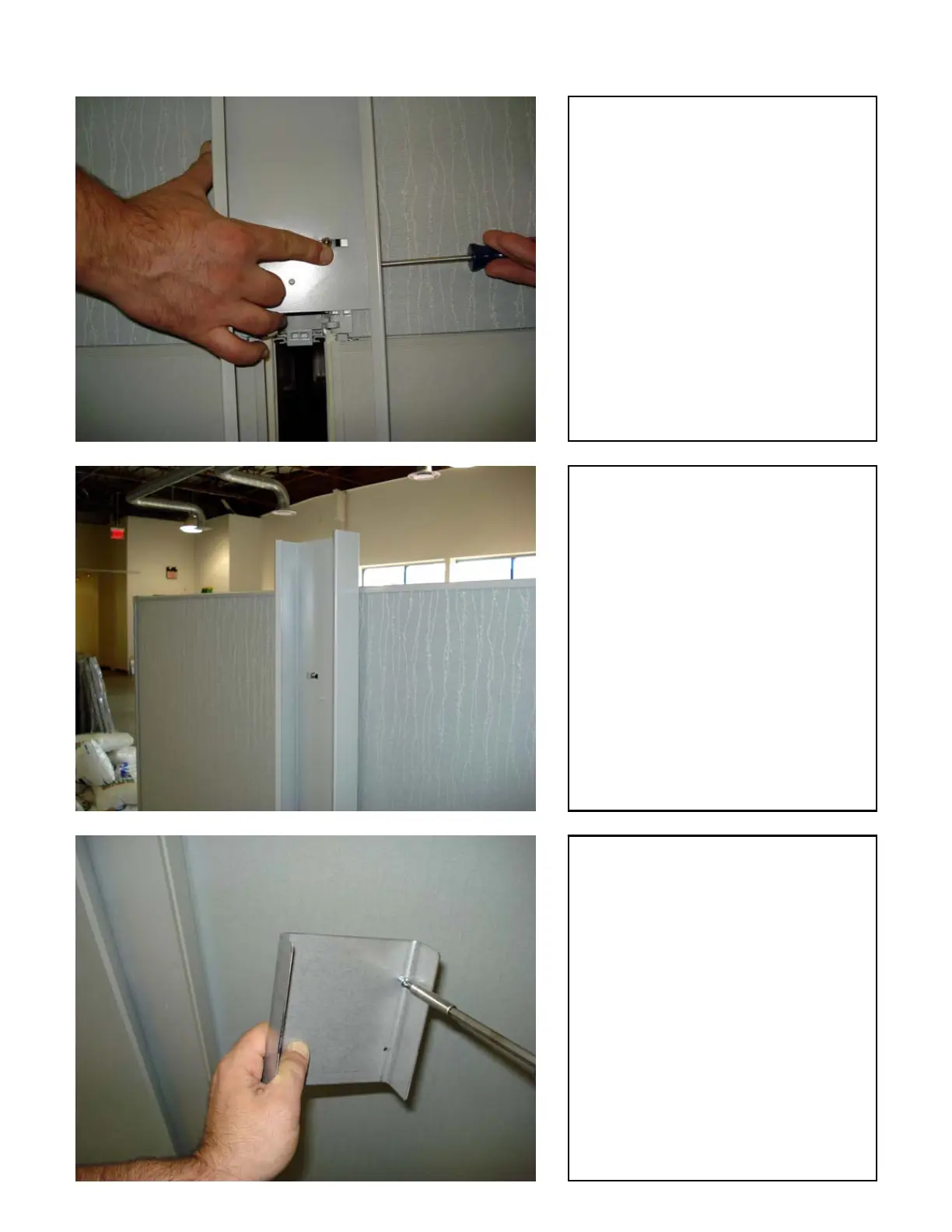

IMPORTANT – BOTTOM
BRACKETS ARE DESIGNED
TO ENGAGE HANGER
FRAME MOVING UPWARDS,
THUS LOCKING POLE ONTO
PANEL. With a screw driver,
LIFT bottom brackets up while
aligning bottom set of
punchouts. Push pole in to
trap bracket studs and prevent
the brackets from falling. Cap
loosely with acorn nuts.
PLUMB and level pole and
then tighten nuts.
Install the 4 locking screws in
the Double Channel Pole
Coupler.
IMPORTANT- Make sure
screws do not protrude past
back surface of the coupler at
this time.
