AIS DiVi Installation Instructions (P-DVINSTRUCT01)

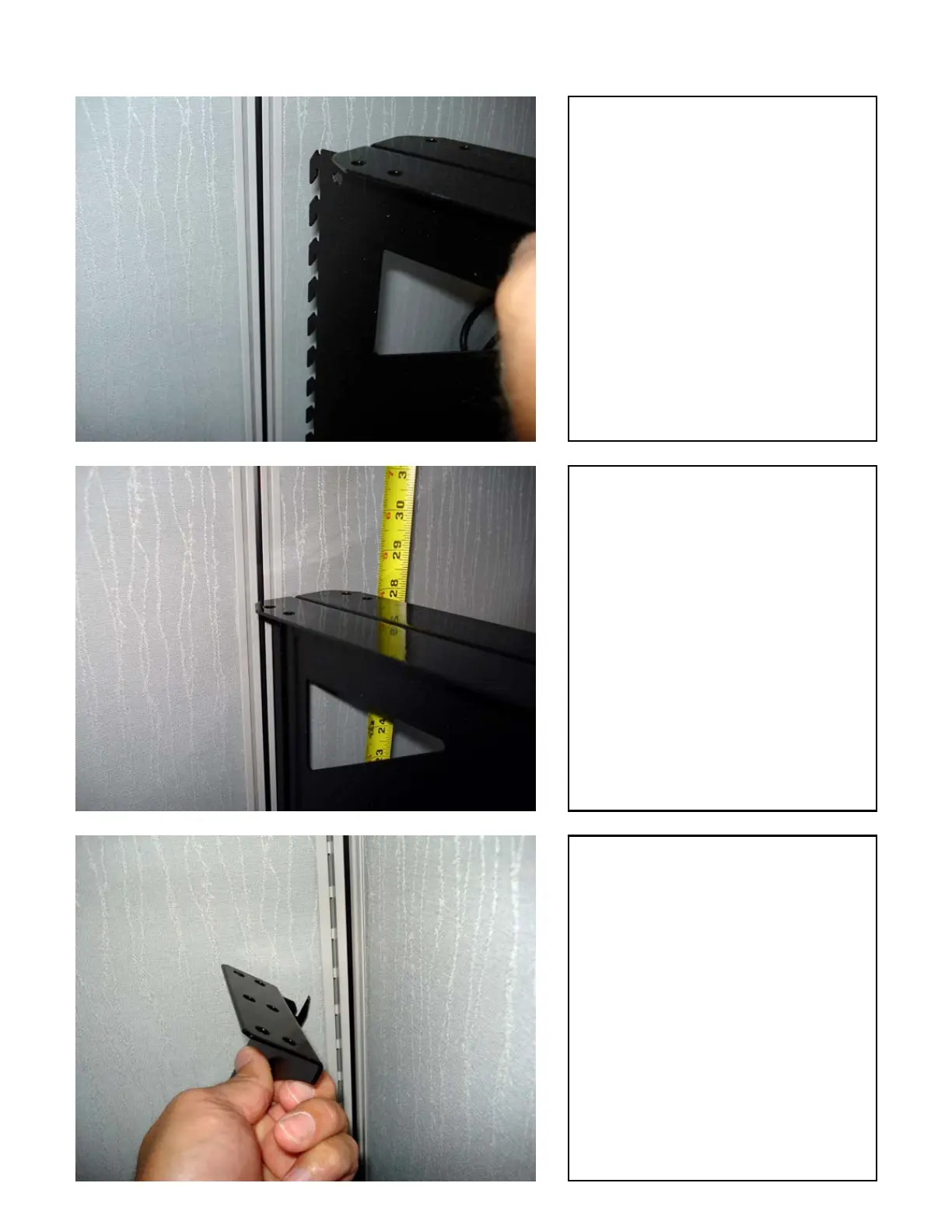

Shared cantilevers are used to
support panel hung
worksurfaces at a seam
between two panels.
Cantilevers are inserted into
the hanger frame slot down at
an angle matching the teeth.
Push down on
cantlilever and make sure
cantilever is fully engaged.
NOTE – failure to engage
cantilever properly can lead to
injury.
Cantilevers should be hung
between 27 ¾ and 29 inches
to achieve industry standard
worksurface height and match
structural pedestal heights.
Side support rear brackets
provide direct support for
worksurfaces at the rear of
corner worksurfaces or along
worksurface sides.
Insert hook tooth at top of
bracket into hanger frame...
