Electrical – Receptacle Mount Base In-feed

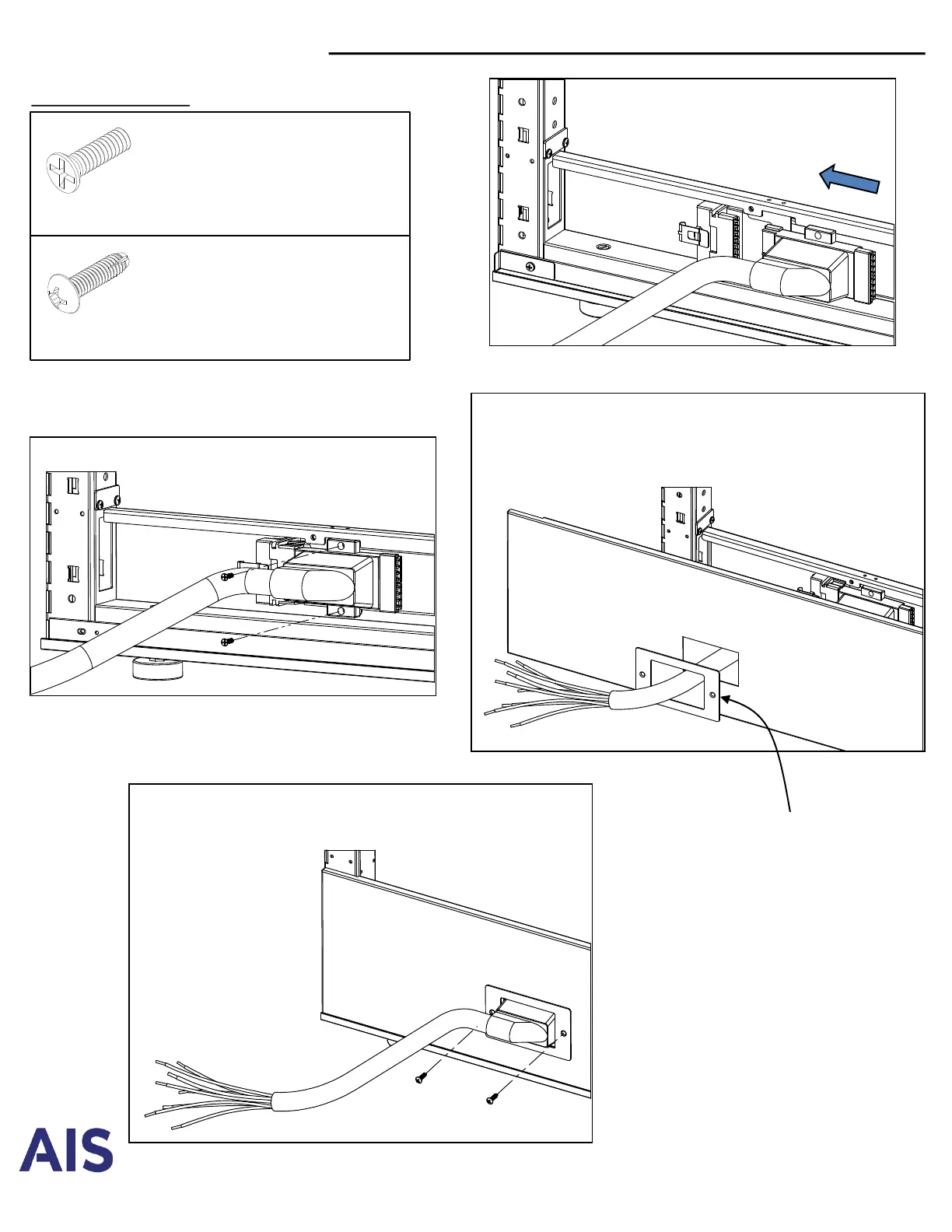

1. Install Base In-feed to Powerway
(left hand install shown)
Required hardware:
#10 -24 x 5/8” Round Head
Thread-Cutting Screw
#RE-HS1058F
Use philips drive #2
2 places
#6-32 x ½” Flat Head
Machine Screw
#RE-MXHS632
Use philips drive #2
1 place
2. Install (2) #10-24 x 5/8” Pan
Head Screw
3. End of Base In-feed MUST be run through
electrical tile and shroud BEFORE hardwiring
to building power
4. Install (2) #6-32 x ½” Flat Head Screws
Receptacle Base In-Feed
Shroud
#RP-MXBIFS
