AIS Matrix - Transaction Tops and Panel Top Storage

12345
Matrix 2019
www.ais-inc.comwww.ais-inc.com
15
P-MXINSTRUCT01 Rev 07.29.2020
Transaction Tops and Panel Top
Storage Elements
Required hardware:
#5/16-24 Hex Flange Nut
#RS-HNZFS51624
Use 5/8” hex drive
2 places
#5/16-24 x 2 ¾” Socket Head Screw
#RH-SHBF5162434
Use with 5/32 allen wrench
2 places
#9 x 7/8” Flat Head Wood Screw
#RH-QS0978
Use philips drive #2
16 places
#10 x 3/4” Flat Head Wood Screw
#RH-WSFP1034
Use philips drive #2
16 places

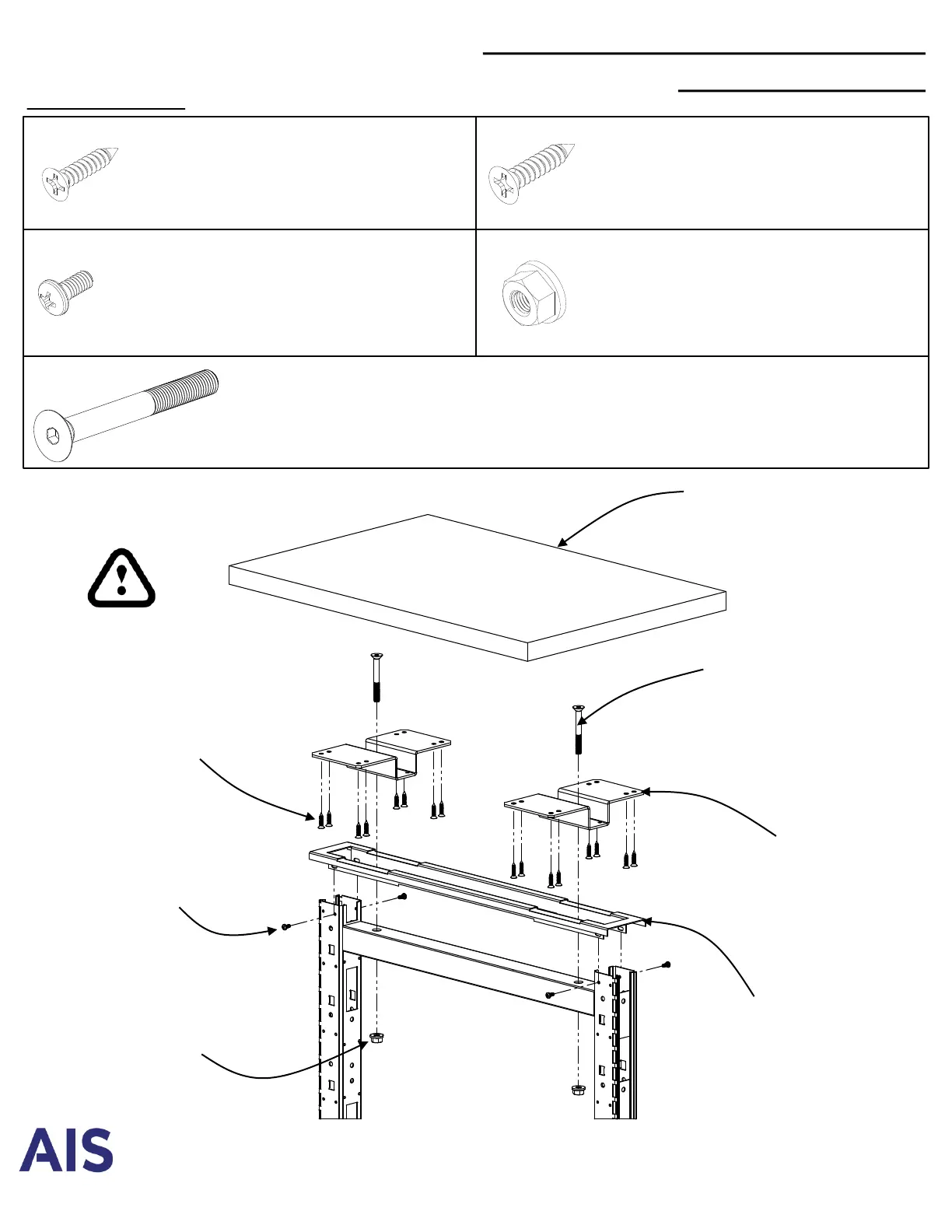

Transaction Top (shown)
or
Panel Top Storage Element
For transaction top use:
#9 x 7/8” Flat Head Wood Screw
16 places
For panel top storage use:
#10 x ¾” Flat Head Wood Screw
16 places
#5/16-24 x 2 ¾”
Socket Head Screw
2 places
#5/16-24
Hex Flange Nut
2 places
Shelf Support
Bracket
#RP-M3SSB
2 places
Shelf Support
Trim
#RP-M4SSTxx
#8-32 x 5/16” Pan Head Machine Screw
#RP-MXHS83214
Use philips drive #2
4 places
#8-32 x 5/16”
Pan Head Machine Screw
4 places
