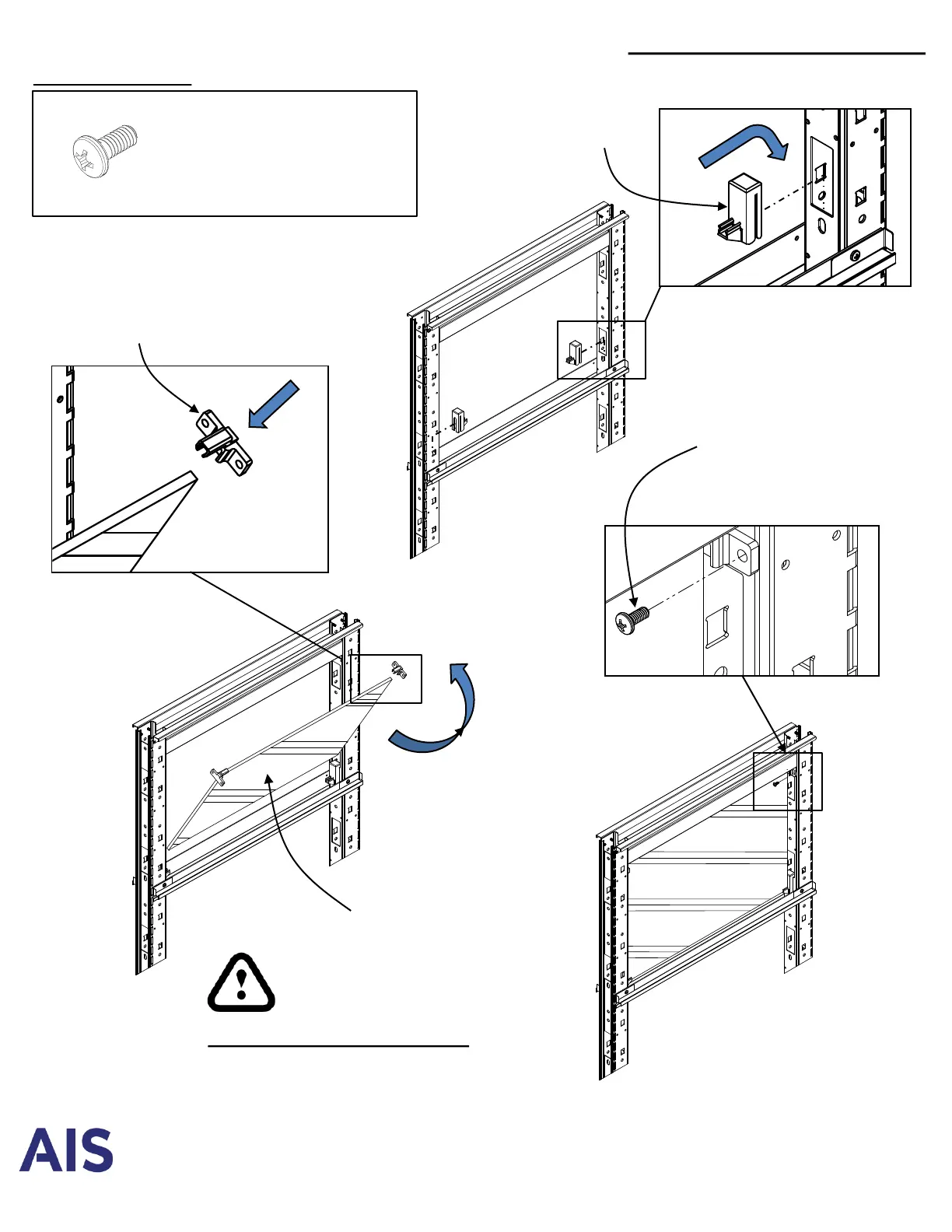

Top Glass Insert Tiles
Required hardware:
#8-32 x 5/16” Pan Head
Machine Screw
#RP-MXHS83214
Use philips drive #2
4 places
Glass Holder Mid Bottom
#RP-M2GHMIDBOT
Hooks onto electrical
chase hole
Glass Holder Top
#RP-M2GHTOP
IMPORTANT INSTRUCTIONS:
• Install glass into the channels of both
bottom holders
• Then, rotate up to align the top holders
to the frame.
• Secure with #8-32 x 5/16” screws.
#8-32 x 5/16”
Pan Head Machine Screw
Philips Drive #2
4 places
Mid Glass Insert
Height = Nominal minus 3.5”
