AIS Matrix - Bottom Glass Insert Tiles; Installing Bottom Glass Insert Tiles

12345
Matrix 2019
www.ais-inc.comwww.ais-inc.com
18
P-MXINSTRUCT01 Rev 07.29.2020

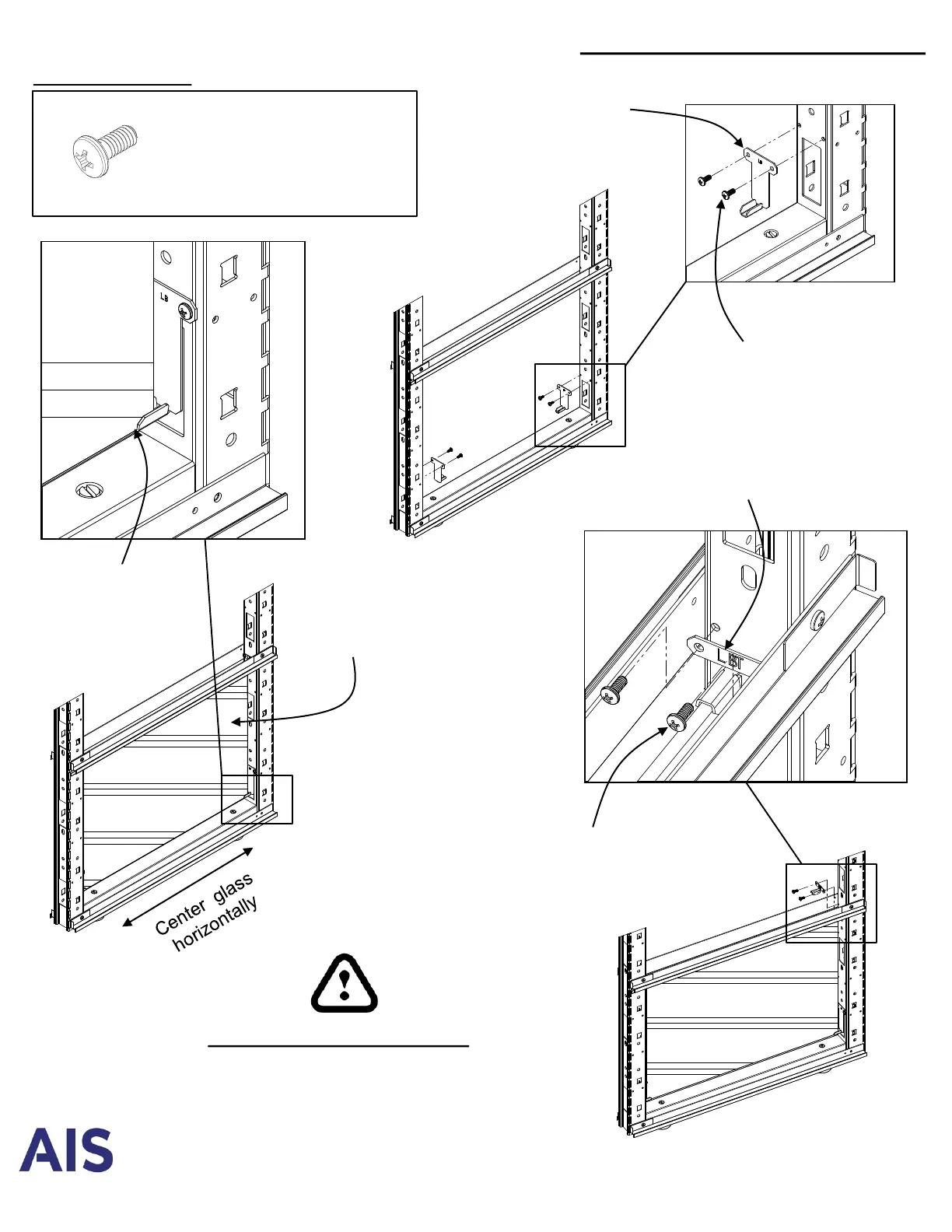

Bottom Glass Insert Tiles
Required hardware:
#8-32 x 5/16” Pan Head
Machine Screw
#RP-MXHS83214
Use philips drive #2
4 places
Glass Holder Lower
Bottom
#RP-M2GHLB-A
IMPORTANT INSTRUCTIONS:
• Install glass into the channels of both
bottom holders
• Then, align the top holders to the frame.
• Secure with #8-32 x 5/16” screws.
#8-32 x 5/16”
Pan Head Machine Screw
Philips Drive #2
4 places
Seat glass in
bottom holder
Glass Holder Top Bottom
#RP-M2GHLOWBOT
#8-32 x 5/16”
Pan Head Machine Screw
Philips Drive #2
4 places
Bottom Glass Insert
Height= Nominal minus 2 11/16”
