Monolithic Laminate Tiles

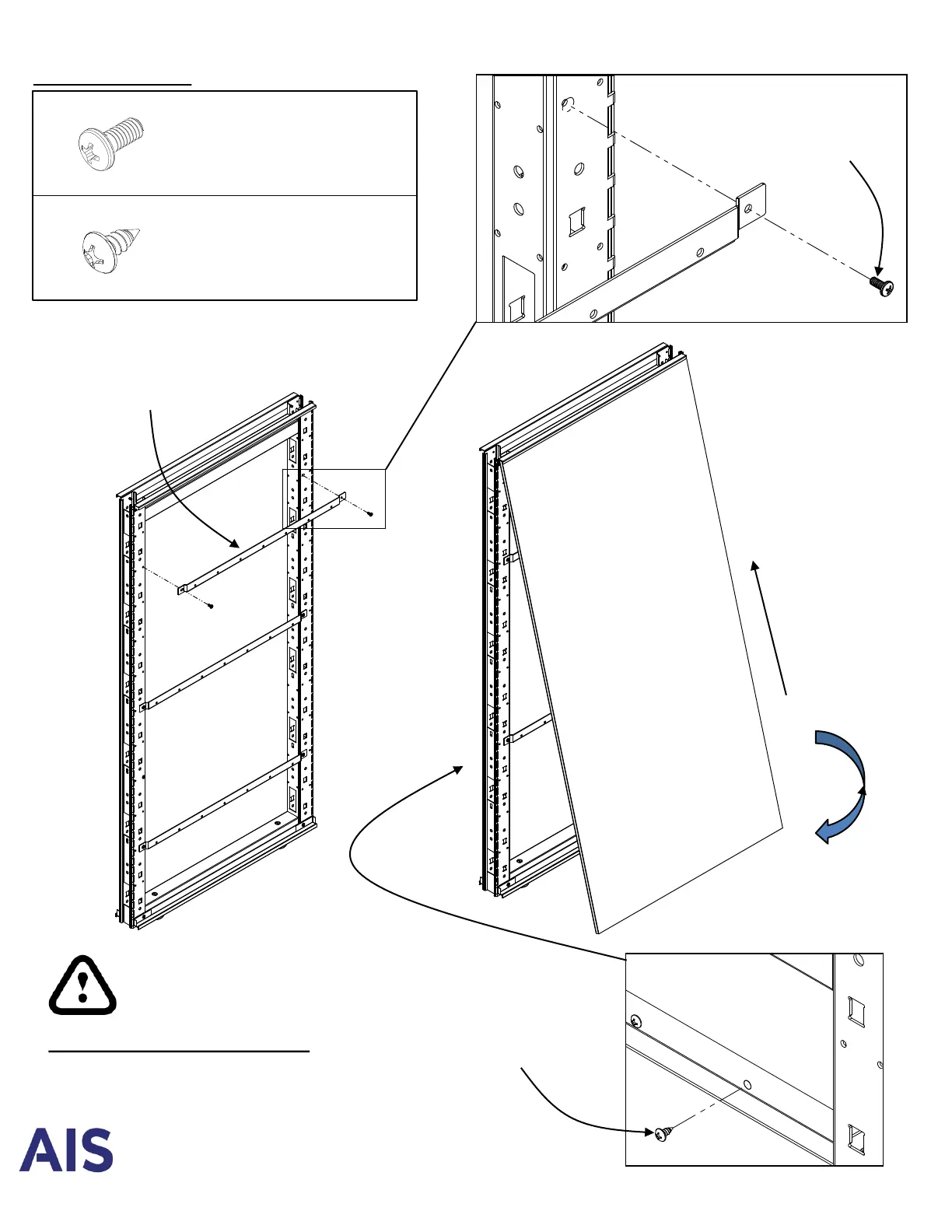

Required hardware:
#8-32 x 5/16” Pan Head
Machine Screw
#RP-MXHS83214
Use philips drive #2
#6 x 5/16” Pan Head
Drilling Screw
#RH-90190A145
Use philips drive #2
#8-32 x 5/16”
Pan Head Machine Screw
2 places per Tile Backer
Laminate Tile Backer
Size 32H-48H = Qty 2
Size 49H+ = Qty 3
IN / DOWN
UP
IMPORTANT INSTRUCTIONS:
• Monolithic Laminate Tiles can only be
installed on one side of the Matrix frame.
#6 x 5/16” Pan Head
Drilling Screw
Screw into back side of
Laminate Tile
REAR VIEW
