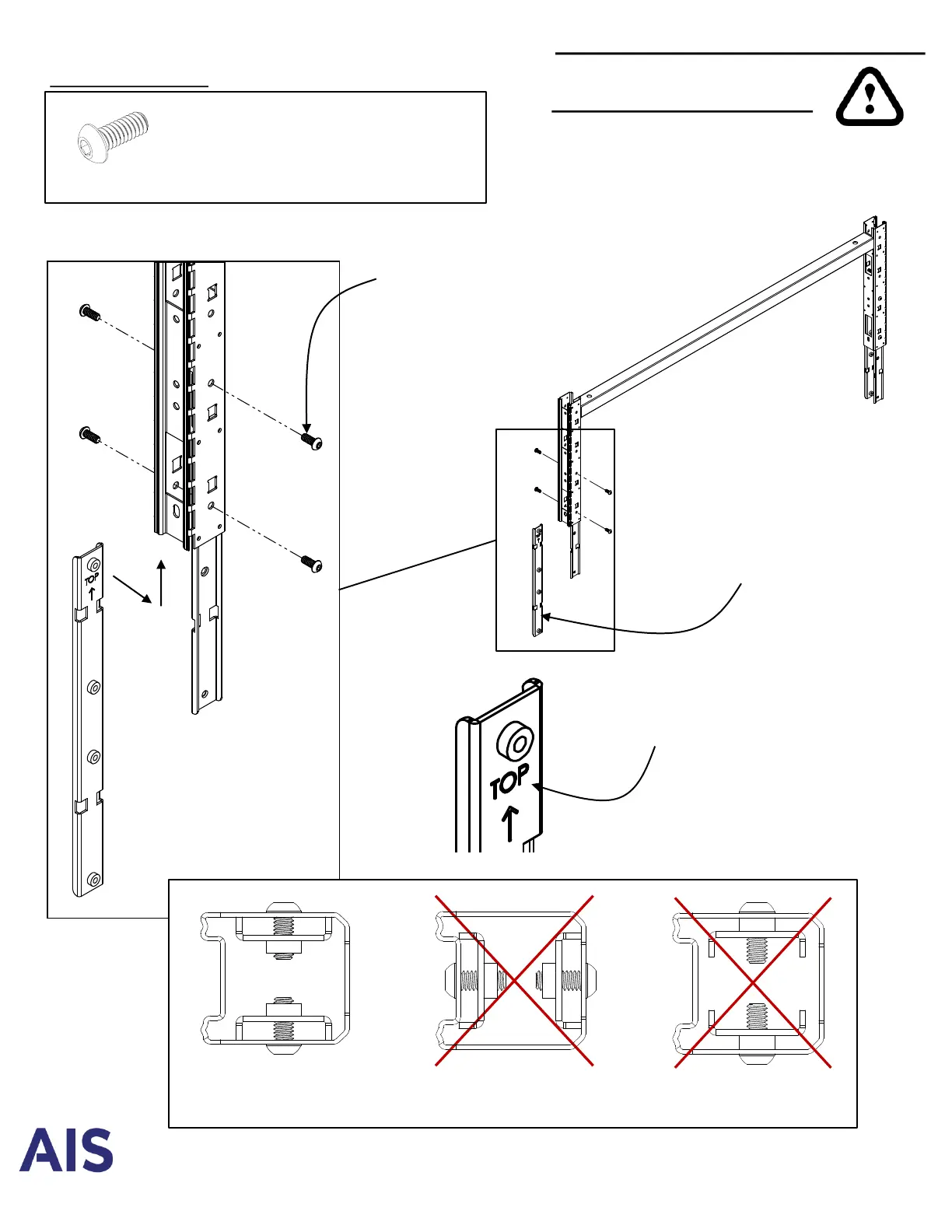

Stack-On Frame Assembly
P-MXINSTRUCT01 Rev 07.29.2020
Required hardware:
¼-20 x 5/8” Button Head Screw
#RP-M2BOLT3
Use with 5/32 allen wrench
16 places
Bayonnett
#RP-M2VSB-C
4 places
“TOP” goes up into
Stack Frame
¼-20 x 5/8” Button Head Screw
8 places
IMPORTANT INSTRUCTIONS:
• Make sure screws are properly threaded
into bayonnett before tightening.
INCORRECT
CORRECT
INCORRECT
INCORRECT
