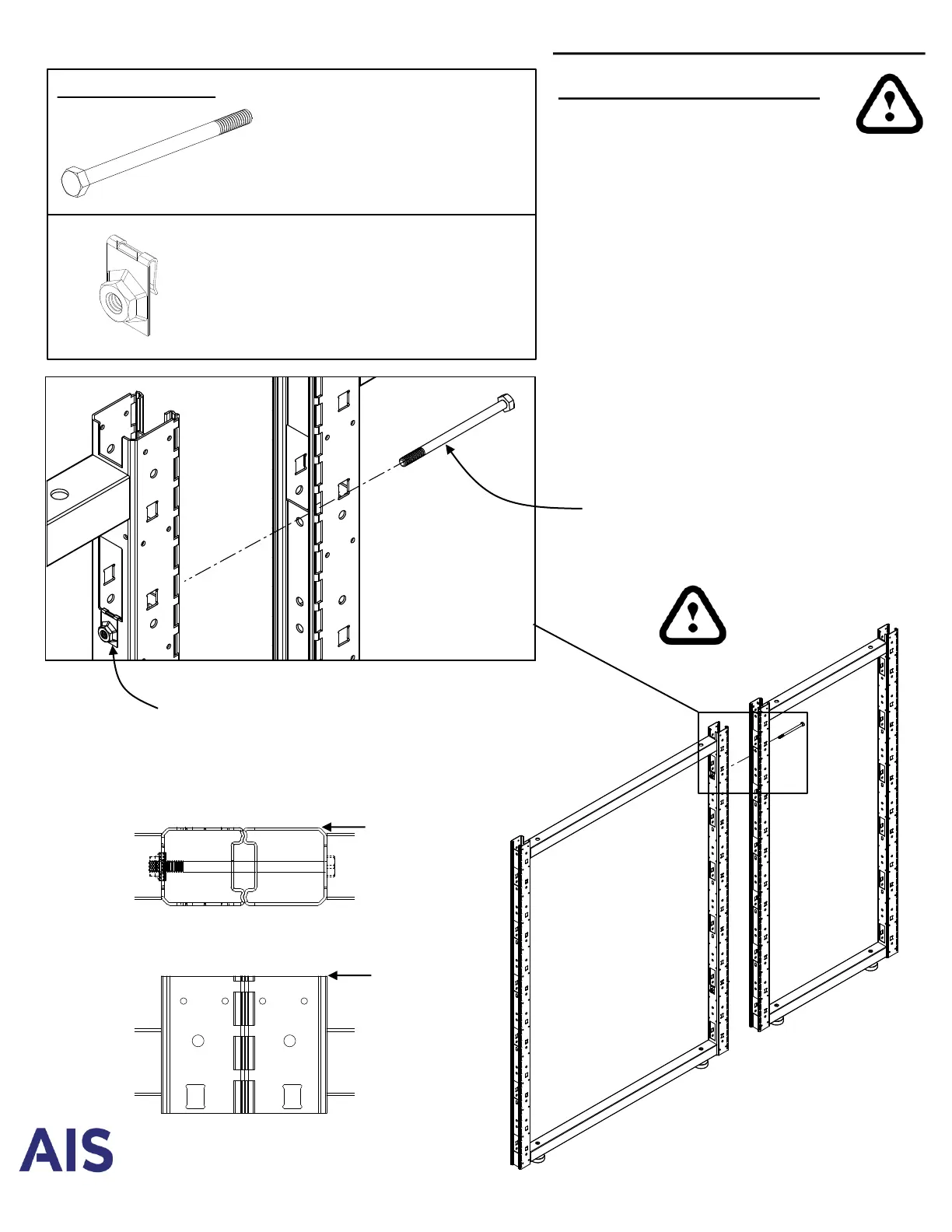

Straight Frame Connection
P-MXINSTRUCT01 Rev 07.29.2020
¼-20 Tinnerman Nut
May have moved during shipping.
To re-center, briefly insert #2
philips screw driver through frame
hole into the tinnerman nut.
IMPORTANT INSTRUCTIONS:
• Line up frames, adjust glides as
necessary to ensure frames are
approximately the same height.
• Place first bolt at top of frame, below first
electrical chase hole. This hole is round
and will align frames vertically. All other
bolt locations are slots.
• Thread all bolts loosely, making sure
bolts are properly threaded to prevent
cross-stripping. Tighten top bolt first,
then tighten all remaining bolts to approx.
100 inch lbs torque, or using a 12 volt
drill on medium torque.
Required hardware:
¼-20 x 4” Hex Bolt
#RP-M2 BOLT2
82H Frame = 5 bolts
50-66H Frame = 4 bolts
34-42H Frame = 3 bolts
Use 7/16” magnetic hex drive
¼-20 Tinnerman Nut
#RS-HNC33892
(Factory installed on one side only.
Installers may be required to remove if
connecting to 2-way, 3-way or
4-way connector)
¼-20 x 4” Hex Bolt
First bolt must be installed at
top of frame to ensure proper
vertical alignment
Top View
Side View
Flush
Flush
