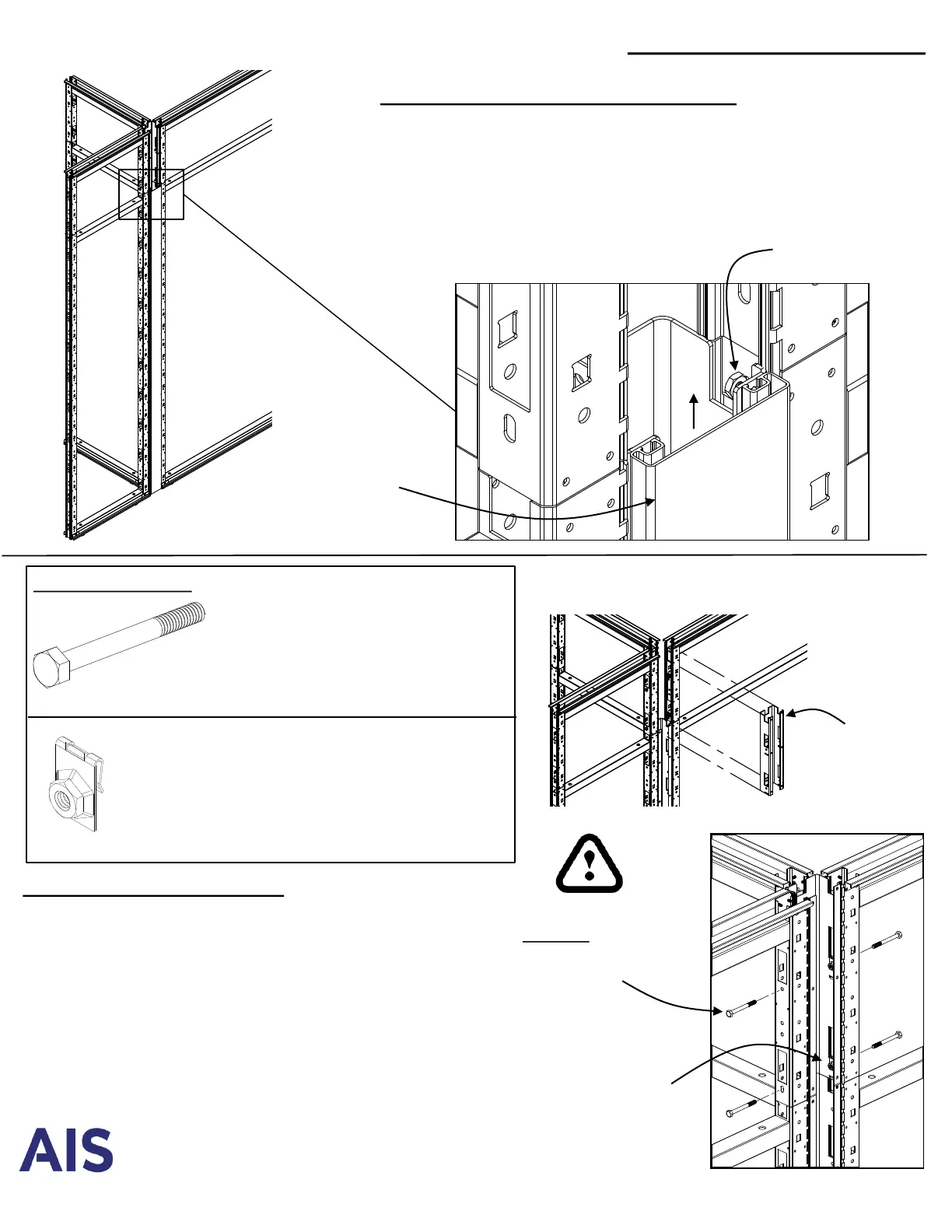

Stack-On Connectors
#10-32 Hex Nut
Remove Base Connector Vertical Cover:
1. Remove and save #10-32 Hex Nuts and
Bolts at top of Connector (2 places)
2. Slide Vertical Cover up approximately ¾”
to release it from the bottom tabs.
Up
Required hardware:
¼-20 x 2 ¼” Hex Bolt
#RP-M2BOLT1
Use 7/16” magnetic hex drive
2-way Connection = 4 bolts
3-way Connection = 6 bolts
4-way Connection = 8 bolts
¼-20 Tinnerman Nut
#RS-HNC33892
(Factory installed, on one side of
frame. Installers may be required to
remove from frames if connecting to
2-way, 3-way or 4-way connector)
Stack-On
Connector
¼-20 Tinnerman Nut
May have moved during shipping.
To re-center, briefly insert
#2 philips screw driver through
connector hole into the
tinnerman nut.
¼-20 x 2 ¼” Hex Bolt
First bolt must be installed at
top of frame to ensure proper
vertical alignment
IMPORTANT INSTRUCTIONS:
• Place first bolt at top of frame, below
first electrical chase hole. This hole is
round and will align frames vertically. All
other bolt locations are slots.
• Thread all bolts loosely, making sure
bolts are properly threaded to prevent
cross-stripping. Tighten top bolt first,
then tighten all remaining bolts to
approx. 100 inch lbs torque, or using a
12 volt drill on medium torque.
Lift off
Vertical Cover
