Stack-On Connectors Cont.
Required hardware:
#10-32 x 3/8” Hex Head Bolt
#RP-MXCONBOLT
Use 5/16” hex drive
#10-32 Hex Nut
#RP-MXCONNNUT
Use 3/8” hex drive

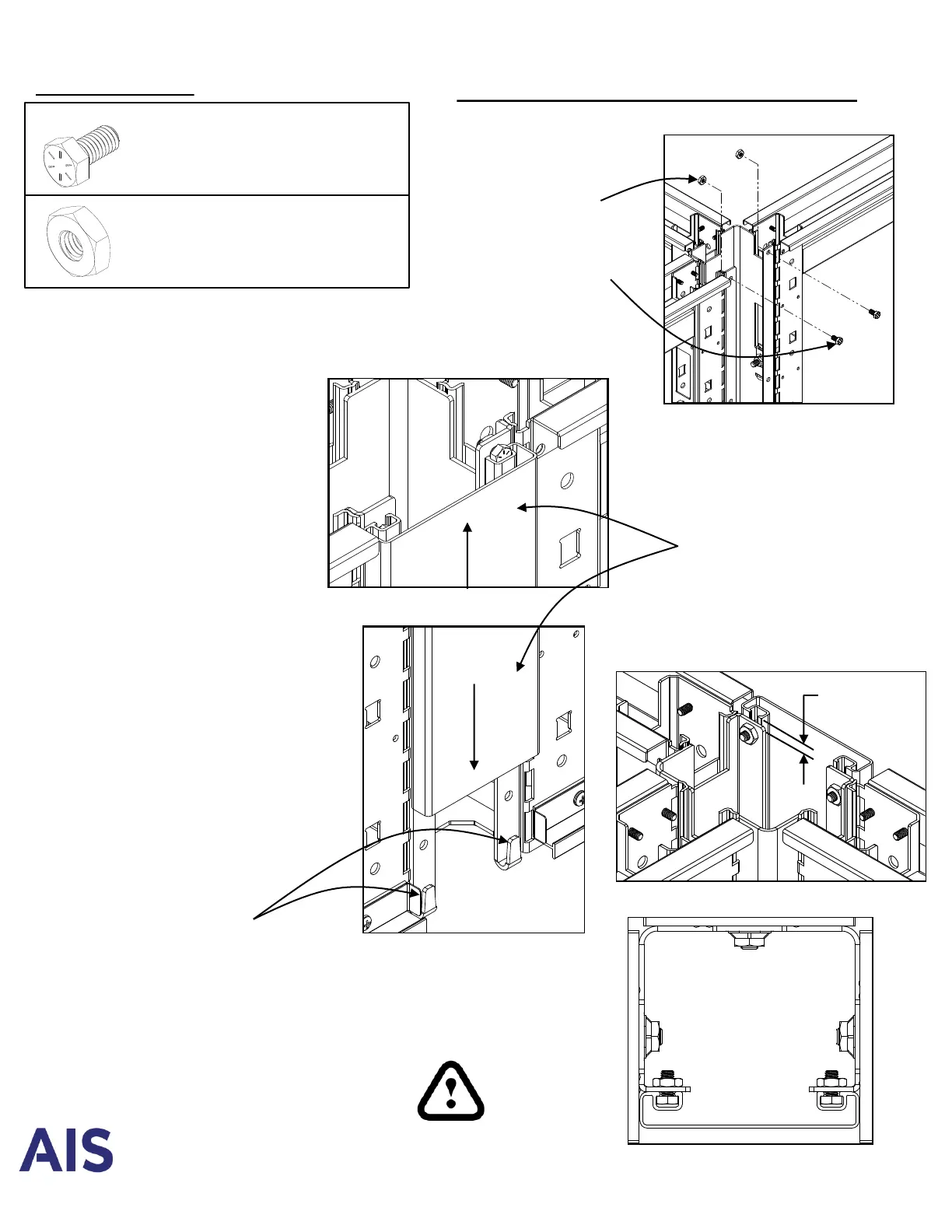

1. LOOSELY re-install
#10-32 Hex Nut and
Bolts onto Stack-On
Connector
Vertical Cover
Install (taller) Base Connector Vertical Cover:
2. Slide Vertical Cover up,
making sure to capture Hex
Bolt heads on the Connector
Top, into the grooves on the
vertical cover.
¼”
3. Slide the Vertical Cover back
down, making sure to capture the
tabs on the bottom of the
Connector. Vertical Cover must be
¼” from top of Connector
4. Tighten #10-32 Hex Nuts to Secure
Vertical Cover. DO NOT over tighten.
Tabs
