P-MXINSTRUCT01 Rev 07.29.2020

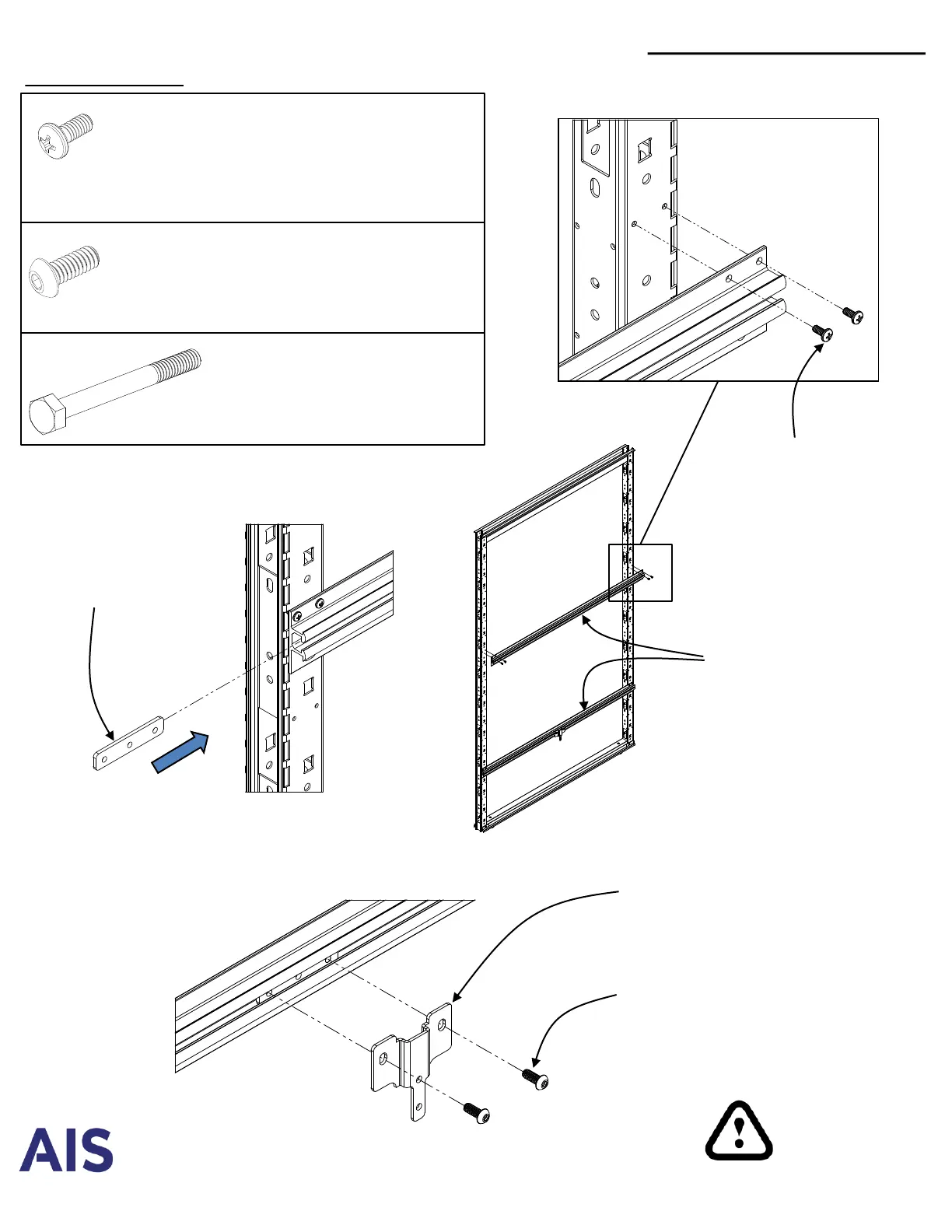

Off-Modular Frames
Required hardware:
#8-32 x 5/16” Pan Head Machine Screw
#RP-MXHS83214
Use philips drive #2
4 places
#8-32 x 5/16” Pan Head
4 places
Off-Modular Rail
Off-Modular Slide Plate
#RP-M2OMSP
Slide into Rail channel
¼-20 x 2” Hex Bolt
#RP-M2BOLT1
Use 7/16” magnetic hex drive
2 places
¼-20 x 5/8” Button Head Screw
#RP-M2BOLT3
Use with 5/32 allen wrench
2 places
Off-Modular Panel Bracket
#RP-M2OMMB
¼-20 x 5/8” Button Head Screw
2 places
Make sure bracket is in the
correct location according to plan
before tightening
