13

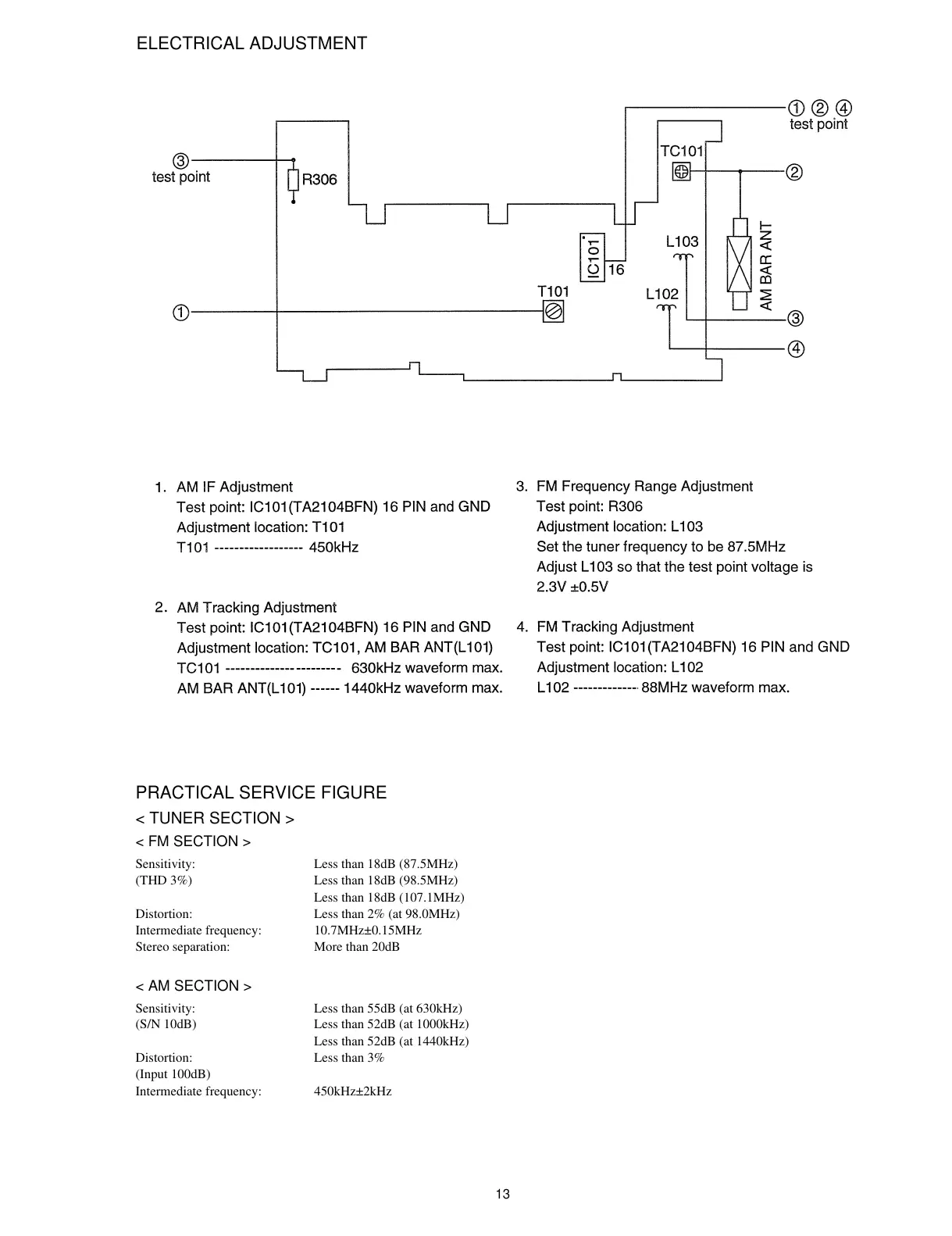

ELECTRICAL ADJUSTMENT
PRACTICAL SERVICE FIGURE
< TUNER SECTION >
< FM SECTION >
Sensitivity: Less than 18dB (87.5MHz)
(THD 3%) Less than 18dB (98.5MHz)
Less than 18dB (107.1MHz)
Distortion: Less than 2% (at 98.0MHz)
Intermediate frequency: 10.7MHz±0.15MHz
Stereo separation: More than 20dB
< AM SECTION >
Sensitivity: Less than 55dB (at 630kHz)
(S/N 10dB) Less than 52dB (at 1000kHz)
Less than 52dB (at 1440kHz)
Distortion: Less than 3%
(Input 100dB)
Intermediate frequency: 450kHz±2kHz
